22 VM1 Vacuum circuit-breaker | Instruction manual 504/05

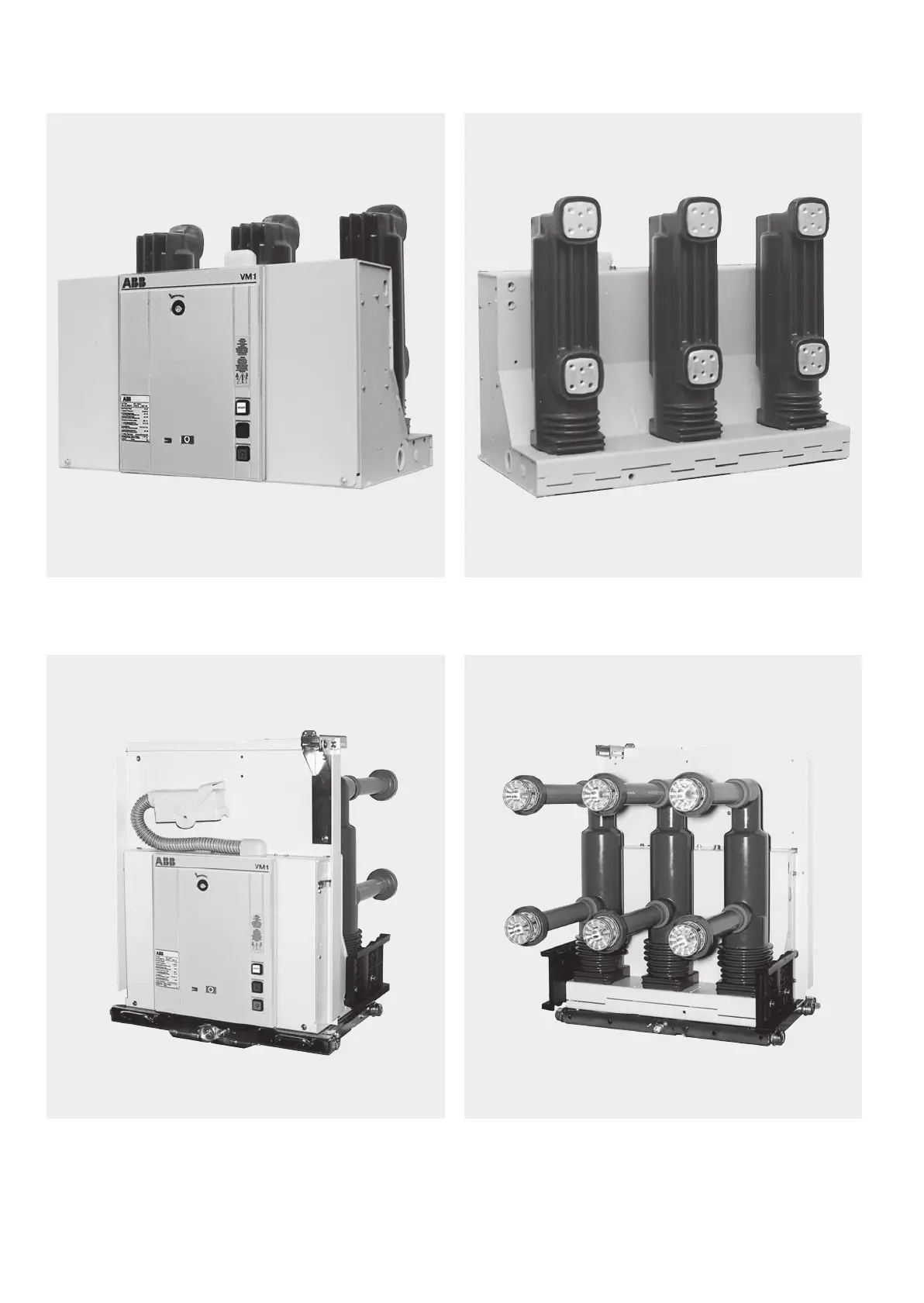

Figure 9/1: Vacuum circuit-breaker, type VM1, high-current, for fixed
installation, 12 kV, 1600...2000 A, 40 kA, mechanism
side.
Figure 9/2: Vacuum circuit-breaker, type VM1, high-current, for fixed
installation, 12 kV, 1600...2000 A, 40 kA, pole side.
Figure 9/3: Vacuum circuit-breaker, type VM1, on withdrawable part,
24 kV, 1250 A, ≤ 25 kA, mechanism side
(use in ZS8.4 only).
Figure 9/4: Vacuum circuit-breaker, type VM1, on withdrawable part,
24 kV, 1250 A, ≤ 25 kA, pole side
(use in ZS8.4 only).
9 Figures
BA 504-05 GB_29102012.indd 22 30.10.12 13:44
