6.8 Setting up the doorbell buttons of the "IP pushbutton outdoor station"
The doorbell buttons of the outdoor station must be assigned to the respective indoor stations
that they are to activate. The happens via the assigning of the physical addresses of the indoor
stations to the respective doorbell button.
1
2

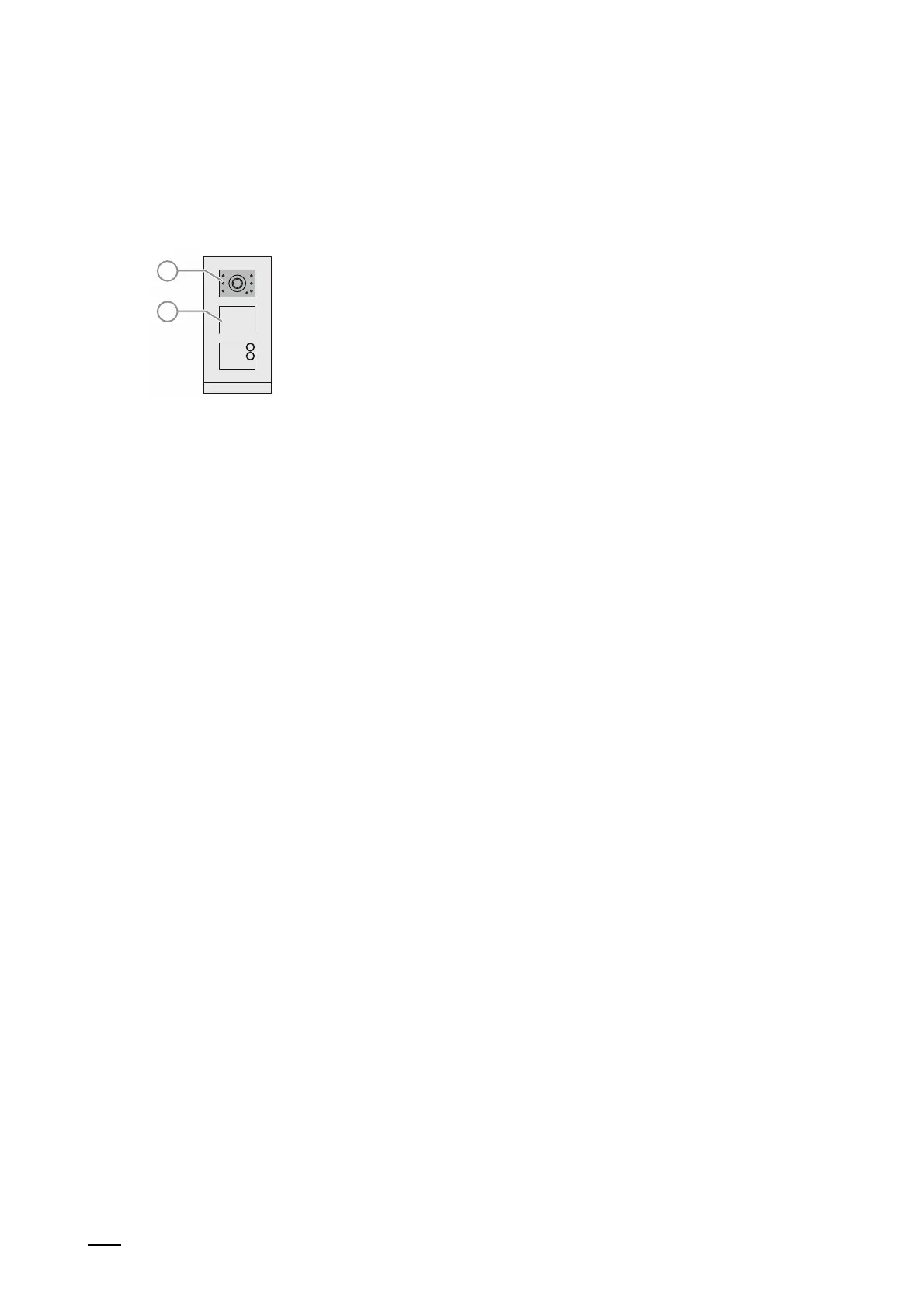

Fig. 98: Outdoor station with buttons: Commissioning mode
Perform the following steps to assemble the doorbell buttons of the device:
1. Boot up the device.
– The device boots up automatically when the power supply is connected.
– If the device is already booted up, briefly interrupt the power supply of the device. The
device reboots.
– The LED icons [1] light up permanently during the automatic boot up.
2. Activating the "Commissioning mode":
– After the LED icons [1] in the camera have stopped being lit up, keep the top doorbell
button pressed (about 11 seconds), until the LED icons [1] light up green.
– In case of several bell spaces, the first doorbell button is located below the audio
shell [2].
– If no entry is made within the next 5 minutes, the device exits the "Commissioning
mode" automatically.
3. Switch to the indoor station.
