ABB Welcome IP User Manual

Connection, installation / mounting
System Manual
│
48
1
2

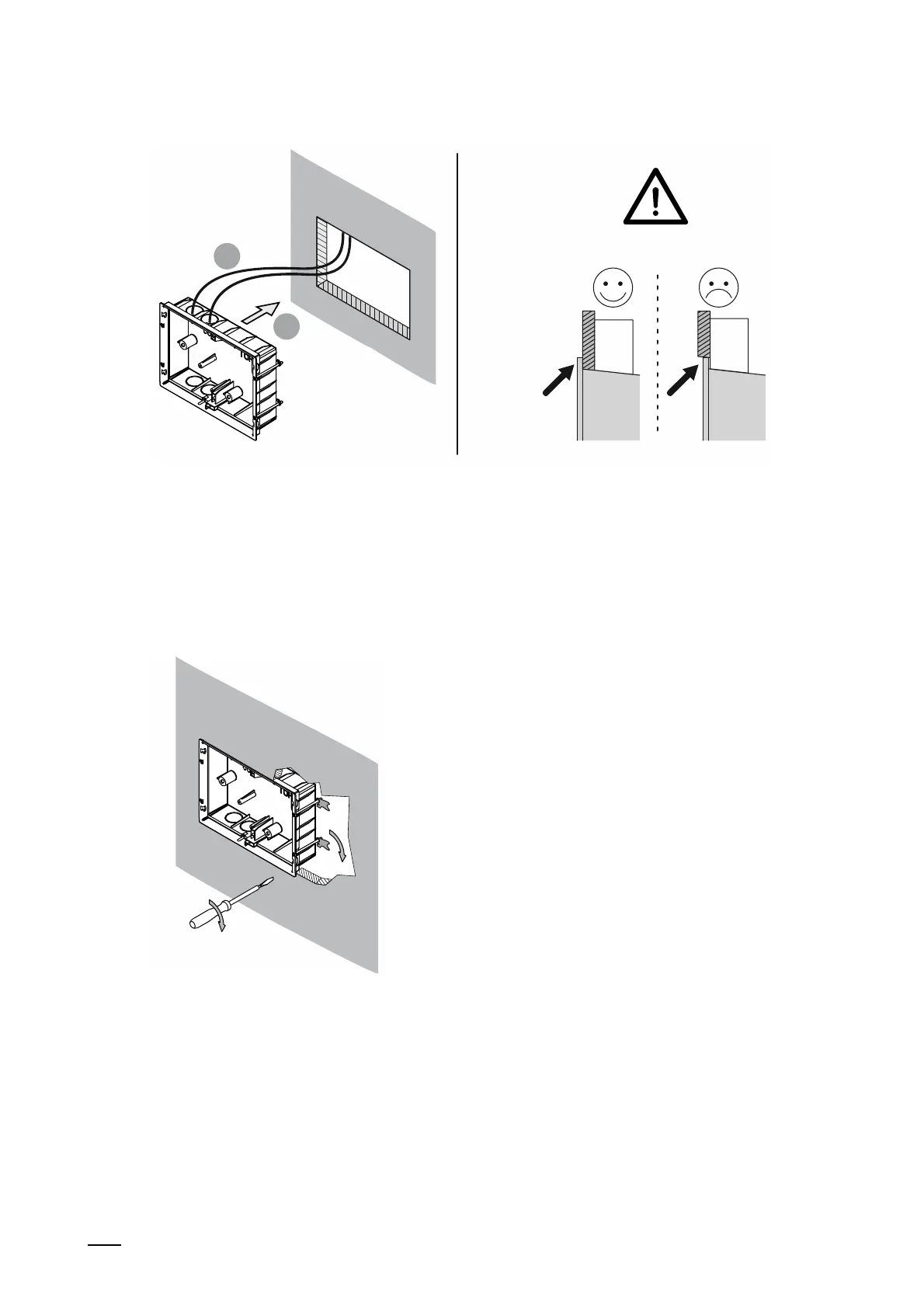

Fig. 28: Mounting installation boxes in hollow wall: Inserting flush-mounted installation box
4. Insert the flush-mounted installation box into the cutout.
– Attention:
Ensure that the encircling "Collar" of the flush-mounted installation box rests on the
facade. The encircling "Collar" of the flush-mounted installation box must not be
submerged in the facade. The device can then not be mounted later.
Fig. 29: Mounting installation boxes in hollow wall: Clamping flush-mounted installation box
5. Tighten the clamps.
– The clamps click automatically into the correct position.
6. Mounting the IP touch indoor station.
– see chapter 5.6.1 “Wall installation in installation boxes“ on page 49.
