Machine Maintenance Procedures 3-39
Mainboard Installation 0
1. Install mainboard (A) on support plate. (Figure 3-48)
2. Install and secure screws (G) to bezel. (Figure 3-51 through Figure 3-53)
3. Connect touch screen FPC (E) to mainboard connector (F). (Figure 3-50)
4. Install tape (D) securing touch screen to mainboard. (Figure 3-49)
5. Connect LVDS cable (B) to mainboard connector (C).
6. Install speaker modules.
7. Install IO Board FPC.

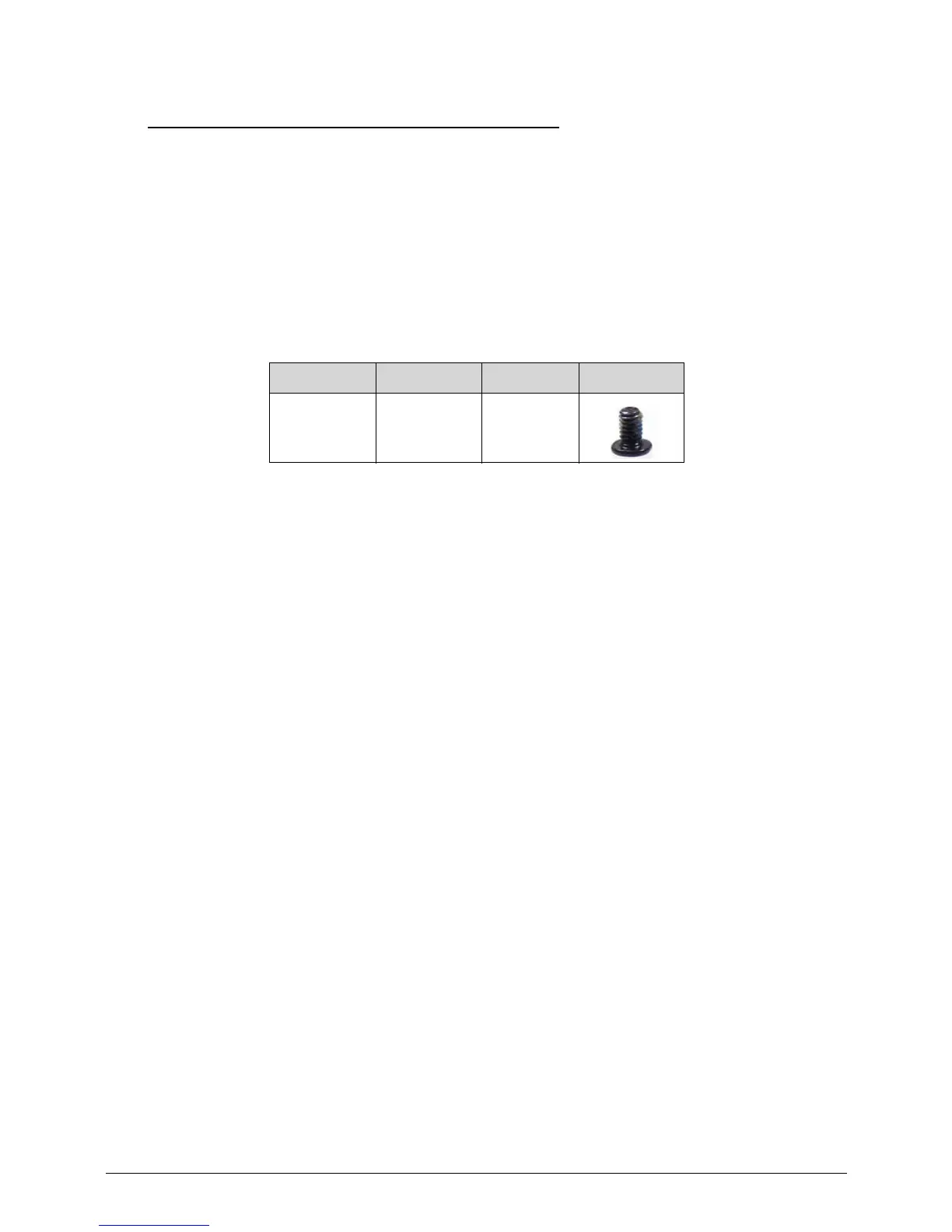

ID Size Quantity Screw Type
G M2.0x3.0 4

Acer A100 Specifications

General

Display	7-inch TFT LCD, 1024x600 resolution
RAM	1 GB
Internal Storage	8GB or 16GB
Rear Camera	5 MP
Front Camera	2 MP
Dimensions	195 x 117 x 13.1 mm
Weight	410 g
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 2.1, microUSB 2.0
Processor	NVIDIA Tegra 2 dual-core 1GHz
Operating System	Android 3.2 (Honeycomb), upgradable to 4.0 (Ice Cream Sandwich)
Battery	1530 mAh
