S4
S6
S5
S3
S2
S1
Use a Phillips-head screwdriver screwed the
No.1~3 screws till that interface board and bracket
chassis base firmly attached.
(No1~3 screw size=M3x6; Torque=9~10KGFxCM).
Use a Phillips-head screwdriver screwed the
No.1~4 screws till that power board and bracket
chassis base firmly attached.(No1~3 screw
size=M3x6; No4 screw size=M4x8;
Torque=7~9KGFxCM).
Take a bracket chassis base on a protective
cushion and stick an insulator on the specific
position, take a power board and turn it over. Then,
put it on the specific positions of bracket chassis
base.
Connect the cable between power board(P802)
and interface board (P301)
Connect the function key cable(P601) into interface
board(P306)
Connect the FFC cable into interface board
1
2
3

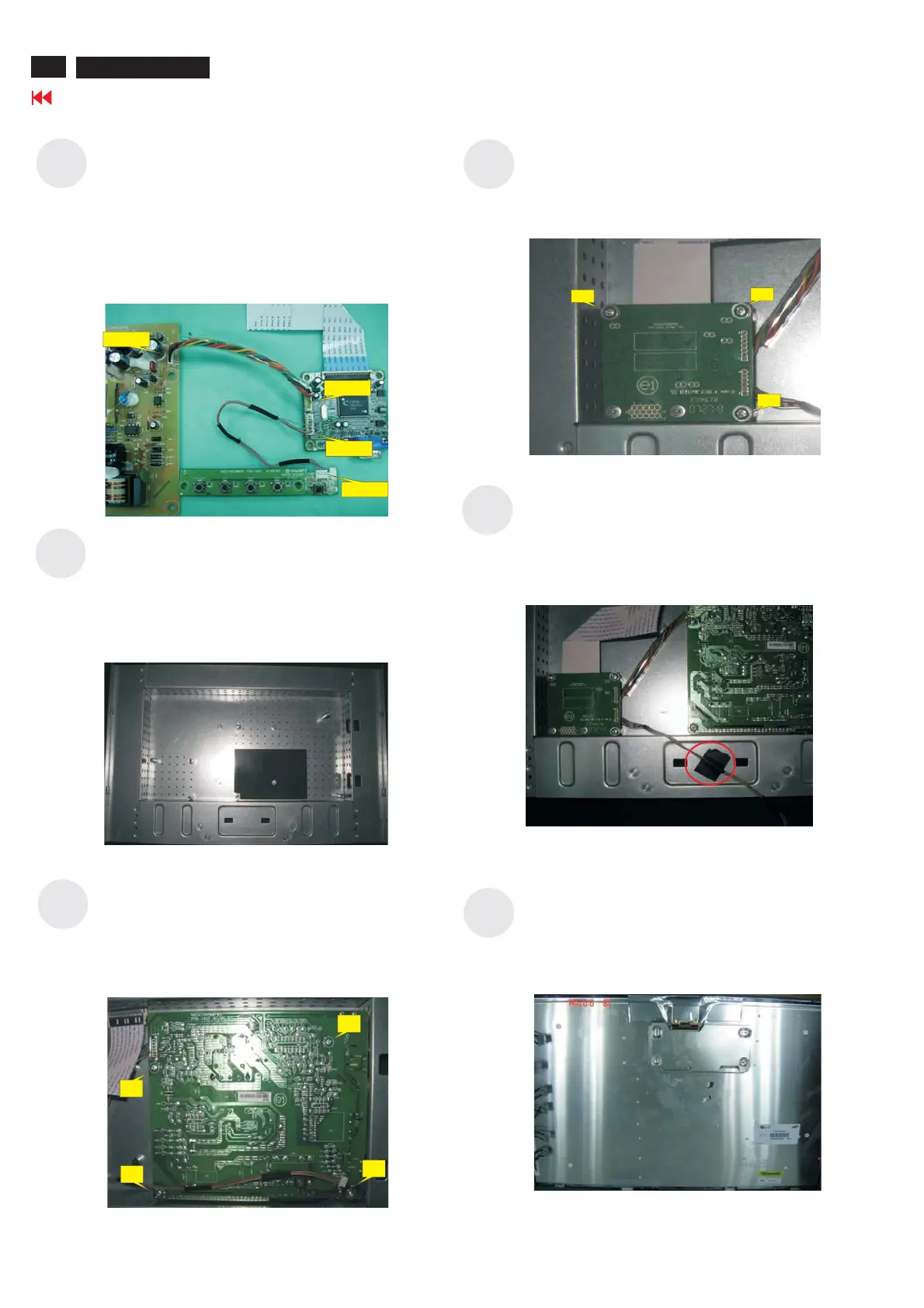

4.1 Assembly procedures:
4. Assembly and Disassembly Procedures
1
2
3
4
P301
P601
P802
P306
Fix the function key cable with a PVC tape
Connect the FFC cable to the connector of the LCD
panel.
12
