Acer AL1516W User Manual

OK
NG

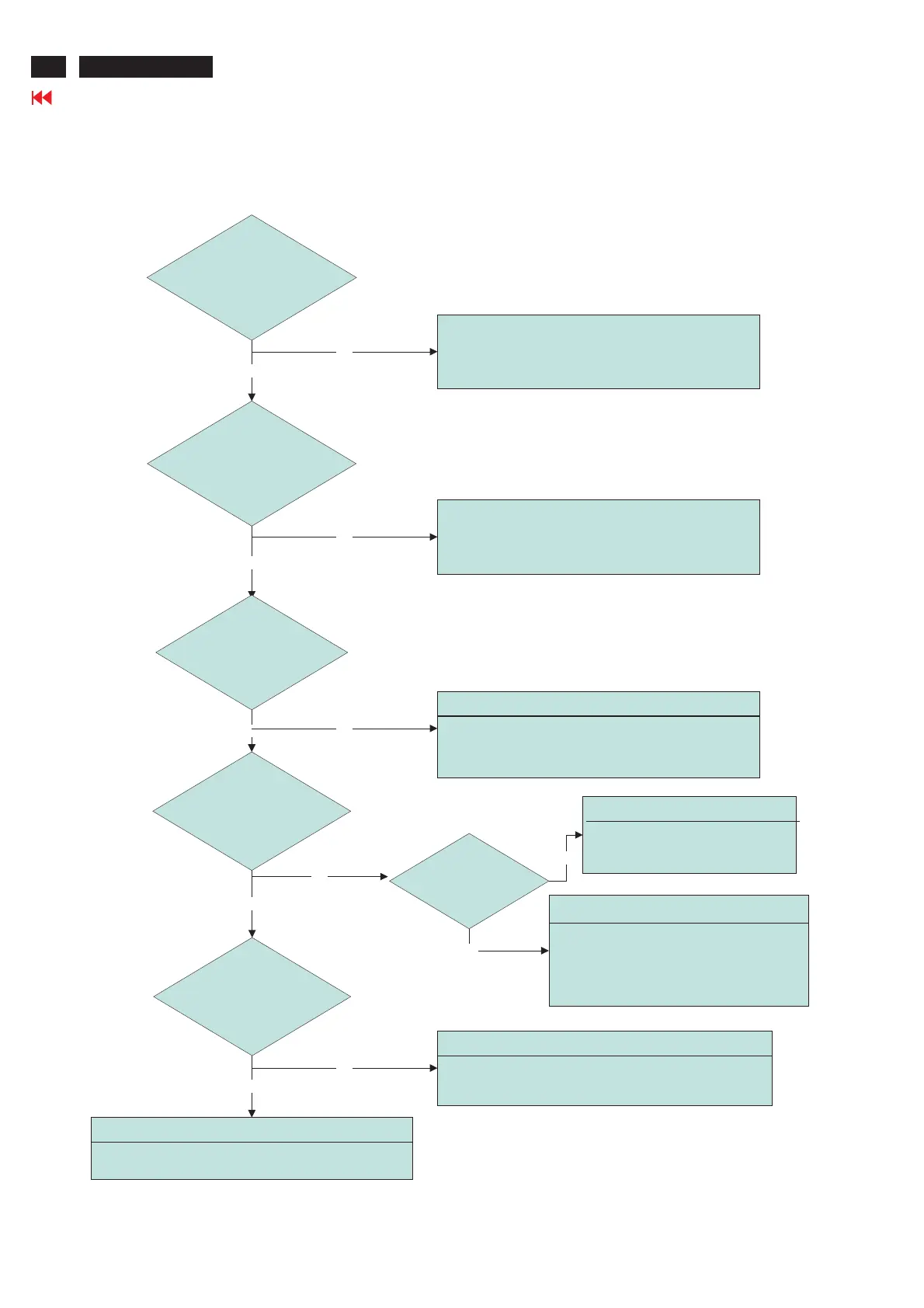

1) Power wire disconnection
2) Power board is failure
3) Checking FB311 and FB315
OK
NG Proceed " Checking the DC/DC converter circuit" section.
OK
NG
Failure Point
1) Printed wire broke between X301 and I305 pin96, pin97.
2) C379, C380 is short or open.
3) X301 failure.
OK
NG
OK
NG
Failure Point
1) Printed wire broke between I305 pin37, pin38, pin39, pin40 and
I306 pin1, pin2, pin5, pin6.
2) I306 failure.
Failure Point
I306 failure.
Failure Point
1) Printer wire broke between I305 pin84
and I309 pin2
NG
OK
Failure Point
1) Printer wire broke between I305 pin84 and I309
pin2.
2) I309 is failure
3) I305 is failure
Check +3.3V supply on I305 pin8,
pin14, pin16, pin24 , pin32, pin49,
pin56, pin75, pin98
Check +1.8V supply on I305 pin
51, 66, 82, 34.
Check X301 14.318MHz clock
input to I305 pin96 and pin97 at
TTL level.
Check I305 pin 84 HWRESET
signal is low level at normal
operation.
Check if I309 pin2 is low.
Check I305 pin37, pin38, pin39,
pin40 SPI signal
(Same as the IIC signal).
