1.1 SCOPE
This document defines the design and performance
requirements for an 15” inch diagonal , flat panel monitor .
The display element shall be a 1280x800 resolution
TFT-LCD (Thin Film Transistor Liquid Crystal
Display).262K-color(AU),images are displayed on the
panel.Video input signals are analog RGB (0.7Vp-p).
When the system is powered-on , previously stored
screen parameters for a pre-defined mode will be
recalled if the operating mode is one of stored in
memory(8factory,8userstiming).Thismonitor
operates normal by non-interlaced mode. DDC
(Display Data Channel) function is DDC2Bi compliance
Power saving function complies with the DPMS
(Display Power Management Signaling) standard.
The LCD monitor consists of an interface board , a power board
, a function key board and two speaker (1W)(with audio)
The interface board will house the flat panel control logic ,
brightness control logic, audio function control (option), key
function control, DDC and DC to DC conversion to supply the
appropriate power to the whole board and LCD flat panel , and
transmitting LVDS signals into LCD flat panel module to drive
the LCD display circuit .
The power board will support main power DC 3.3V to interface
board, and drive the two CCFLs (Cold Cathode Fluorescent
Tube).The interface board provides the power ON / OFF control
over the whole monitor and control for DPMS LED indicator to
function key board.
1.2 GENERAL REQUIREMENTS
1.2.1 Test Condition
Brightness level & contrast level max. Full white
pattern test mode following spec. Warm up more than
1 hr, ambient light < 10 Lux , Luminance meter CA110
or BM7 or same equipment .
1.2.2 Test Equipment
The reference signal source is a calibrated Chroma
2135 video generator or higher.The use of other
signal generators during qualification and production
is acceptable provided the product complies with this
specification.
1.3 ELECTRICAL

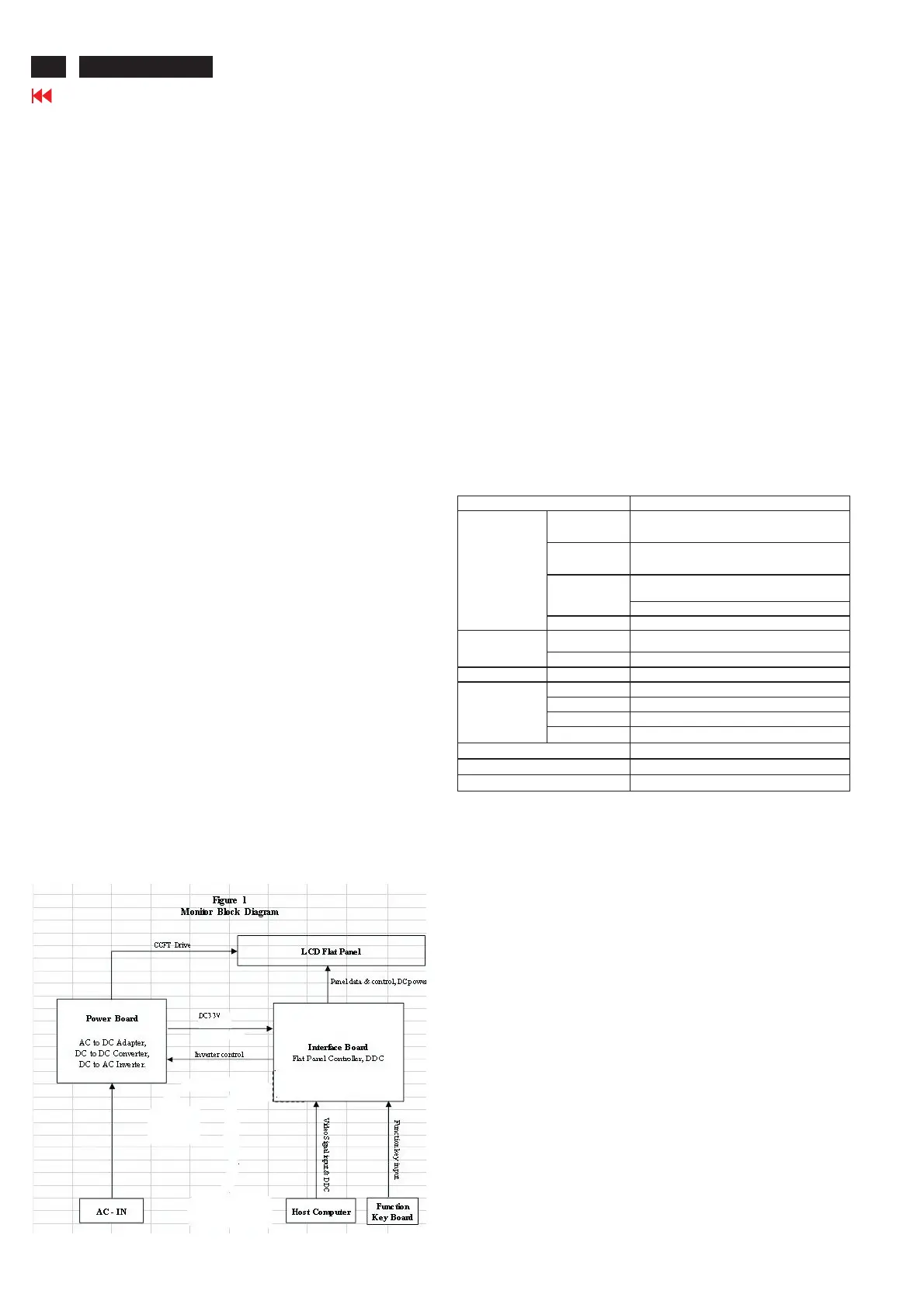

This section describes the electricalrequirement of the
monitor.The block diagram in Figure1 illustrates the various
electrical sub-system.
1.3.1 Interface Connectors
1.3.1.1 Power Connector and Cables
The AC input shall have an IEC/CEE-22 type male
power receptacle for connection to mains power.
The power cord shall be with length of 1.8+/-0.005
meters.
1.3.1.2 Video Signal Connectors and Cable
The signal cable shall be 1.8 0.005 meters long.
At the end of the cable shall be a molded-over,
shielded,triple row, 15 position, D-subminiature
connector. The CPU connection shall have captive
screw locks, which will be adequate for hand
tightening. The monitor connection may use small
screws.
+/-
1. Product Specification
SPEC
Signal Input Frequency
Analog :
H : 31kHz~69kHz
(Analog) V : 56Hz~75Hz
Pixel clock 135MHz (Max)
Video Input Analog 0.7Vp-p
Display Pixels 640 x 480 (VGA) ~ 1280 x 800
Sync Signal Separate SYNC for TTL (N or P)
Connector AC Input AC100V ~ AC240V ± 10% 50/60Hz , 3 pin AC power cord
Input connector D-SUB 15 pin
Power Consumption AC in 100V~240V active 20W, power saving < 2W
User's Control Front Empowering/Auto Adjust,Adjust(-),Adjust (+),Menu,Power
OSD
Contrast , Brightness , Position ,Clock ,Phase
,Analog/Digital,RESET, Color , Language select , Audio
Pre-Defined Timing Factory 8
User 8
Plug and Play VESA DDC2Bi
Power Saving VESA DPMS
Input Signal Counter Tolerance
≦ H±1kHz, ≦ V±1Hz
MONITOR SPECIFICATIONS
ITEM
2
