Agilent Technologies 3000 Series User Manual

Getting Started
Front Panel and User Interface Descriptions
1-10

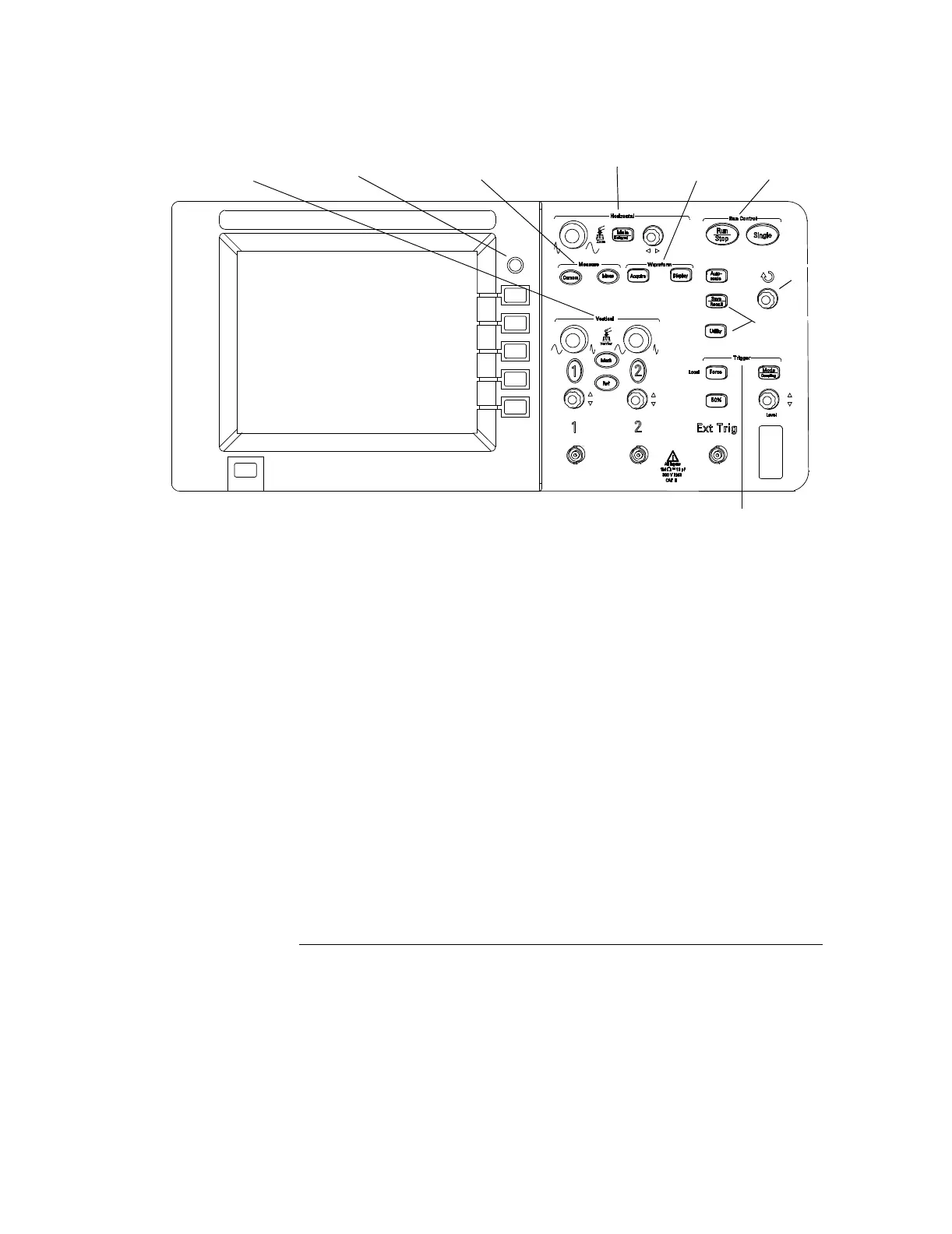

Figure 1-5
Front Panel
The definitions of the buttons and the knobs are as follows:
Measure controls Meas and Cursors
Waveform controls Acquire and Display
Menu controls Save/Recall and Utility
Vertical controls Vertical position knobs, vertical scale knobs, 1, 2, Math and Ref menus
Horizontal controls Position knob, Main/Delayed, and scale knob
Trigger controls Trigger level knob, 50%, Mode/Coupling, and Force
Run controls Run/Stop, Autoscale, and Single
MENU ON/OFF Displays or hides the current menu
Menu defined
buttons Five gray buttons from top to bottom on the right-hand side of the screen, which
select the adjacent menu items in the currently displayed menu. Pressing any
of these when no menu is displayed activates the most recently displayed menu.
Entry knob For the adjustment defined controls
Menu defined buttons
{
Horizontal controls Run controlsVertical controls
Trigger controls
Waveform controlsMeasure controls
Menu controls
Entry knob
