Agilent Technologies 3458A Repair Manual

Chapter 3 Disassembly/Assembly Procedures and Parts List 45

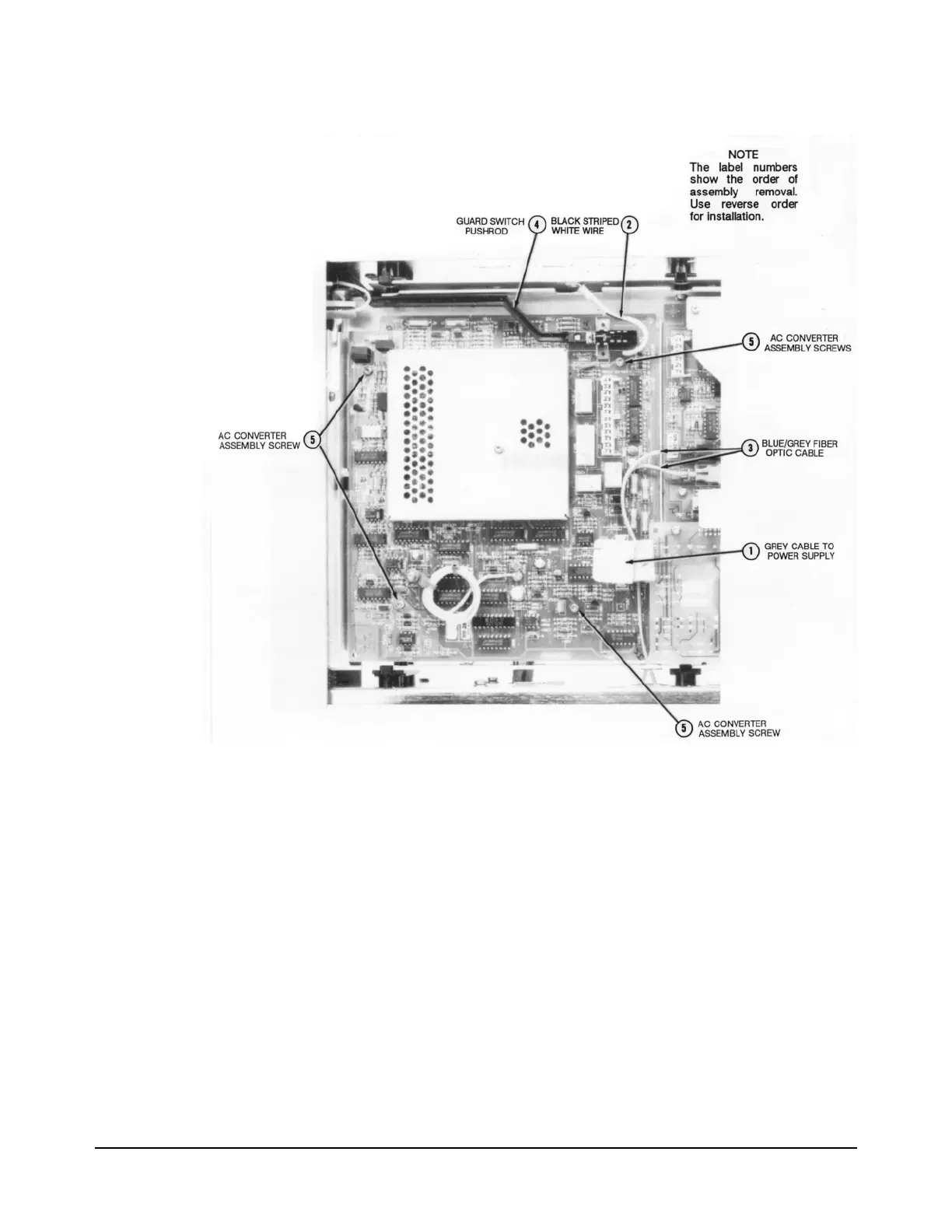

Figure 15. AC Converter Assembly Removal/Installation
AC Converter
Assembly
Removal/Installation
Procedures
The following procedures show how to remove and install the AC Converter
Printed Circuit Board Assembly.
Refer to Figure 15 for the following procedures.
Removal Procedure 1. Use the Covers Removal Procedure in this section of the manual to
remove the 3458A bottom cover and bottom shield. It is not necessary
to remove the top cover and top shield.
2. Set the 3458A on your workbench with the bottom facing you.
3. Unplug the grey 20-pin cable from the AC Converter assembly.
4. Unplug the black striped white wire from the metal inguard chassis.
