Closing and Opening Channel Relays
You must be in the
Allow Full Control mode to close and open channels.

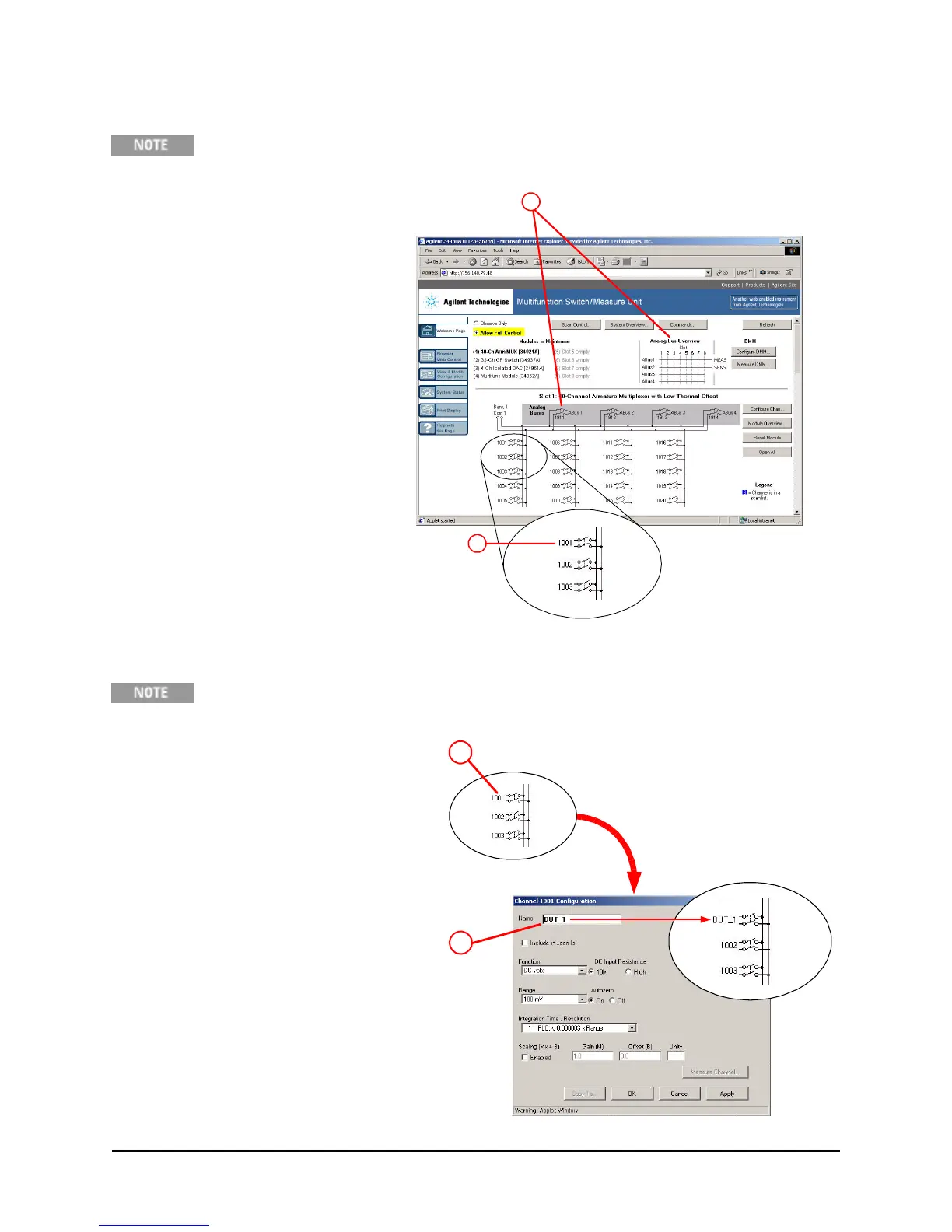

1. To close a channel, left-click
directly on the graphic of the
desired relay. To open a
closed channel, click again on
the relay graphic.
2. You can also open and close
the four Analog Bus relays by
left-clicking the graphics of
these relays. The
Analog Bus
Overview
display located near
the top of the window shows
the slot-by-slot status of the
four Analog Buses.
1
2
Modifying the Channel Configuration
You must be in the
Allow Full Control mode to modify the channel configuration.
1. To modify the measurement
configuration of individual channels
(e.g., add channel labels, select function
and range, etc.), right-click directly on
the graphic of the desired relay.
The
Channel Configuration dialog box
for that channel is displayed.
2. As an example, change the label on
Channel 1001 to “DUT_1”. Click OK.
1
2
