操作说明
Operator Instruction
4.16 拖拉机工作装置的使用
How to use operating device of tractor
4.16.1 液压提升器的操纵
Operation on hydraulic lifter
4.16.1.1 半分置式液压提升器
Type of control for semi—separate hydraulic lifter
沭河 SH90 系列拖拉机主要有以下工作装置：(部分选装)
This series of tractors have working devices as follows: (including optional parts)
液压提升器：配带犁耕作业时应优先使用力位综合调节，以保证作业效果；
Hydraulic lifter: to ensure operational effect, a comprehensive draft/position adjustment should be
selected firstly when tilling operation with, a plough is carrying out.
简单液压输出：主要用于液压挂车等；
Simple hydraulic output: mainly used in hydraulic trailer etc.
液压输出装置：可用于液压翻转犁，液压耙等；
Hydraulic output device: can be used in hydraulic overturn plough and hydraulic harrow etc.
悬挂机构：主要用于悬挂农机具的挂接等；
Hitch mechanism: mainly used to mount hitch farm machine.
动力输出装置：主要用于需要动力驱动的农机具等；
Power output device Mainly used for farm machine driven by power .
摆式牵引装置：主要用于需要重耙、割草机、牵引式播种机、单轴拖车等；
Swing traction device: mainly used in harrow, lawn mower or traction type sower etc.
拖挂架：主要用于双轴挂车等。
Rack: mainly used in single axle trailer and double-axle trailer etc.
9 顶窗
Roof window
顶窗为玻璃钢结构，开启时，握住手把，同时用拇指按动
顶窗锁按头，锁将自动弹开。轻轻向外推顶窗，在左右两
根气弹簧的作用下，顶窗将自动打开。关闭时反向操作即
可。
The roof window adopts fiberglass reinforced plastic
construction. When opening, hold the handle, at the same
time, press the compression head of the roof window lock by
thumb, the lock will spring open automatically. Push the roof
window outward gently, with the help of 2 gas springs, the
roof window will open automatically. When closing, operate
in reverse order

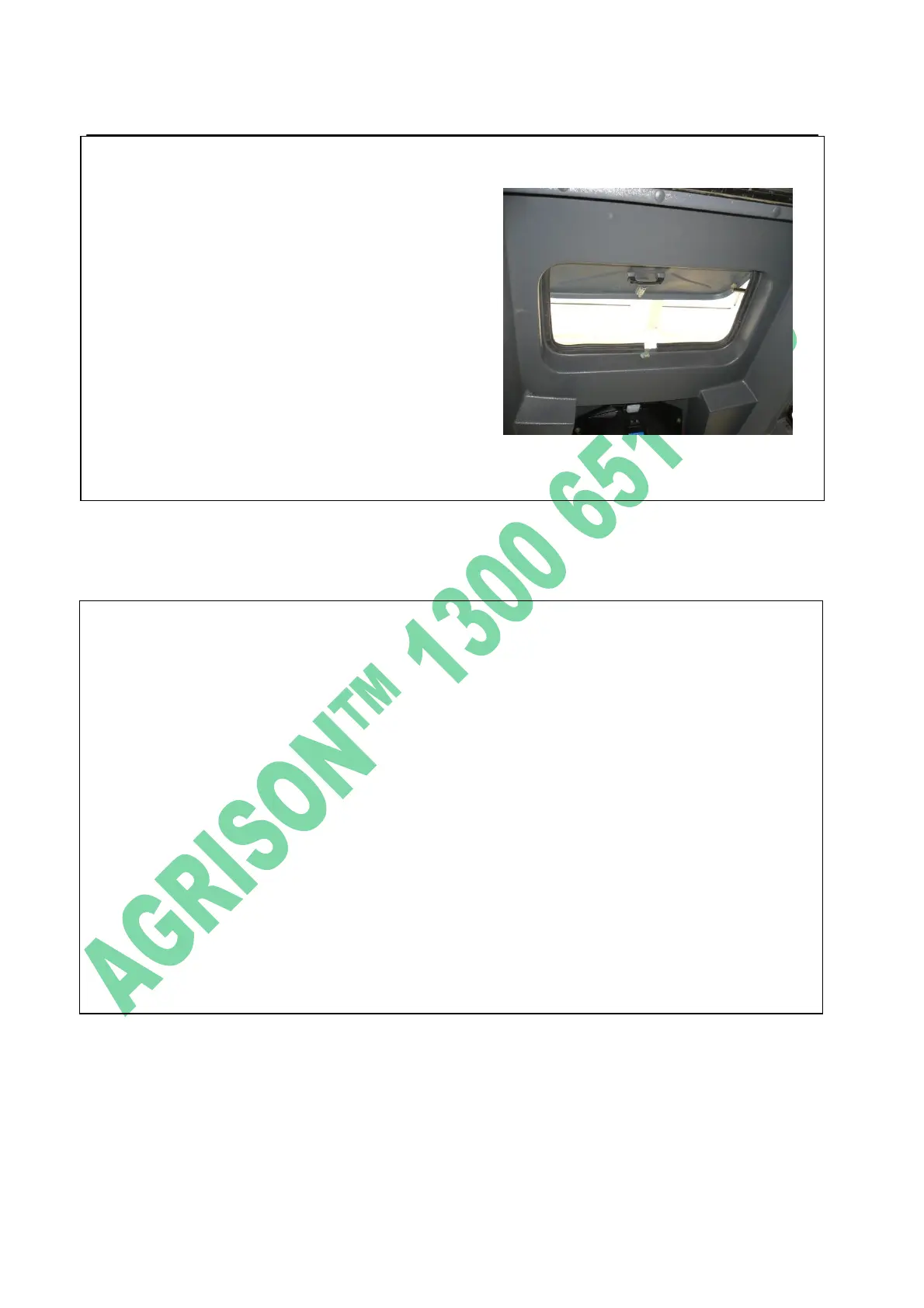

图 4-36 顶窗
Figure 4-36 Roof window
