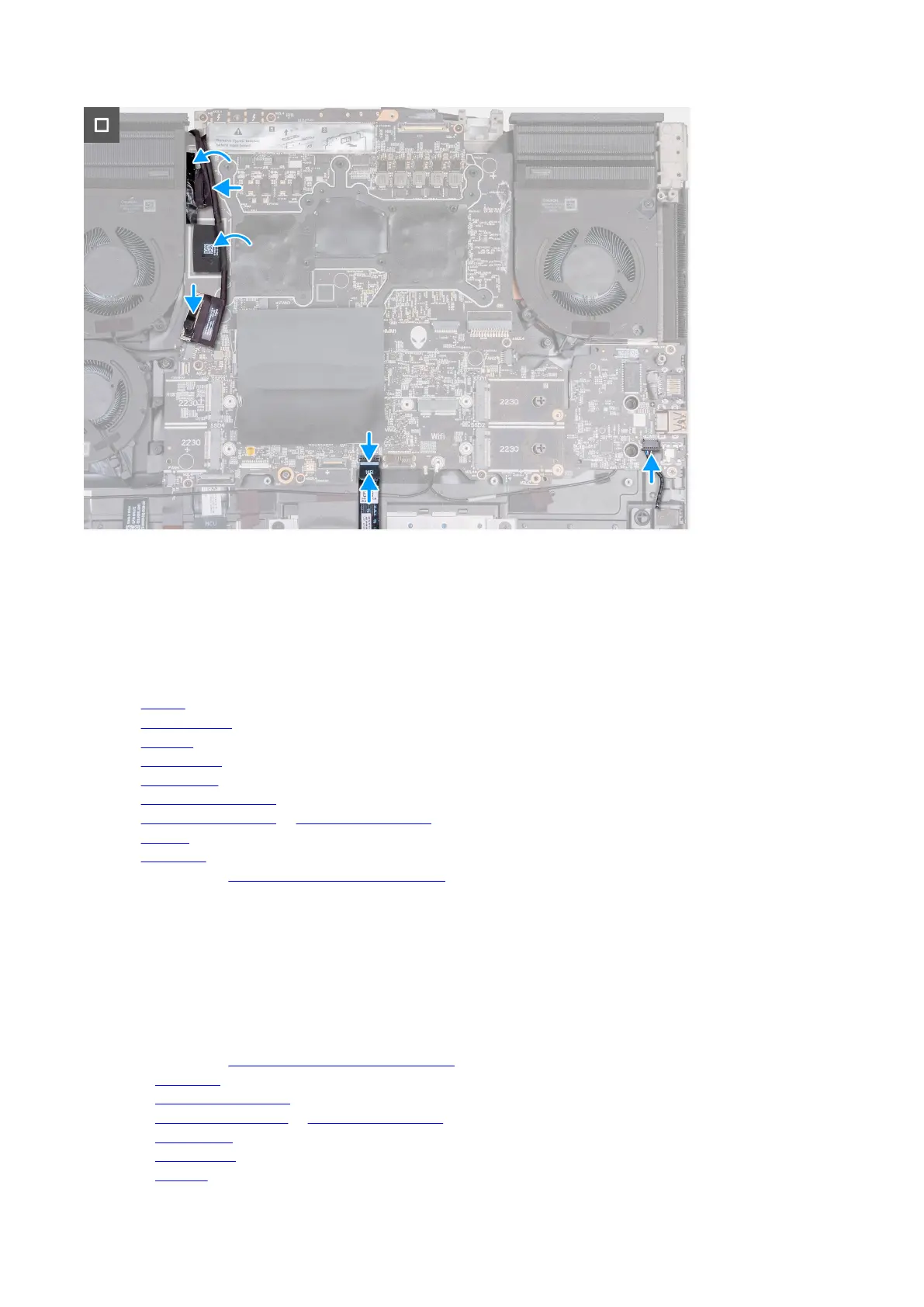

9. Connect the camera cable to the system board.
10.Adhere the tape securing the camera cable to the system board.
11. Connect the rear I/O board cable to the system board.
12. Connect the touchpad cable to the system board and close the latch to secure the cable.
13. Connect the speaker cable to the system board.
Next steps
1. Install the battery.
2. Install the
rear-I/O cover.
3. Install the small fan.
4. Install the top heat-sink.
5. Install the wireless card.
6. Install the
2230 solid-state drive in slot three and four.
7. Install the 2280 solid-state drive or 2230 solid-state drive in slot one and two, whichever applicable.
8. Install the memory.
9. Install the base cover.
10.Follow the procedure in After working inside your computer.
Fan and heat-sink assembly
Removing the fan and heat-sink assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the
base cover.
3. Remove the 2230 solid-state drive in slot three and four.
4. Remove the 2280 solid state drive or 2230 solid-state drive in slot one and two, whichever applicable.
5. Remove the wireless card.
6. Remove the top heat-sink.
7. Remove the small fan.
58
