Steps
1. Turn the system-board assembly over.
2. Remove the two screws (M2x4) that secure the audio board to the system-board assembly.
3. Slide and remove the audio board from the system-board assembly.
Installing the audio board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

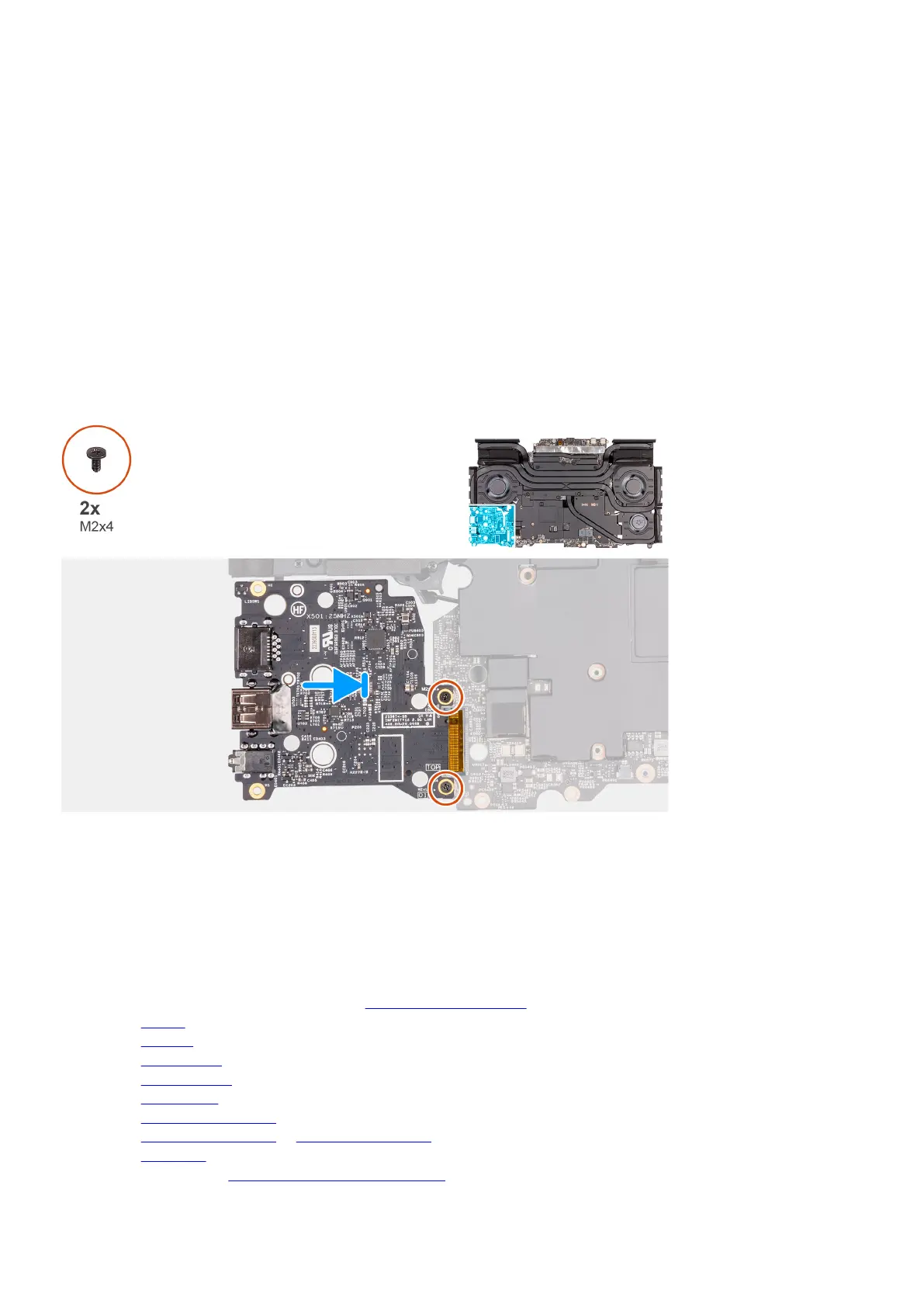

The following image(s) indicate the location of the ethernet and audio board and provides a visual representation of the installation
procedure.
Steps
1. Slide the audio board and connect to the system board.
2. Align the screw holes on the audio board to the screw holes on the system-board assembly.
3. Replace the two screws (M2x4) that secure the audio board to the system-board assembly.
4. Turn the system-board assembly over.
Next steps
1. Follow the procedure from step 5 to step 13 in Installing the system board.
2. Install the battery.
3. Install the small fan.
4. Install the
top heat-sink.
5. Install the rear-I/O cover.
6. Install the wireless card.
7. Install the 2230 solid-state drive in slot three and four.
8. Install the 2280 solid-state drive or 2230 solid-state drive in slot one and two, whichever applicable.
9. Install the base cover.
10.Follow the procedure in After working inside your computer.
