5. Install the rear-I/O cover.
6. Install the wireless card.
7. Install the 2230 solid-state drive in slot three and four.
8. Install the 2280 solid-state drive or 2230 solid-state drive in slot one and two, whichever applicable.
9. Install the
base cover.
10.Follow the procedure in After working inside your computer.
Audio board
Removing the audio board
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the 2230 solid-state drive in slot three and four.
4. Remove the 2280 solid state drive or 2230 solid-state drive in slot one and two, whichever applicable.
5. Remove the
wireless card.
6. Remove the top heat-sink.
7. Remove the small fan.
8. Remove the rear-I/O cover.
9. Remove the battery.
10.Follow the procedure from step 1 to step 9 in
Removing the system board.
NOTE: The system board can be removed and installed along with the memory, audio board, and fan and heat sink-assembly.
This simplifies the removal and installation procedure and avoids breaking the thermal bond between the system board and
heat sink.
About this task

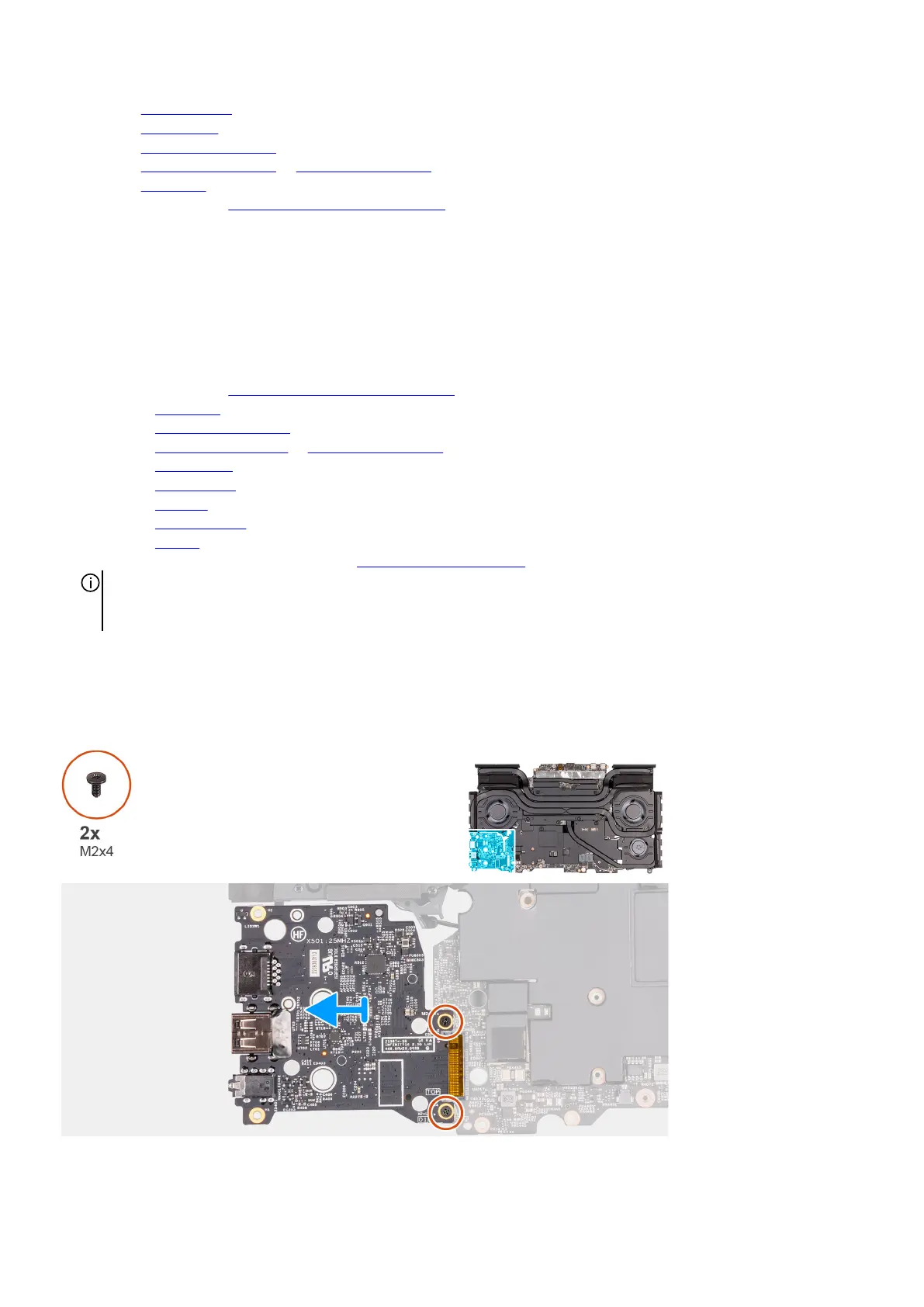

The following image(s) indicate the location of the ethernet and audio board and provides a visual representation of the removal
procedure.
