ALLEN & HEATH SQ-7 User Manual

 16
Reference Guide V1.5.0

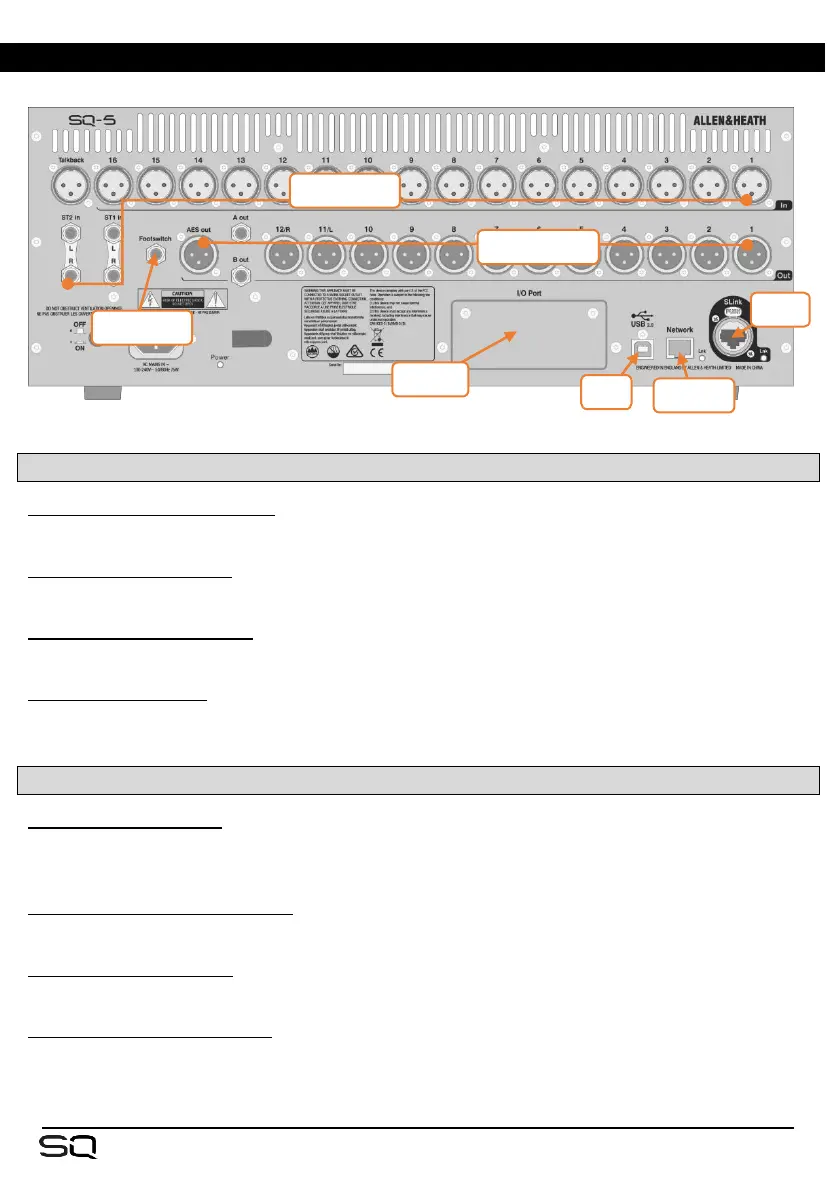

5. Connections
5.1 Local Inputs
Mono mic/line (XLR female) – These are numbered and accept balanced mic or line
level signal. Gain, Pad and 48v Phantom Power are controlled digitally.
Talkback (XLR female) – Identical to mono mic/line inputs. Intended for
communication from the desk position, but can also be used as an additional input.
ST1, ST2 (1/4” TRS jack) – Labelled as stereo pairs, these can also be used as mono
line level balanced inputs.
ST3 (TRS Mini jack) – Located on the surface of the SQ, this can be used with a line
level source, such as a portable media player, laptop, tablet or smartphone, using a
standard stereo mini jack cable.
5.2 Local Outputs
Mono line (XLR male) – Line level outputs for sending mixes or direct outputs. These
are numbered, and fully assignable. With default settings, the LR mix is sent to 11&12,
as labelled.
A/B mono line (1/4” TRS jack) – Two assignable line level outputs, presented on
balanced jack sockets for convenience.
AES digital (XLR male) – Stereo digital output clocked to SQ. For connection to
equipment with a digital input.
Headphone (1/4” TRS jack) – Located on the surface of the SQ, with dedicated level
control. Fed from the PAFL bus.
Local inputs
Local outputs
Network
Footswitch
USB
I/O Port
SLink

ALLEN & HEATH SQ-7 Specifications

General

MIDI out	Yes
RJ-45 ports quantity	1
Channels quantity	48 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
DJ mixer	-
Product color	Black
Power consumption (typical)	- W

Weight and Dimensions

Depth	514.9 mm
Width	804 mm
Height	198 mm
Weight	17800 g
Package depth	685 mm
Package width	960 mm
Package height	360 mm
Package weight	21900 g
