8.1 Direct Out
Touch the ‘Dir Out’ button on any input channel.
This screen shows the direct output level for the selected channel, as well as the
global direct out settings which affect all channels. The currently selected channel is
displayed on the left.
• Touch the level value and adjust using the touchscreen rotary, this is adjusted
individually on each channel.
Direct out level = -inf to +10dB
• Choose whether direct out signals are affected by faders or mutes by touching
the on-screen buttons.
• Select the channel ‘tap off’ point by touching the ‘Direct Out Source’ value. Each
source point is presented in order, and is affected by all preceding processing
that is switched in.
Post Preamp = signal is affected only by the preamp gain.
Post HPF = signal is also affected by the high pass filter.
Post Gate = signal is also affected by the gate.
Post Insert Return = signal is also affected by the insert.
Post PEQ = signal is also affected by PEQ.
Post Comp = signal is also affected by compressor.
Post Delay = signal is affected by all channel processing including ms delay.

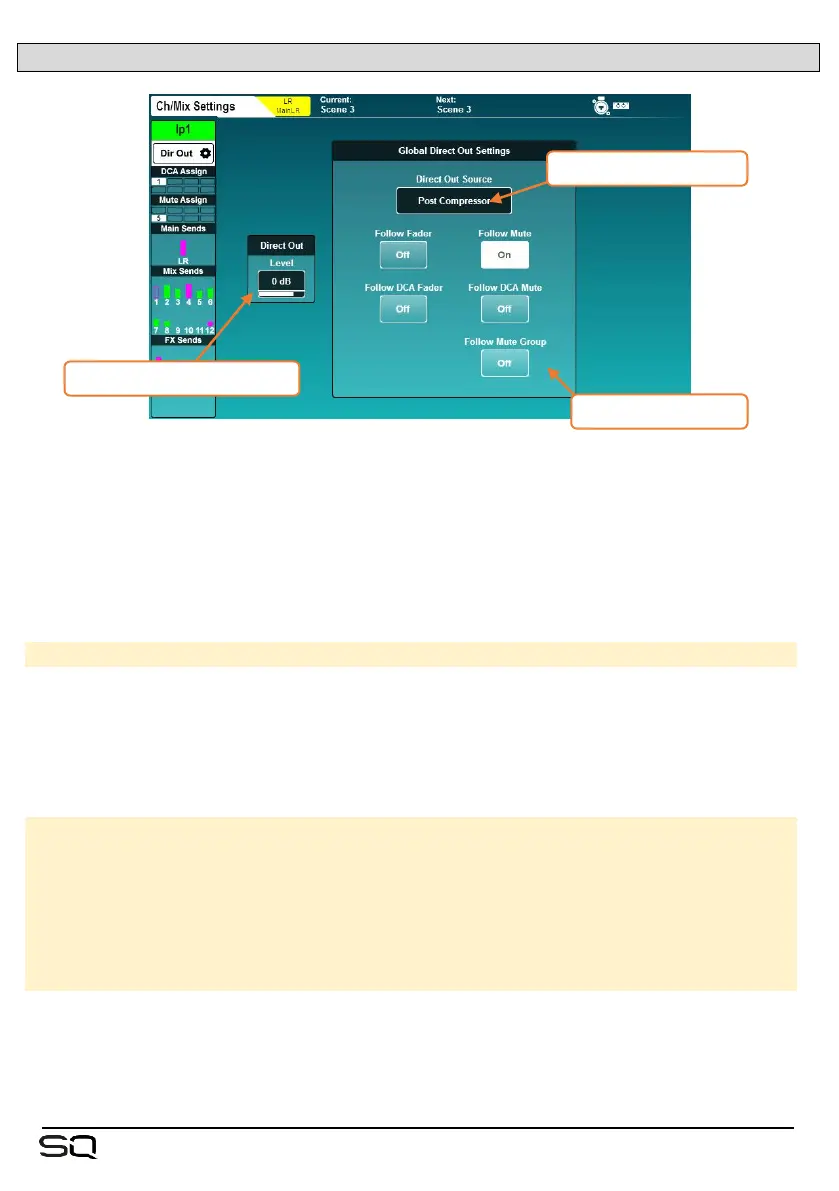

individual direct output level
global direct out source
global follow options
