ALLEN & HEATH SQ-7 User Manual

 34
Reference Guide V1.5.0

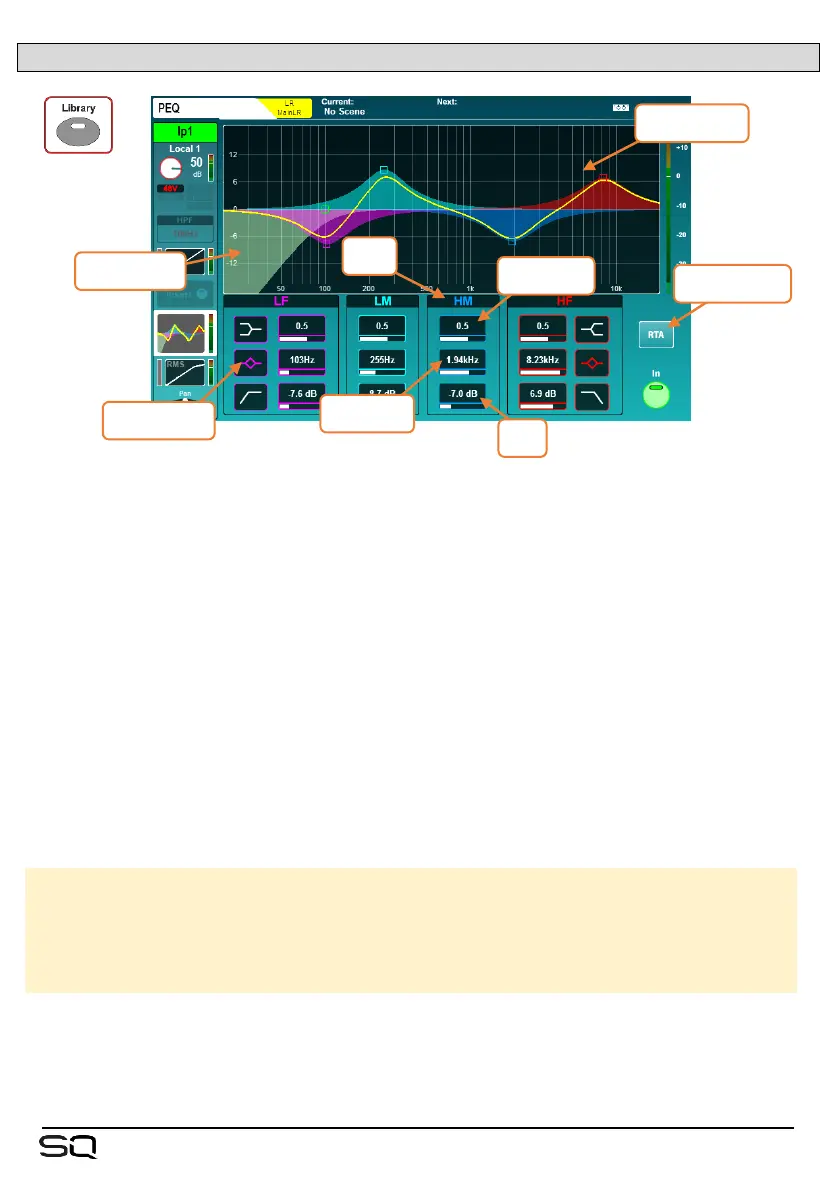

7.7 PEQ
The PEQ can be switched in or out using the physical ‘In’ key on the surface or with
the on-screen ‘In’ button.
• The 4-bands of the parametric EQ are labelled to match the physical EQ section
on the surface.
• To use the dedicated physical EQ controls, select a band, and use the gain,
bandwidth and frequency rotaries to adjust. To adjust on-screen, touch a
parameter and use the touchscreen rotary, or touch and drag points on the graph.
 The frequency band selected on the surface can be set to follow the on-screen selection
in Surface Preferences.
• Touch the relevant icon to switch between the shelf, bell and filter modes for LF
and HF bands.
• When the PEQ is active, the graphical display is brightly coloured, when inactive,
it is greyed out.
LF Mode = Shelf, Bell, HPF
HF Mode = Shelf, Bell, LPF
Frequency (all modes) = 20Hz to 20kHz
Width (parametric) = 1.5 octave to 1/9
th
octave
Gain (parametric, shelf) = -15dB to +15dB
• Touch the ‘RTA’ button to view and adjust the RTA overlay settings. Full details
on the PEQ RTA are in the RTA section of this guide.
mode select
band
bandwidth
frequency
gain
PEQ display
HPF display
RTA settings
