HEADPHONE SECTION
1
2
3
4
1

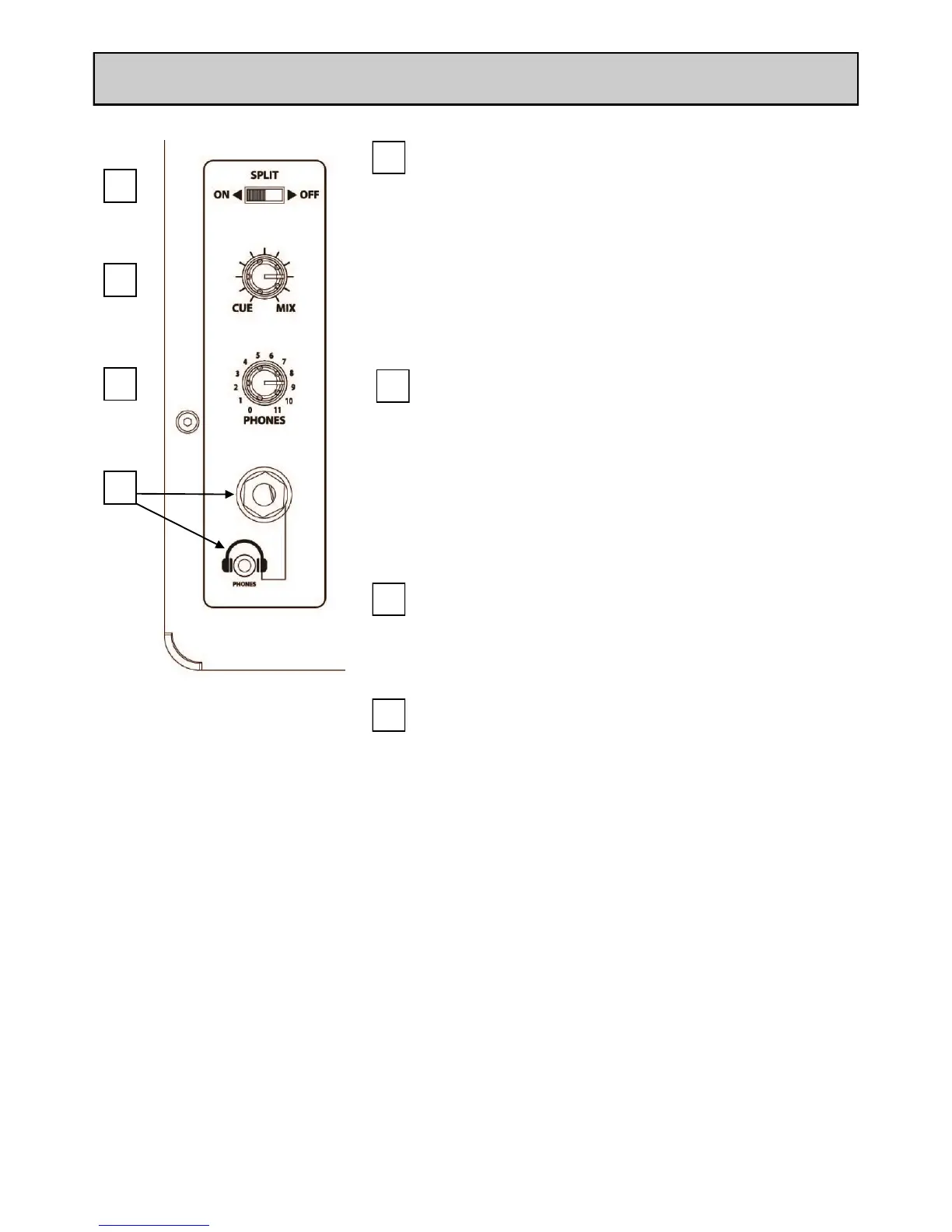

Headphone Outputs
Stereo 1/4” TRS jack and 3.5mm mini-jack sockets. Plug
in good quality stereo headphones intended for DJ mon-
itoring. Use closed-ear headphones that provide maxi-
mum acoustic isolation when cueing your sources.
2
Split Cue Switch
Selects the way Cue operates. Normally, pressing a
channel Cue switch overrides both left and right moni-
tor program signals with the stereo Cue signal. With
Split set to On, Cue overrides just the left channel leav-
ing the program in the right channel. The left monitor
meter displays the Cue signal, right displays program.
This is very useful when beat mixing using headphones.
3
Cue / Mix Control
Allows the main mix output to be added to the Cue sig-
nal. Turned fully anticlockwise, only the active Cue is
heard through the headphones when Cue is active.
Gradually turning clockwise introduces the main mix
output to the headphones, together with the active Cue.
Selecting Split Cue will automatically override this con-
trol.
4
Headphones Level Control
Adjusts the level of the signal in the stereo headphones.
This does not affect the level of the local booth monitor.

ALLEN & HEATH XONE:43C Specifications

General

Sample rate	96 kHz
Channels quantity	16 channels
Digital sound processing	24 bit
Line Signal-to-Noise Ratio (SNR)	20 dB
Total Harmonic Distortion (THD)	0.05 %
Microphone in	Yes
Headphone connectivity	3.5 mm
Product color	Black
Video capability	No
Power consumption (typical)	30 W
Equalizer bands quantity	3

Weight and Dimensions

Depth	370 mm
Width	320 mm
Height	110 mm
Weight	5200 g
