ALLEN & HEATH XONE:43C User Manual

Allen & Heath 18 XONE:43C User Guide

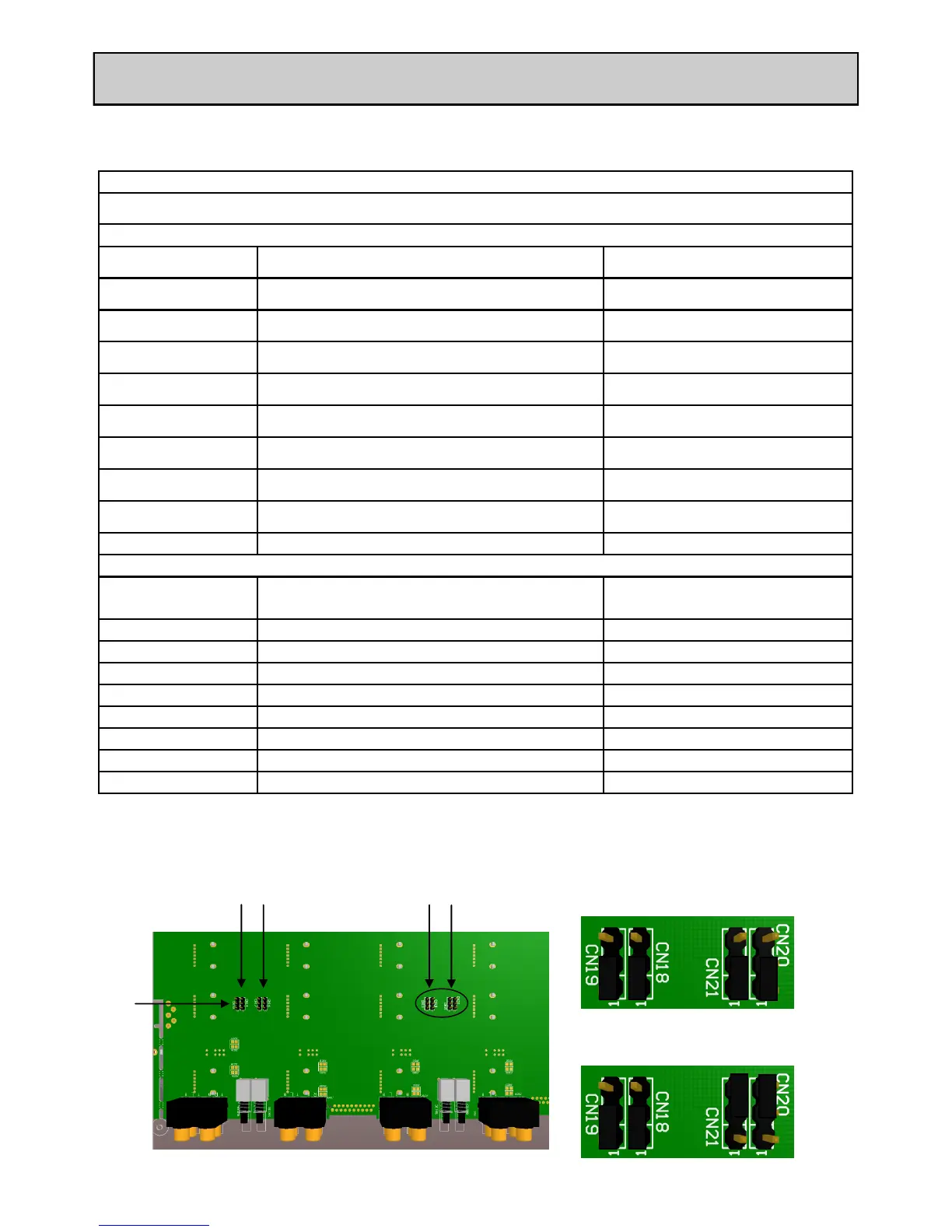

USB AUDIO ROUTING WITH JUMPER SETTINGS
Mixer -> Computer
Input Channel Xone 43C DEFAULT
Xone 43C Jumper OPTION
USB_1 (RIAA or LINE)SND_L_1 (CN14 1+2)
REC_LEFT (CN14 2+3)
USB_2 (RIAA or LINE)SND_R_1 (CN15 1+2)
REC_RIGHT (CN15 2+3)
USB_3 (RIAA or LINE)SND_L_2 (CN16 1+2)
X_FX_L_SND (CN16 2+3)
USB_4 (RIAA or LINE)SND_R_2 (CN17 1+2)
X_FX_R_SND (CN17 2+3)
USB_5 (RIAA or LINE)SND_L_3 (CN18 1+2)
REC_LEFT (CN18 2+3)
USB_6 (RIAA or LINE)SND_R_3 (CN19 1+2)
REC_RIGHT (CN19 2+3)
USB_7 (RIAA or LINE)SND_L_4 (CN20 1+2)
X_FX_L_SND (CN20 2+3)
USB_8 (RIAA or LINE)SND_R_4 (CN21 1+2)
X_FX_R_SND (CN21 2+3)
Computer -> Mixer
Output Channel Xone 43C No Option Set To
USB_1 USB_RTN_L_1 USB_RTN_L_1
USB_2 USB_RTN_R_1 USB_RTN_R_1
USB_3 USB_ RTN _L_2 USB_ RTN _L_2
USB_4 USB_ RTN _R_2 USB_ RTN _R_2
USB_5 USB_ RTN _L_3 USB_ RTN _L_3
USB_6 USB_ RTN _R_3 USB_ RTN _R_3
USB_7 USB_ RTN _L_4 USB_ RTN _L_4
USB_8 USB_ RTN _R_4 USB_ RTN _R_4
The Xone:43C Soundcard can be reconfigured beyond the default shipping configuration. To make any
changes via the jumpers you will need to open the mixer, see Page 31 for information on how to do this.
USB SOUNDCARD — USER OPTIONS
The above table details the default USB Audio routing with Jumper Settings. To make any changes, lift (in
a pair) the jumpers from pins 1+2 to pins 2+3, this then enables the option setting.
CH1 CH2 CH3 CH4
RL RL RL RL
MODIFIED E.G.
CH3 DEFAULT CH4 OPTION
DEFAULT E.G.
CH3 DEFAULT CH4 DEFAULT
PIN
3
2
1

ALLEN & HEATH XONE:43C Specifications

General

Sample rate	96 kHz
Channels quantity	16 channels
Digital sound processing	24 bit
Line Signal-to-Noise Ratio (SNR)	20 dB
Total Harmonic Distortion (THD)	0.05 %
Microphone in	Yes
Headphone connectivity	3.5 mm
Product color	Black
Video capability	No
Power consumption (typical)	30 W
Equalizer bands quantity	3

Weight and Dimensions

Depth	370 mm
Width	320 mm
Height	110 mm
Weight	5200 g
