ALLEN & HEATH XONE:43C User Manual

Allen & Heath 11 XONE:43C User Guide

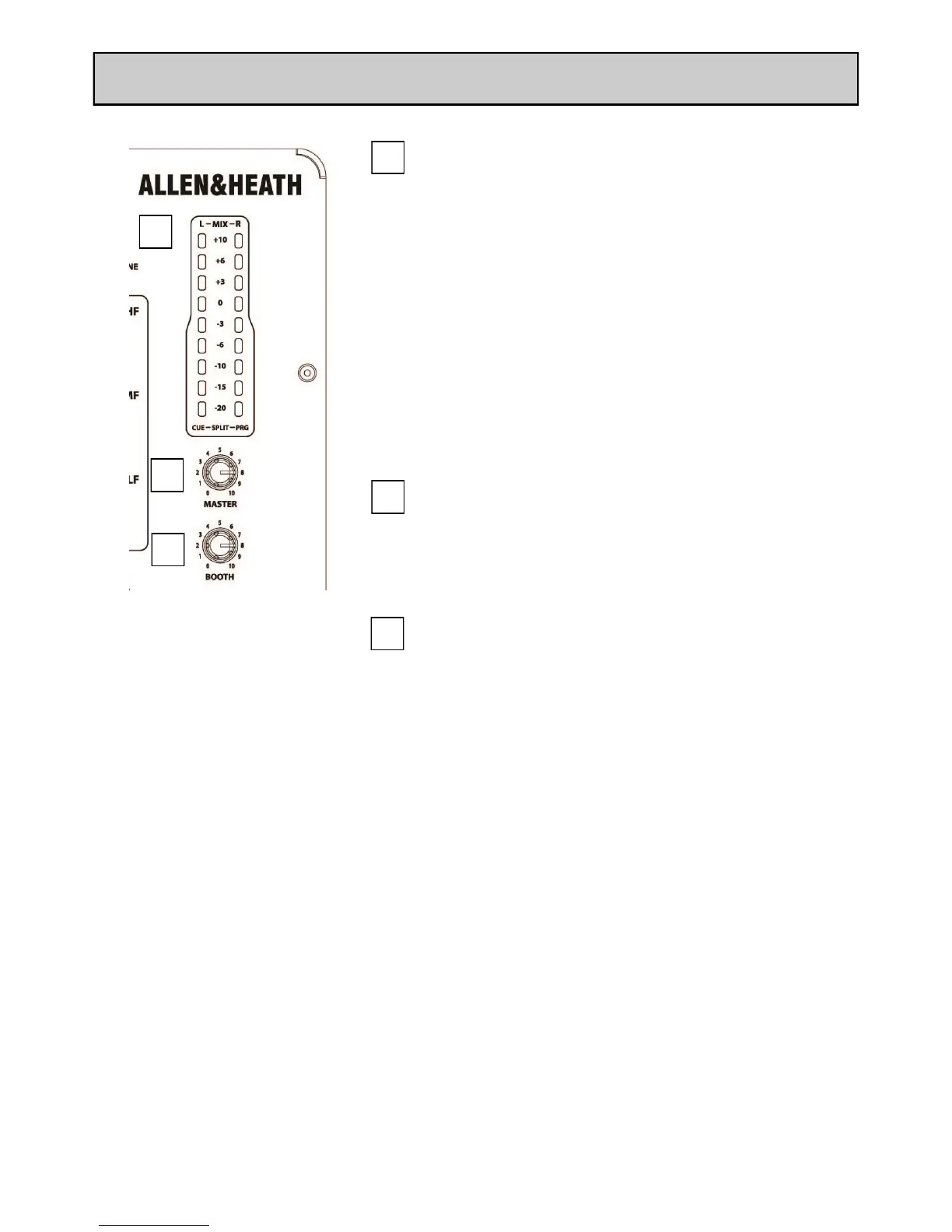

MASTER SECTION
1
Mix / Monitor Meters
The main meters follow the selected monitor source.
The default display is the mix level, pre-master level,
which is overridden with an input channel level if the
channel cue switch is selected.
In split cue mode, the left (L) mix meter will display the
cued channel signal level and the right (R) mix meter will
display the mix level. The cued mix audio is pre level to
prevent mismatch due to the position of the master lev-
el control.
The mixer should be operated with these meters aver-
aging around ‘0’ with loudest peaks no higher than ‘+6’.
2
3
Master Level Control
A rotary master control adjusts the level of the master
mix XLR outputs feeding the house sound system. This
does not affect the booth output or the meter reading.
Booth Level Control
Adjusts the level of the signal to the stereo booth RCA
output. This does not affect the headphones. The
booth output could be used for a booth monitor, re-
cording or an additional zone feed.
1
2
3

ALLEN & HEATH XONE:43C Specifications

General

Sample rate	96 kHz
Channels quantity	16 channels
Digital sound processing	24 bit
Line Signal-to-Noise Ratio (SNR)	20 dB
Total Harmonic Distortion (THD)	0.05 %
Microphone in	Yes
Headphone connectivity	3.5 mm
Product color	Black
Video capability	No
Power consumption (typical)	30 W
Equalizer bands quantity	3

Weight and Dimensions

Depth	370 mm
Width	320 mm
Height	110 mm
Weight	5200 g
