REPLACING THE CROSSFADER
If the crossfader is subject to a lot of use it will, in time wear out and need replacing. Intermittent or
noisy operation is an indication that it is becoming worn. Using a propriety fader cleaner such as
CaigLube might temporarily restore use, but DO NOT use on a new fader as it will wash away the facto-
ry applied grease.
The standard fader can be ordered under A&H part number 004-632JIT
The Innofader can be ordered under part number 004-504JIT
Warning! Dismantling your mixer could invalidate the warranty; if you are unsure of your ability to safely
carry out this work then it is advised that you leave it to a qualified service technician.
Tools you will need:
 T8 Torx screwdriver
 A small container to keep screws in.
Have a clean flat work surface ready before starting work.
Ensure that the power to the unit has been turned off and disconnected completely from the mains.

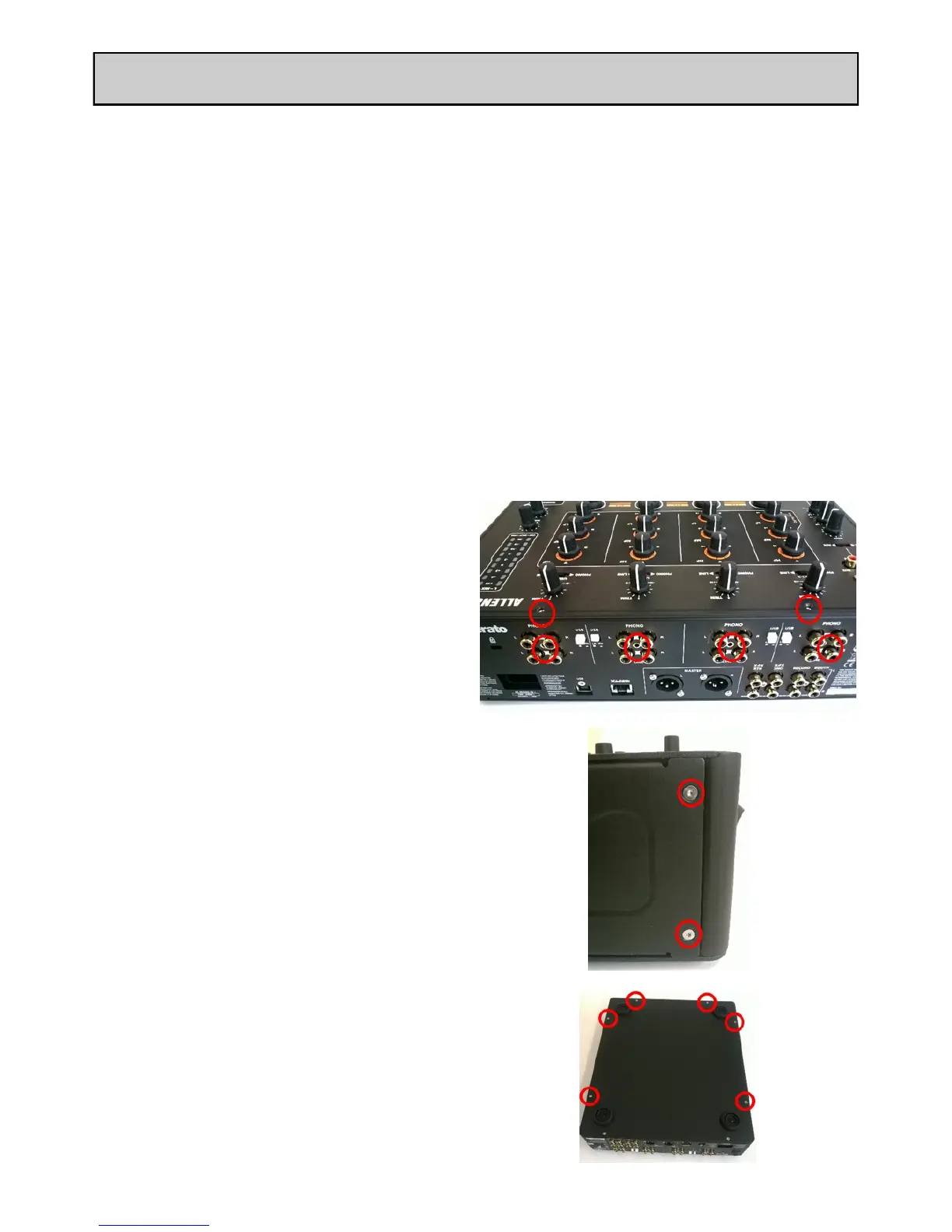

Step 1:
 Remove and retain 2 screws from front panel.
 Remove and retain 4 screws from rear panel
upper phono sockets.
Step 2:
 Remove and retain 4 screws from side panel
of the mixer (2 each side).
 Turn console over onto its front panel –
take care not to scratch the unit.
Step 3:
 Remove and retain 6 screws from base panel.
 Note that the 2 nearest the rear connector
remain in place.
 Turn console over to be the correct way up.
