Allen & Heath 13 XONE:43C User Guide

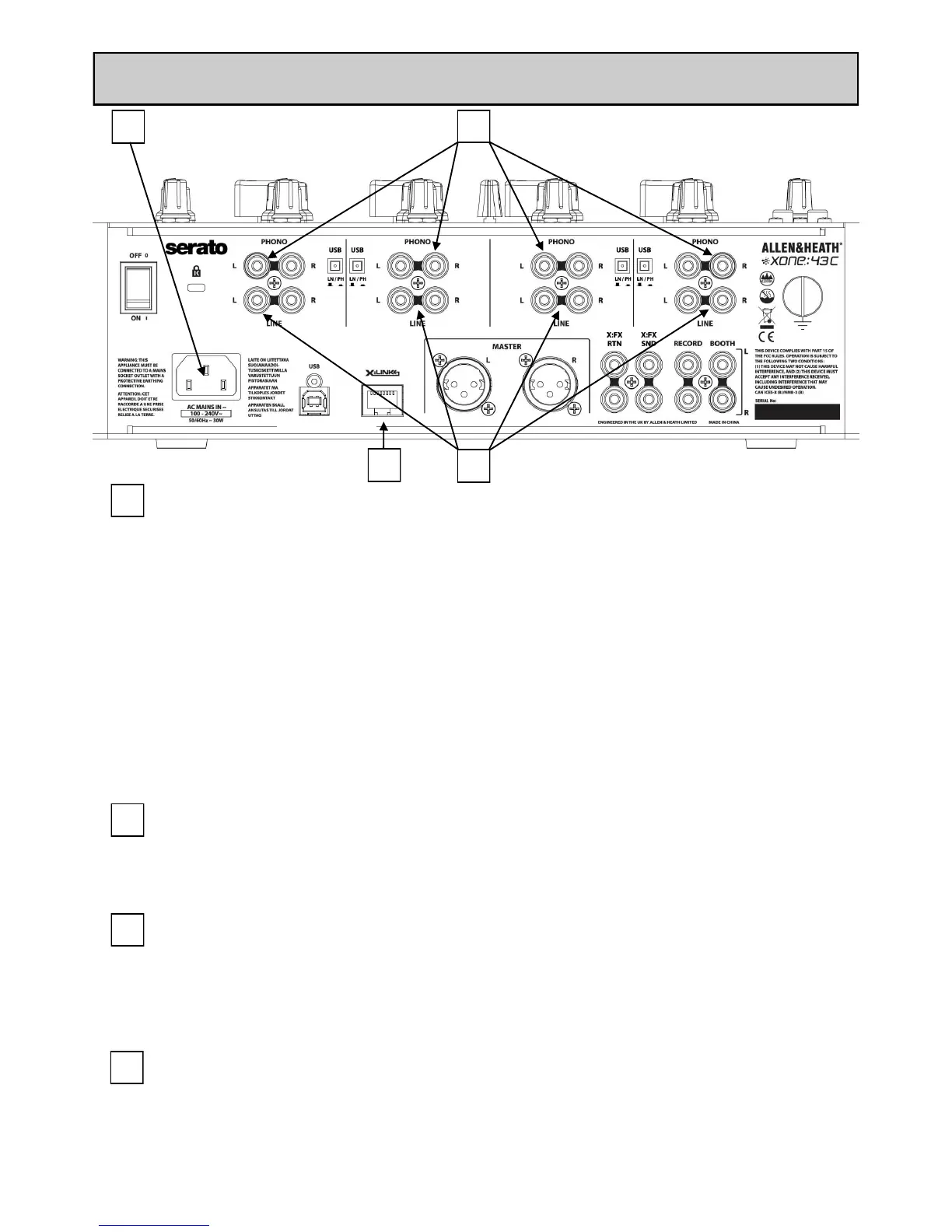

REAR CONNECTORS
1
2
3
AC Mains Input
IEC cable with moulded mains plug suitable for your local supply.
Important: Read the SAFETY INSTRUCTIONS sheet included with the
Xone:43C and printed on the rear panel.
Check that the correct mains lead with moulded plug has been supplied with your console.
The power supply accepts mains voltages within the range 100-240V without changing any
fuses or settings. Ensure that the IEC mains plug is pressed fully into the rear panel socket
before switching on.
Note: It is standard practice to turn connected power amplifiers down or off before
switching the console on or off. This prevents any potential damage to speaker systems due
to switch-on transients.
CH 1, 2, 3 and 4 Phono Input
Plug in turntables with magnetic cartridges requiring RIAA equalisation. For non-RIAA turn-
tables plug into the LINE input instead. Do not plug in line level sources to the phono inputs
as these will overload the preamp and cause severe high level distortion.
CH 1, 2, 3 and 4 Line Input
RCA phono. Connect stereo line level music sources such as CD players. Do not connect
turntables which require RIAA equalisation. Alternatively, you can connect to jack sources
using a cable with RCA to jack adapters. Avoid using low grade cables such as those often
supplied with domestic equipment as these can quickly prove unreliable in use.
1
2
3
X:LINK
Connect XONE:K Series Controllers to the XONE:43C Mixer to save using USB ports on
your computer.
4
4
