122 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 5 CompactLogix 5370 Controllers Overview
DeviceNet Network

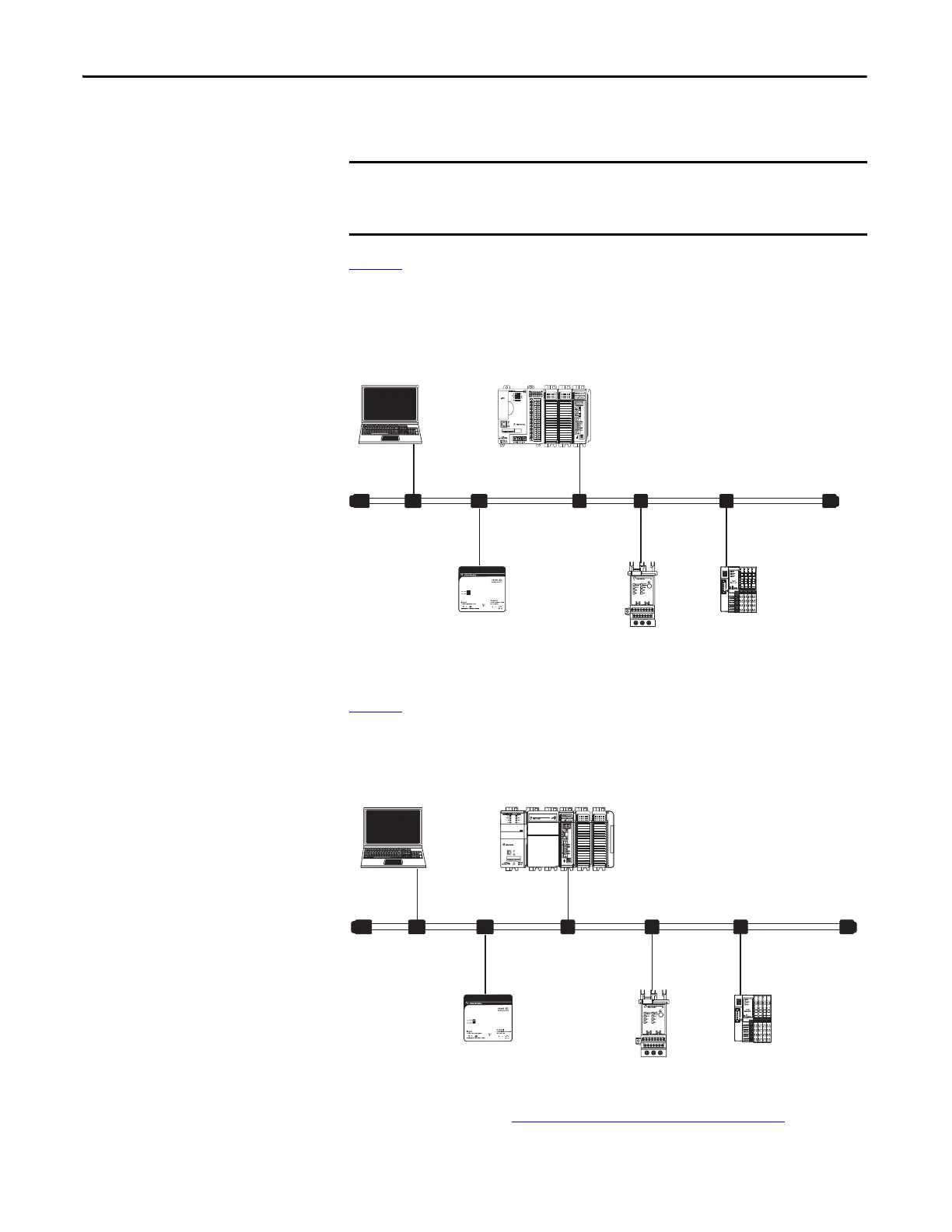

Figure 6 shows an example DeviceNet system configuration for a CompactLogix
1769-L24ER-QB1B controller.
Figure 6 - Example 1769-L24ER-QB1B Control System Configuration on a DeviceNet Network
Figure 7 shows an example DeviceNet system configuration for a CompactLogix
1769-L33ERM controller.
Figure 7 - Example 1769-L33ERM Control System Configuration on a DeviceNet Network
For more information on using the CompactLogix 5370 L2 or L3 controllers on
DeviceNet networks, see Communicate over Networks
on page 123.
IMPORTANT
CompactLogix 5370 L2 and L3 controllers can send messages to devices on the
DeviceNet network; however, these controllers cannot receive messages
from those devices on the DeviceNet network.
• 1769-L24ER-QB1B
• 1769-SDN Scanner
1606-XLDNET
DeviceNet Connection
E3 Overload Relay • 1734-ADN POINT I/O
• POINT I/O
• 1769-L33ERM
• 1769-SDN Scanner
1606-XLDNET
DeviceNet Connection
E3 Overload Relay
• 1734-ADN POINT I/O
• POINT I/O
