Install the CompactLogix 5370 L2 Controller Chapter 2
Install the Removable Terminal Block
To remove the RTB, loosen the upper and lower retaining screws. The terminal
block backs away from the module as you remove the screws. When replacing the
terminal block, torque the retaining screws to 0.46 N
•m (4.1 lb•in).
Wire the Terminal Block
When wiring the terminal block, keep the finger-safe cover in place.
1. Loosen the retaining screws to be wired.
2. Route the wire under the terminal pressure plate.
You can use the bare wire or a spade lug. The terminals accept a 6.35 mm
(0.25 in.) spade lug.
3. Tighten the retaining screw making sure the pressure plate secures the wire.
Recommended torque when tightening retaining screws is 0.68 N•m
(6 lb•in).

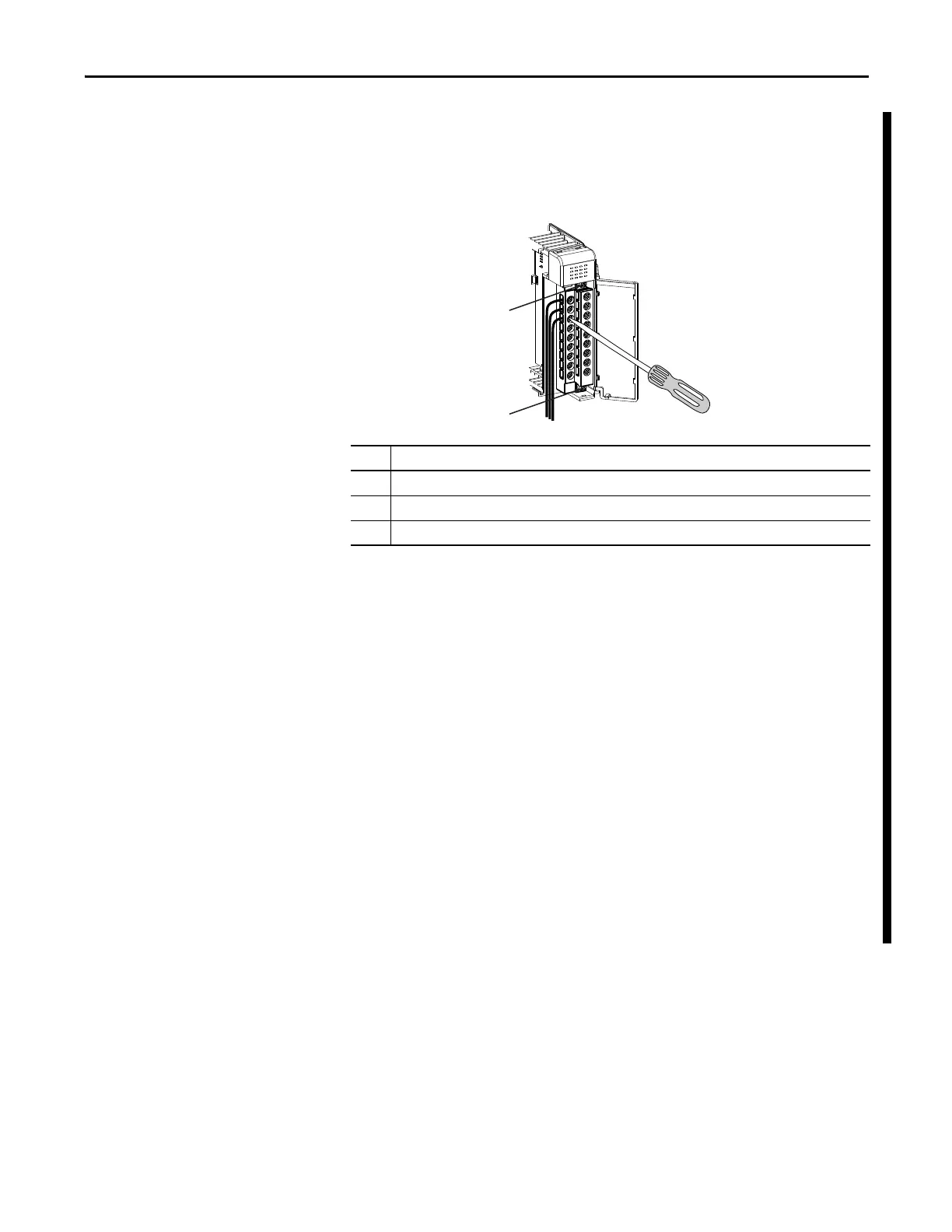

Item Description
1 Wiring the finger-safe cover
2 Lower retaining screws
3 Upper retaining screws
The retaining screws are non-captive. You can use a ring lug [maximum 6.35
mm (0.25 in.) o.d. with a 3.53 mm (0.139 in.) minimum i.d. (M3.5)] with the
module.
If you need to remove the finger-safe cover, insert a screwdriver into one of the
square wiring holes and gently pry the cover off. If you wire the terminal block
with the finger-safe cover removed, you cannot put it back on the terminal
block because of wires in the way.
