Chapter 7 Use I/O Modules with CompactLogix 5370 L1 Controllers
Configure I/O

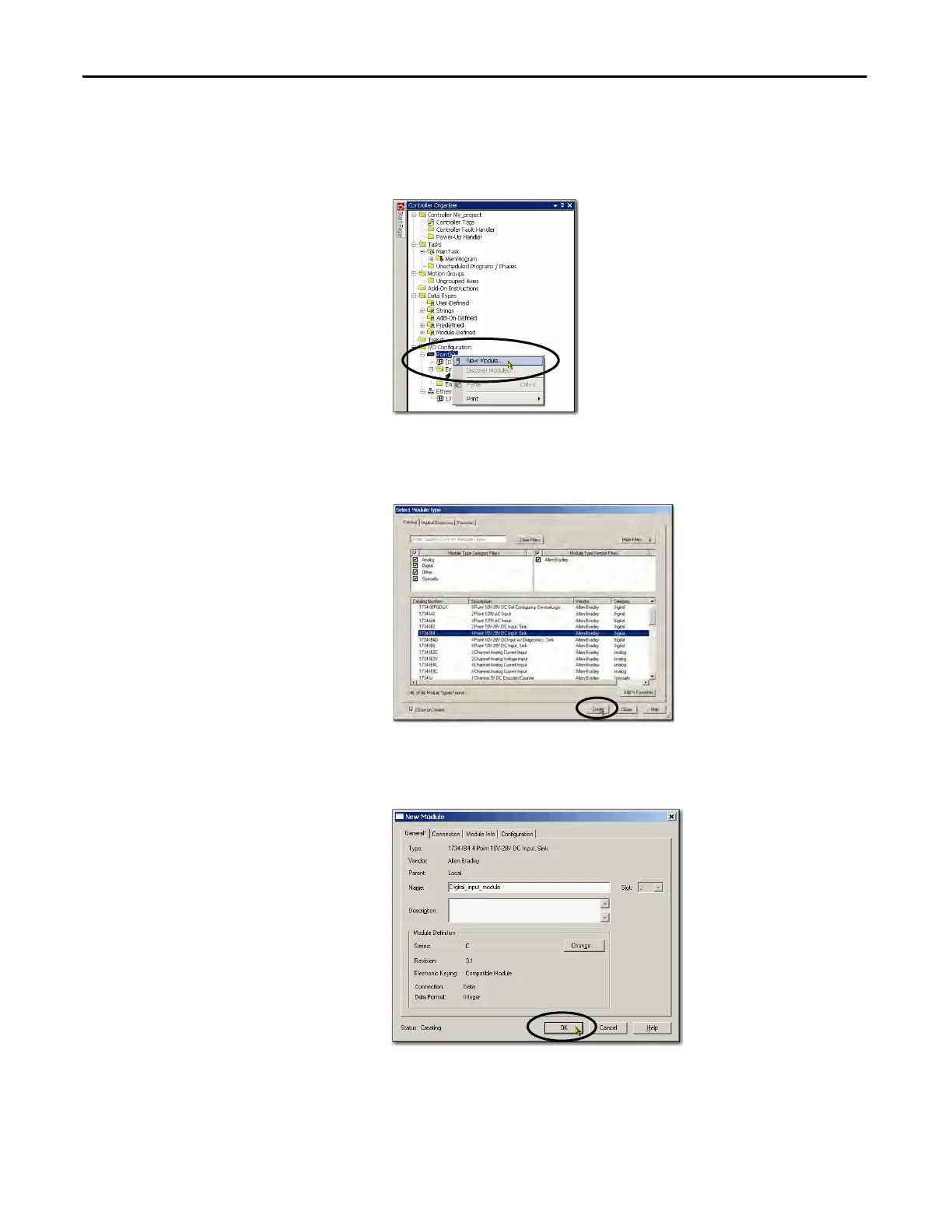

Complete these steps to add a 1734 POINT I/O module to your
CompactLogix 5370 L1 control system.
1. Right-click PointIO and choose New Module.
You can also right-click Expansion I/O.
2. Select the desired I/O module and click Create.
The New Module dialog box appears.
3. Configure the new I/O module as necessary and click OK.
