Allen-Bradley ControlNet PLC-5 User Manual

1785-UM022B-EN-P - February 2002
Installing Your ControlNet PLC-5 Processor 1-21
ControlNet Connection
You can connect programming devices to a ControlNet network
through:
• the ControlNet network access cable (1786-CP)
• the ControlNet 1784-PCC1 cable
• a tap on a ControlNet network
Important: Use the 1786-CP cable when connecting a programming
terminal to the network through a NAP. Using a commercially
available RJ-style cable could result in network failure
.
ATTENTION: Do not connect the same
communication card to both the NAP and
a tap on the ControlNet network.
!
Personal computer or
other serial device
and your HMI or
programming software
Serial connection
1770-KFC15
Interface
ControlNet Network**
1794-ACNR15
Flex I/O Adapter
1771-ACNR15
Adapter
Data Highway Plus link
Remote I/O link
PLC-5/40C

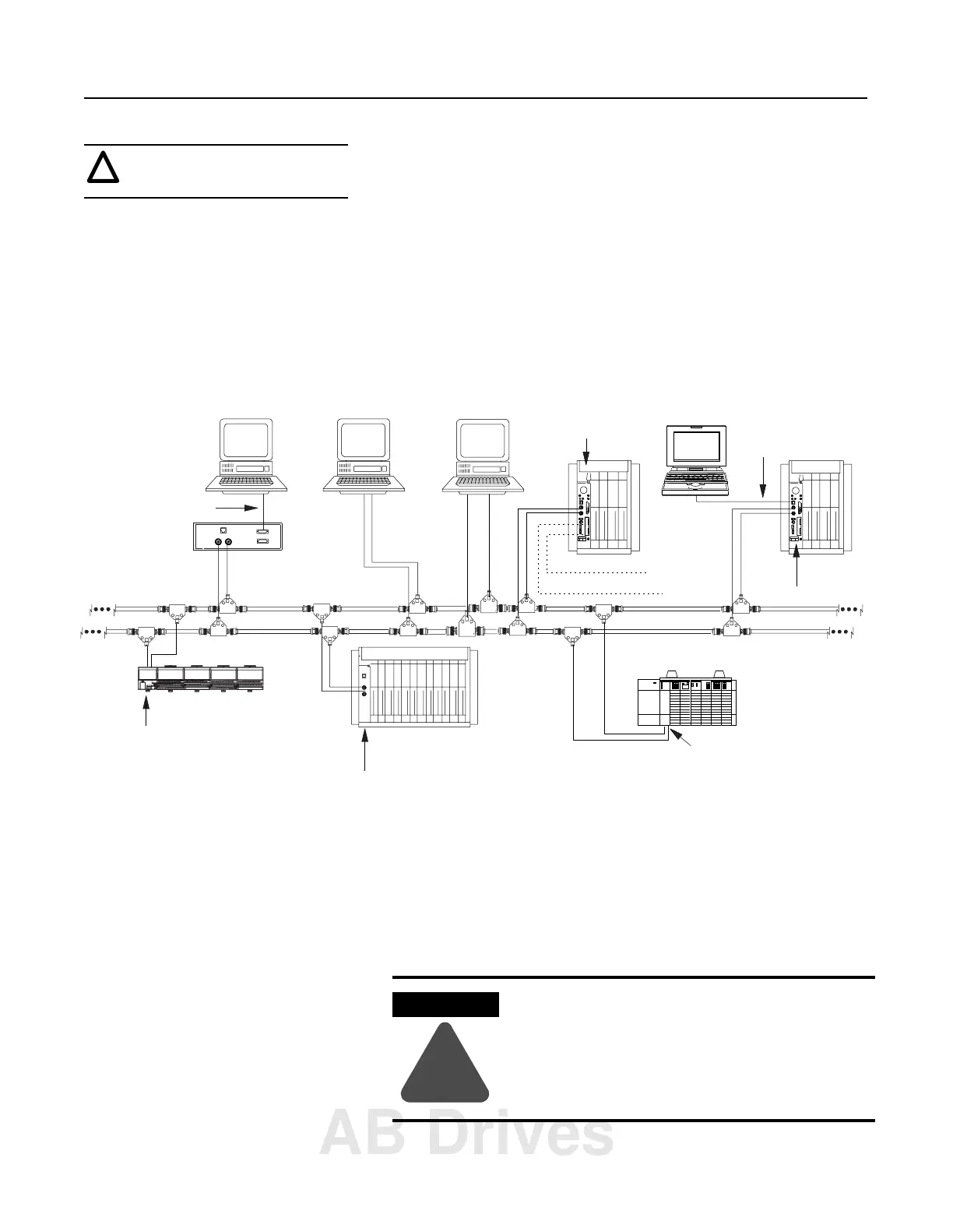

Examples of ControlNet Connection Types
Personal computer
with 1784-KTCX15 card
(ISA-based) and
your HMI or
programming software
Laptop computer with
1784-PCC card (PCMCIA-based)
and your HMI or
programming software
PLC-5/40C
1784-PCC1 to PLC-5 (NAP
port or any other NAP port)*
Personal computer
with PCIC card (PCI-based)
and your HMI
or programming software
Tap (4 choices)
1786-TPR
1747-ACNR15
Adapter
Tap (4 choices)
1786-TPR
*A programming terminal connected through this cable is counted as a node and must have a unique address.
**Redundant media not required.
If you connect or disconnect the ControlNet cable
with power applied to this processor or the device on
the other end of the cable, an electrical arc can occur.
This could cause an explosion in hazardous location
installations. Be sure that power is removed or the
area is nonhazardous before proceeding.
