Publication 1760-GR001C-EN-P - April 2005
2-20 Drawing a Circuit with Pico

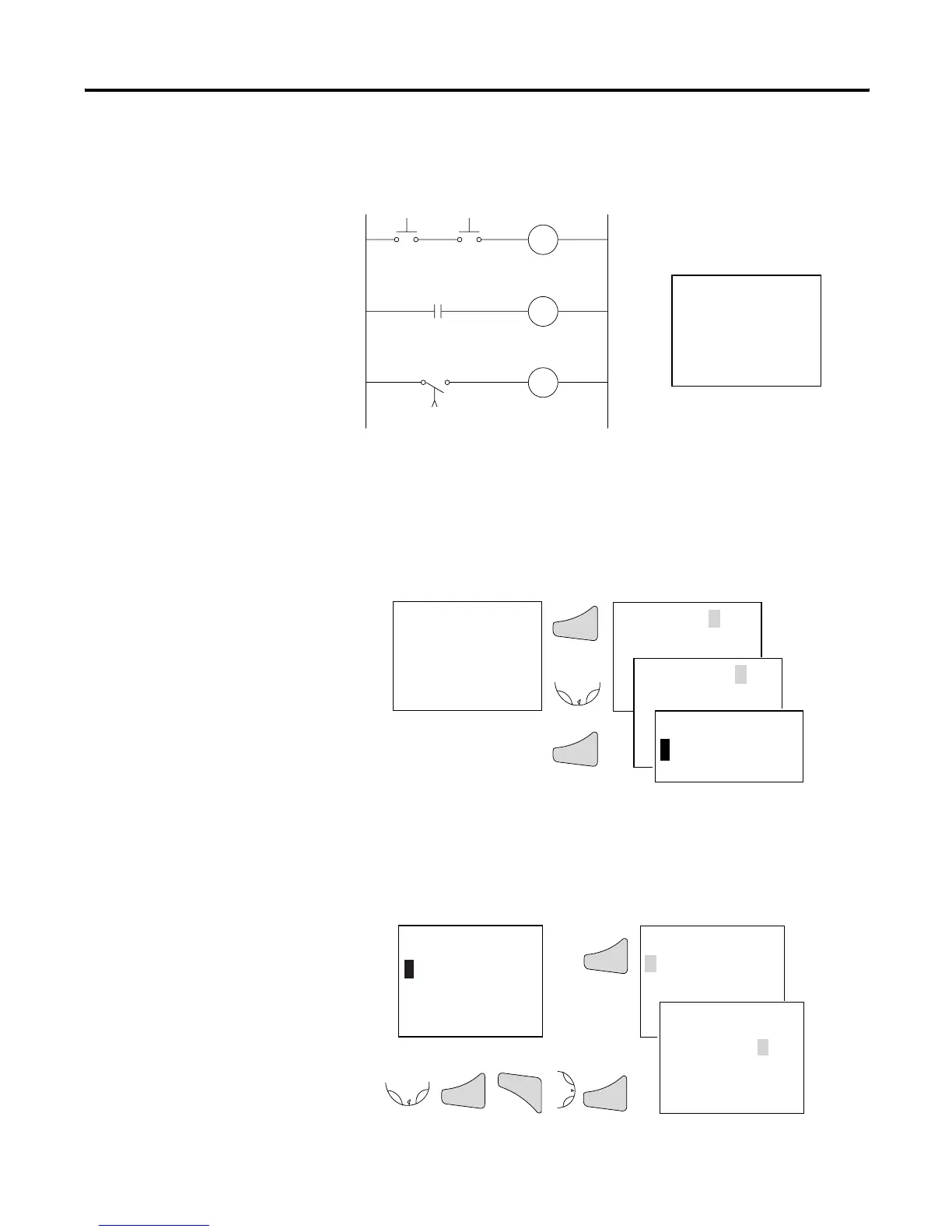

Example: Use a Function
Relay
Conventional Circuit
Select an Internal Marker Relay
Select Marker Contact and Connect to New Output Relay
I1-I2----{M1
M1-------TT1
T1-------{Q1
S1 S2
CR1
T1
M1
T1
CR1
10.0 sec
Pico switches M1 with
10 seconds delay.
Pico Circuit Diagram
I1-I2----{Q1
I1-I2----{Q1
I1-I2----{M1
I1-I2----{M1
Ok
Ok
Start Circuit from first example
Position cursor on “Q”
2 X
I1-I2----{M1
I1-I2----{M1
I1
I1-I2----{M1
M1------ {Q1
Ok
Ok
Ok
Alt
2 X
2 X
3 X
