Publication 1760-GR001C-EN-P - April 2005
A-4 Specifications

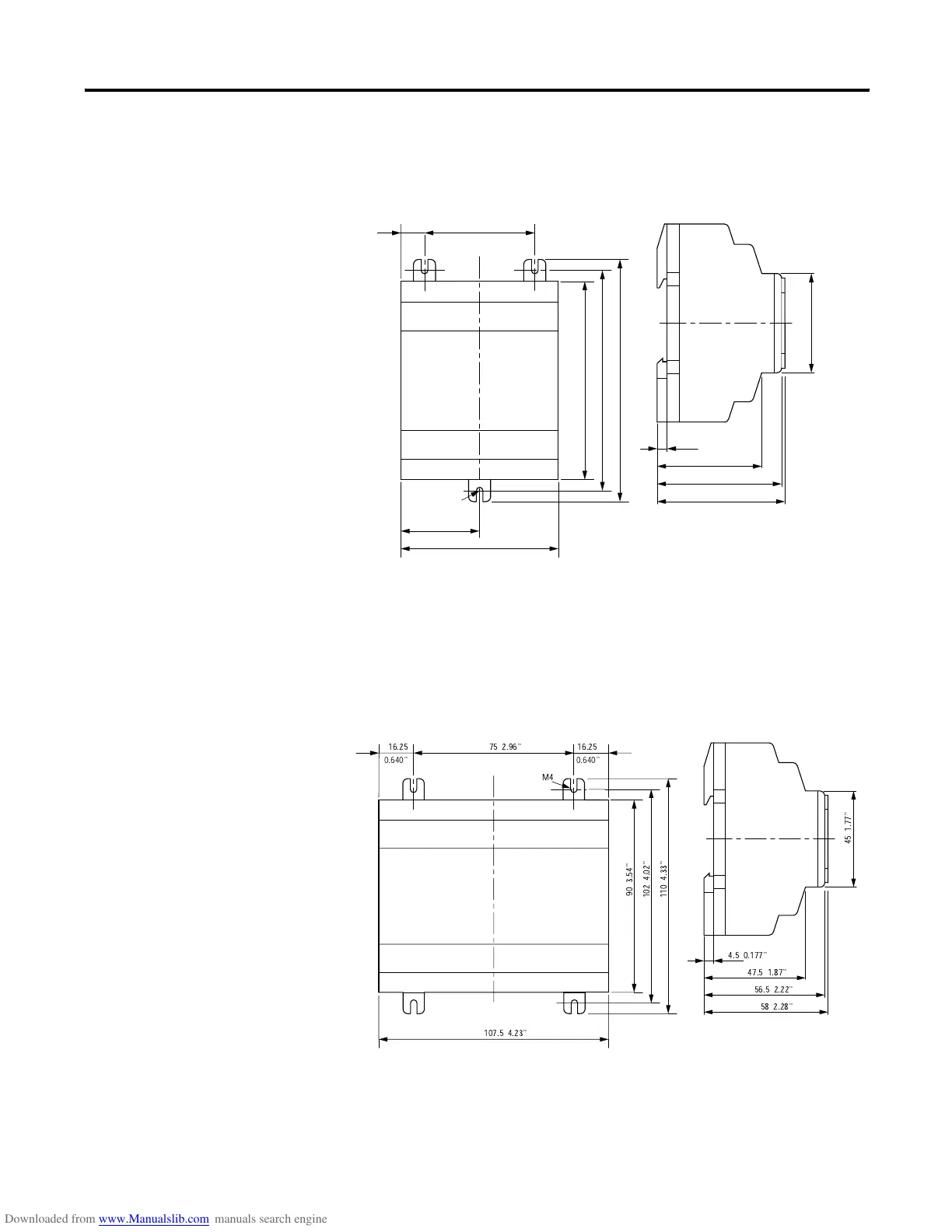

Dimensions
Pico 1760-L12xxx
Pico 1760-L18xxx, 1760-L20xxx and Expansion Modules
10.75 50 1.97"
M4
35.75 1.41"
71.5 2.81"
90 3.54"
102 4.02"
110 4.33"
47.5 1.87"
56.5 2.22"
58 2.28"
45 1.77"
4.5 0.177"
0.423"
90 3.54"
102 4.02"
110 4.33"
M4
107.5 4.23"
75 2.96" 16.2516.25
47.5 1.87"
56.5 2.22"
58 2.28"
45 1.77"
4.5 0.177"
0.640"0.640"
