Rockwell Automation Publication 750-IN001O-EN-P - October 2014 245
I/O Wiring Chapter 5

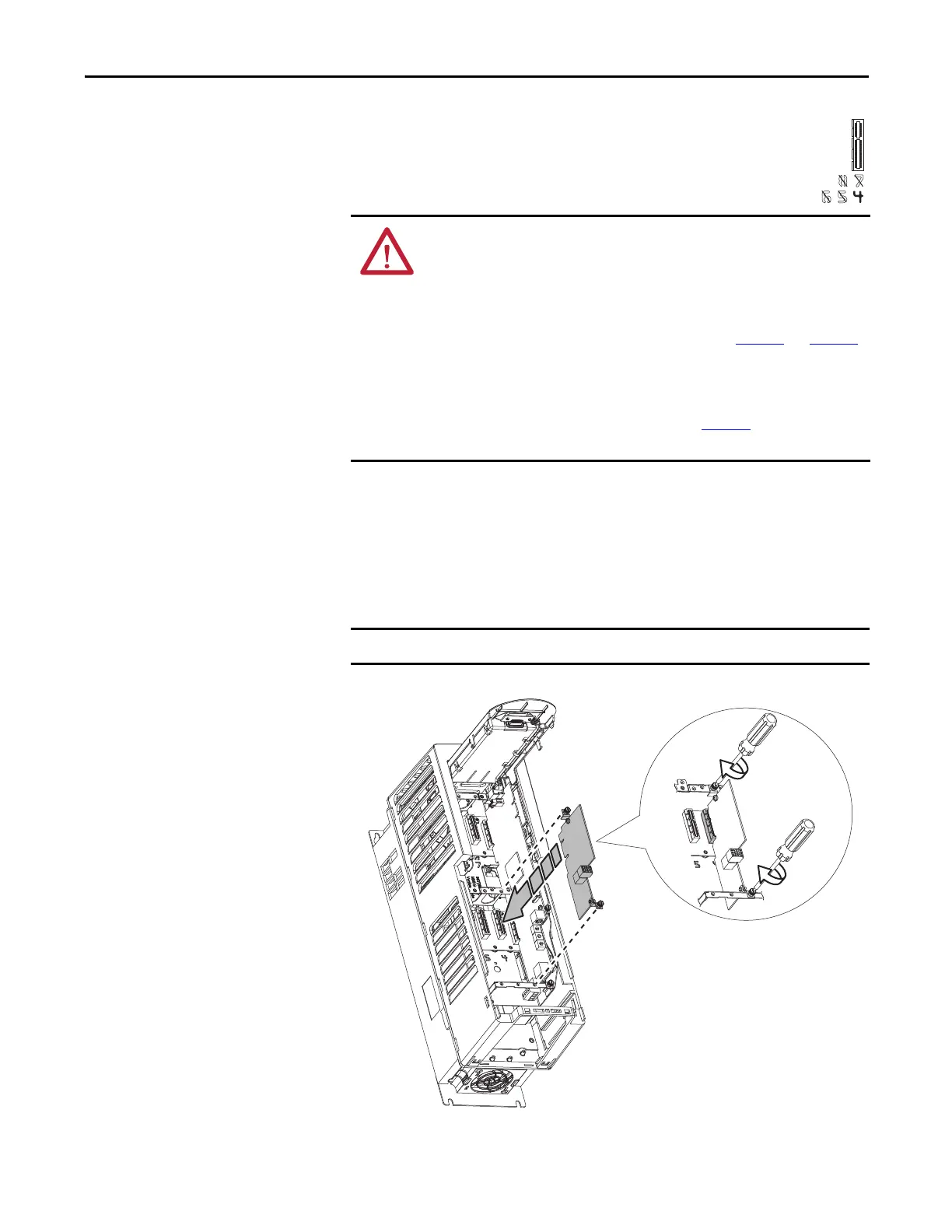

Option Module Installation
Compatible port locations may be restricted for each module. An icon
with position number(s) is provided to indicate which option module
ports are compatible. For example, the icon to the right indicates that
the option module is only compatible with port 4.
To install an option module:
1. Firmly press the module edge connector into the desired port.
2. Tighten the top and bottom retaining screws.
– Recommended torque = 0.45 N•m (4.0 lb•in)
– Recommended screwdriver = T15 Hexalobular
ATTENTION: Hazard of equipment damage exists if an option module is
installed or removed while the drive is powered. To avoid damaging the drive,
verify that the voltage on the bus capacitors has discharged completely and all
control power is removed before performing any work on the drive.
Frames 1…7: Measure the DC bus voltage at the Power Terminal Block by
measuring between the +DC and -DC terminals (refer to Figure 88
and Figure 89
for location), between the +DC terminal and chassis, and between the -DC
terminal and the chassis. The voltage must be zero for all three measurements.
Frames 8…10: Measure the DC bus voltage at the DC+ and DC- TESTPOINT
sockets on the front of the power module (refer to Figure 92
). The voltage must be
zero
Do not over-tighten retaining screws.
