C-8 Connector Descriptions

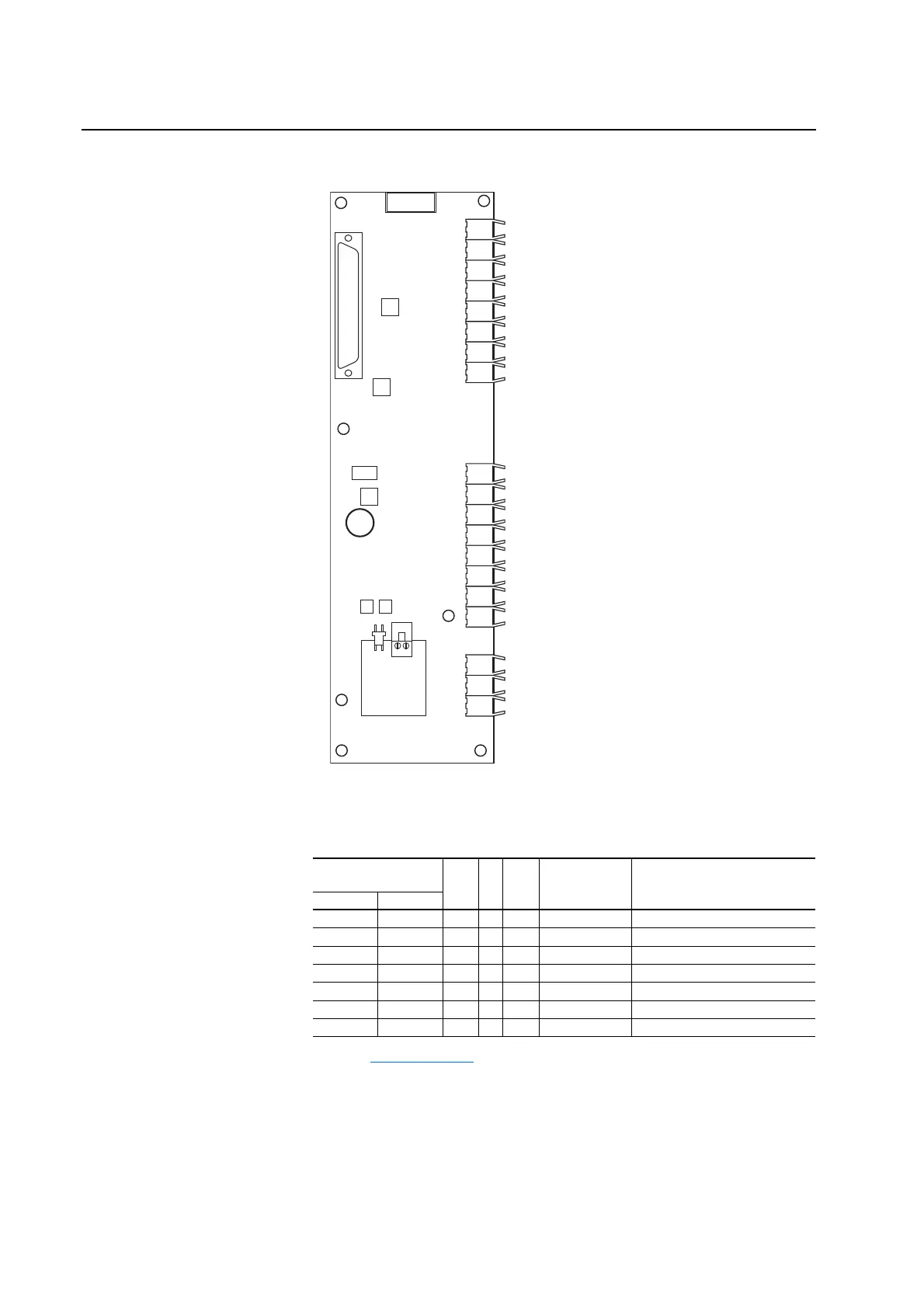

Figure C.5 PowerFlex 700H Star Coupler Circuit Board Connectors
Table C.I PowerFlex 700H and 700S Interface Board to ASIC Board on Power
Structure #1 Fiber Optic Connections
Interface Board Fiber
Optic Connector
Type to Type
ASIC Board
Fiber Connector
(1)
(1)
Refer to Figure C.1 on page C-2 for ASIC board fiber-optic connectors.
Description: Reference to ASIC
Board700H 700S
H1 J8 TX . . . RX H1 Gate_Enable
H2 J9 TX . . . RX H2 U_Gate
H3 J10 TX . . . RX H3 V_Gate
H4 J11 TX . . . RX H4 W_Gate
H5 J12 TX . . . RX H5 A/D Convert
H6 J14 TX . . . RX H6 VBUS_RX
H7 J13 RX . . . TX H7 VBUS_TX
H8
H7
H6
H5
H4
H3
H2
H1
H18
H17
H16
H15
H14
H13
H12
H11
H23
H22
H21
X2
