Alpine CDE-W235BT Quick Reference Guide

8-EN
Accessory List
• Head Unit ..................................................................................1
• Power Cable ..............................................................................1
• Microphone ..............................................................................1
• Mounting Sleeve ......................................................................1
• Bracket Key ...............................................................................2
• Face Plate ..................................................................................1
• Screw (M5 × 8) ..........................................................................4
• Owner’s Manual..................................................................1 set
Turning Power On and Off
Press SOURCE to turn on the unit.
Note
• The unit can be turned on by pressing any other button except .
Press and hold SOURCE for at least 2 seconds to turn
off the unit.
Note
• The first time power is turned on, the volume will start from level 12.
Source Selection
Press SOURCE to change the source.
TUNER  DISC  USB AUDIO/IPOD
*1
 BT AUDIO
*2

AUXILIARY
*3
 TUNER
*1 Only when the iPod/iPhone is connected.
*2 Only when BT AUDIO is set to ON. Refer to “Setting the
BLUETOOTH Connection (BT IN)” on page 21.
*3 Only when AUX SETUP is set to ON. Refer to “Setting the AUX
SETUP Mode” on page 18.
Initial System Start-Up
Be sure to press the RESET button when using the unit for the first time,
after changing the car battery, etc.
1 Turn off the unit power.
2 Press RESET with a ballpoint pen or similar pointed object.
Adjusting Volume
Turn the Rotary encoder until the desired sound is
obtained.
Setting Time
1 Press and hold AUDIO/SETUP for at least 2 seconds to
activate the SETUP mode.
2 Turn the Rotary encoder to select GENERAL, and then
press ENTER.
AUDIO  GENERAL  DISPLAY  IPOD  BLUETOOTH
3 Turn the Rotary encoder to select the CLOCK ADJ mode,
and then press ENTER.
The time indication will blink.
4 Turn the Rotary encoder to adjust the hours while the
time indication is blinking.
5 When the hour has been adjusted, press ENTER.
6 Turn the Rotary encoder to adjust the minutes while the
time indication is blinking.
7 Press and hold AUDIO/SETUP for at least 2 seconds to
return to normal mode.
Notes
• To synchronize the clock to another clock/watch or radio time
announcement, press and hold ENTER for at least 2 seconds after
setting the “hour”. Minutes will reset to “00”. If the display shows over
“30” minutes when you do this, the time will advance one hour.
•Pressing  will return to the previous mode.
• Pressing and holding  for at least 2 seconds will return to normal
mode.
• If no operation is performed for 60 seconds, the unit will return to
normal mode automatically.

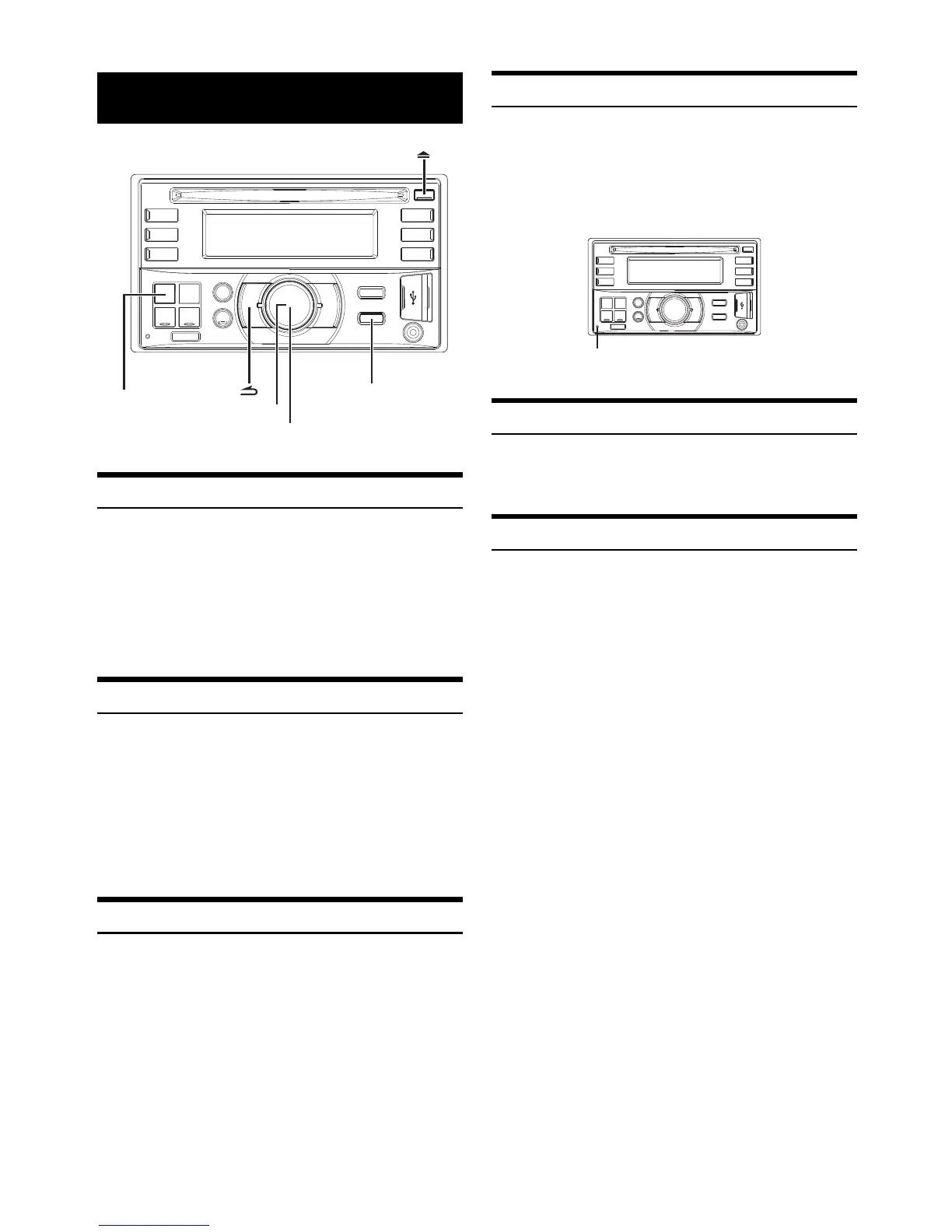

Getting Started
SOURCE/
/ENTER

AUDIO/SETUP
Rotary encoder
RESET button

Alpine CDE-W235BT Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Video formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
Impedance	4 Ω
Output power	200 W
RDS features	RT, TA
Product color	Multicolor
Volume control	Digital
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Display type	LCD
Display digits	28 digits
Display number of lines	2 lines
Video in	0
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, HSP, SSP
USB ports quantity	1
Apple docking compatibility	iPhone, iPod
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPod / iPhone / Nokia
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	160 mm
Width	178 mm
Height	100 mm
Weight	1600 g
Dimensions (WxDxH)	178 x 160 x 100 mm
