Connecting to an External Amplifier (POWER IC)
When an external amplifier is connected, sound quality can be
improved by stopping the power supply of the built-in amplifier.
 Setting item: POWER IC
Setting contents:
ON (Initial setting) / OFF
ON:
The speakers are driven by the built-in amplifier.
OFF:
Use this mode when the line output of this unit is used to drive an
external amplifier. In this setting, the head unit’s internal amplifier
is turned OFF and cannot drive speakers.
ON:
OFF:
Note
• No sound is produced by the system when the power output is set to
OFF.
Displaying the Text
Text information, such as the disc name and the track name, will be
displayed if playing a CD text compatible disc. It is also possible to
display the folder name, the file name and the tag, etc., while playing
MP3/WMA/AAC files.
Press VIEW.
The display will change every time the button is pressed.
Note
• When the SCROLLTYPE is set to SCR MANUAL, press and hold
VIEW for at least 2 seconds, the current text will be scrolled one time
(except Radio mode).
The display in Radio mode:
If there is PS (Programme Service Name)
PS (Programme Service Name)  RADIO TEXT 
PS (Programme Service Name)
If there is no PS (Programme Service Name)
FREQUENCY  RADIO TEXT  FREQUENCY
The display in CD mode:
TRACK NO./ELAPSED TIME  TEXT (DISC NAME)
*1

TEXT (TRACK NAME)
*1
 TRACK NO./ELAPSED TIME
The display in MP3/WMA/AAC mode:
FILE NO./ELAPSED TIME  FOLDER NO./FILE NO. 
FOLDER NAME  FILE NAME  ARTIST NAME
*2

ALBUM NAME
*2
 SONG NAME
*2
 FILE NO./ELAPSED TIME
The display in iPod mode:
TRACK NO./ELAPSED TIME  ARTIST NAME  ALBUM NAME 
SONG TITLE  TRACK NO./ELAPSED TIME
The display in BLUETOOTH Audio mode (CDE-W235BT only):
BT A/ELAPSED TIME
*3
 ARTIST NAME  ALBUM NAME 
SONG NAME  BT A/ELAPSED TIME
*1 Displayed during playback of a disc with CD text.
*2 ID3 tag/WMA tag
If an MP3/WMA/AAC file contains ID3 tag/WMA tag
information, the ID3 tag/WMA tag information is displayed
(e.g., song name, artist name, and album name). All other
tag data is ignored.
*3 Depending on the connected mobile phone, the elapsed time
may not be displayed.

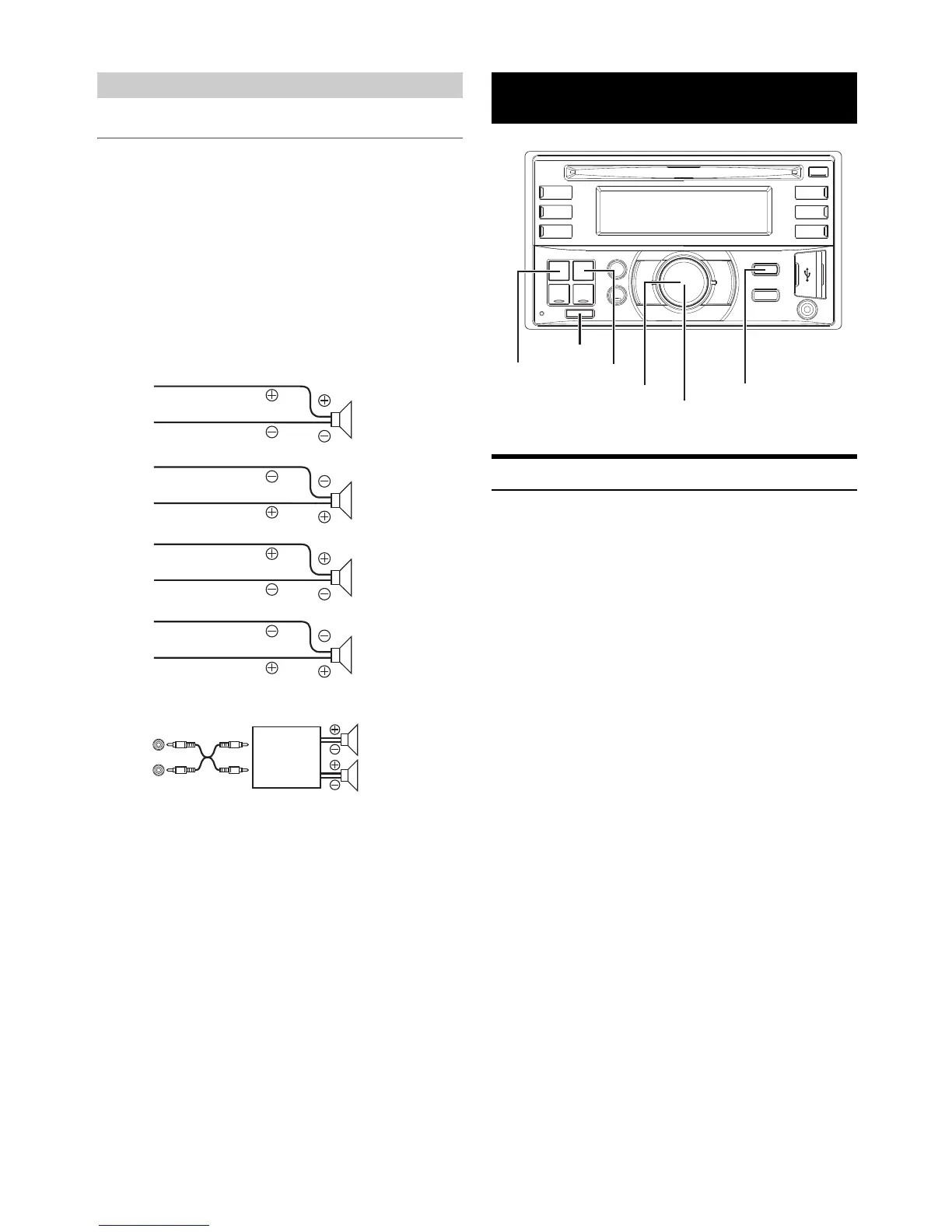

External Device
Speakers
SPEAKER
RIGHT FRONT
Front
Right
SPEAKER
RIGHT REAR
Rear
Right
SPEAKER
LEFT REAR
Rear
Left
SPEAKER
LEFT FRONT
Front
Left
Front
Left
Amplier
Front
Right
Other Functions
SOURCE/
/ENTER/OPTION

Rotary encoder

VIEW
BAND

Alpine CDE-W235BT Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Video formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
Impedance	4 Ω
Output power	200 W
RDS features	RT, TA
Product color	Multicolor
Volume control	Digital
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Display type	LCD
Display digits	28 digits
Display number of lines	2 lines
Video in	0
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, HSP, SSP
USB ports quantity	1
Apple docking compatibility	iPhone, iPod
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPod / iPhone / Nokia
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	160 mm
Width	178 mm
Height	100 mm
Weight	1600 g
Dimensions (WxDxH)	178 x 160 x 100 mm
