21-EN
When displaying Text, the following indicators are lit according to the
mode.
*1 Tag information:
If there is no tag information, “ARTIST”/“ALBUM”/“SONG” is
displayed.
*2 The root folder is displayed as “ROOT”.
*3 If there is no Text (Disc Name or Track Name), “DISC TEXT”/
“TRACK TEXT” is displayed.
*4 CDE-W235BT only.
Text compatible CDs contain text information such as the disc name and
track name. Such text information is referred to as “text”.
Notes
• Some characters may not be displayed correctly with this device,
depending on the character type.
• “NO SUPPORT” is displayed if text information is not supported by the
unit.
• The text or tag information may not be correctly displayed, depending
on the contents.

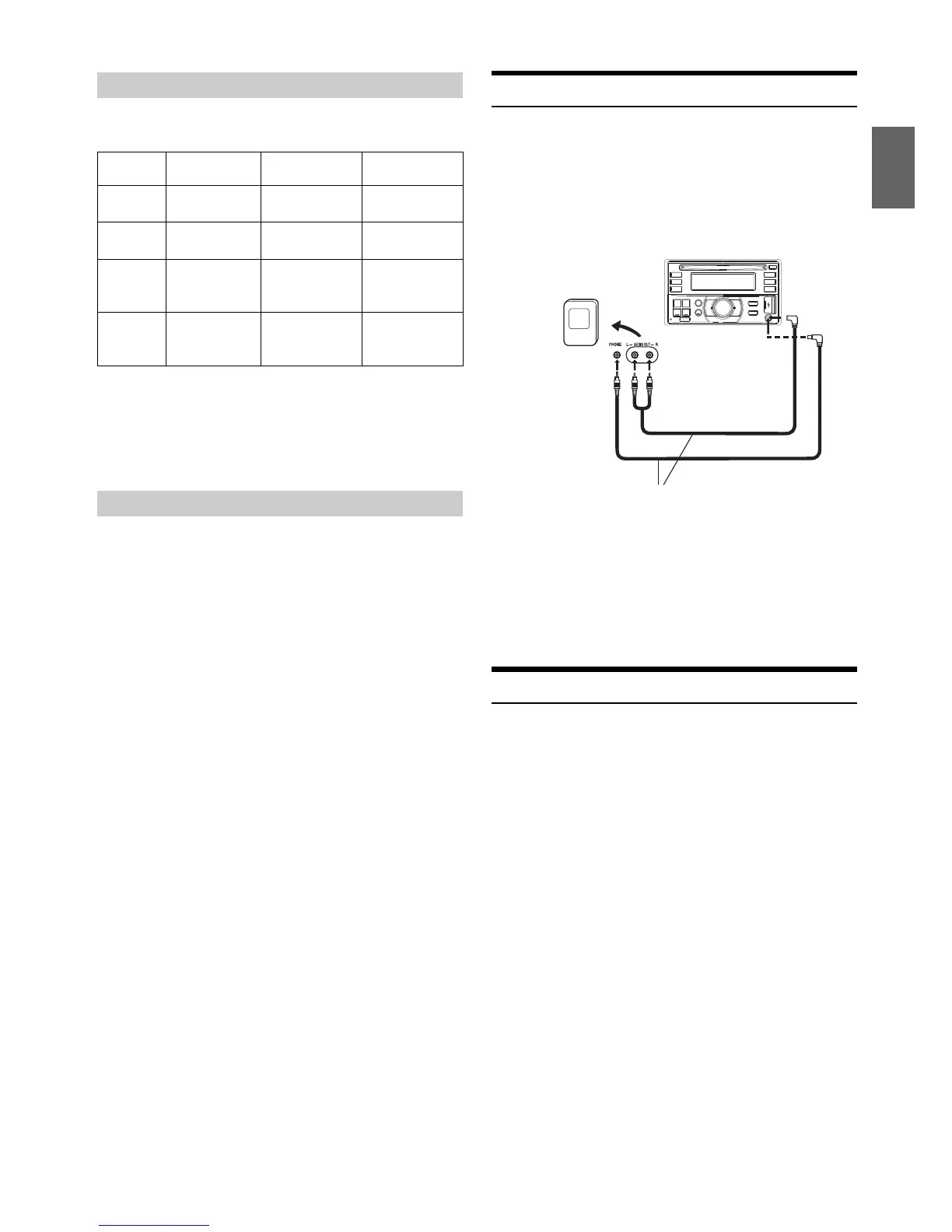

Using the Front AUX Input Terminal
Connect a portable music player, etc. by simply connecting it to the
input on the front panel. An optional adapter cable is required (standard
RCA to 3.5ø mini-phono plug or 3.5ø to 3.5ø mini phono plug).
Press SOURCE, and select the AUXILIARY mode to
listen to the portable device.
Notes
• This function is available only when AUX SETUP is set to ON. For
details, refer to “Setting the AUX SETUP Mode” on page 23.
• If a USB Memory is directly connected to the USB terminal, the size or
shape may interfere with driving operations, therefore, avoid connecting
an AUX input terminal and a USB Memory at the same time.
Option Menu Setting
You can quickly adjust the setting items relevant to the current SOURCE
by using Option Menu.
1 Press and hold ENTER/OPTION for at least 2 seconds
to activate the Option menu of the current source.
Note
• The option menu varies depending on the source.
2 Turn the Rotary encoder to select the desired setting
item, and then press ENTER.
3 Turn the Rotary encoder to change the setting, and then
press ENTER.
After the setting, the display will return to the current source
automatically.
 Setting item:
TUNER mode:
TUNER SET
*1
 VOL LV ADJ
*2
 DIMMER
*3
DISC mode:
CD SET
*4
 VOL LV ADJ
*2
 DIMMER
*3
USB mode:
VOL LV ADJ
*2
 DIMMER
*3
iPod mode:
IPOD CONT
*5
 IPOD SET
*6
 VOL LV ADJ
*2
 DIMMER
*3
About the indication display
Indicator/
Mode
CD Mode
MP3/WMA/AAC
Mode
iPod/iPhone/BT
AUDIO
*4
Mode
 —
Folder Name
*2
being displayed
—
 —
Artist Name
*1
being displayed
Artist Name
*1
being displayed

Text (Disc
Name
*3
) being
displayed
Album Name
*1
being displayed
Album Name
*1
being displayed

Text ( Track
Name
*3
) being
displayed
Song Name
*1
/
File Name
being displayed
Song Name
*1
being displayed
About “Text”
Portable player, etc.
Main unit
or
Optional adapter cable (RCA pin
plugs [red, white] 3.5ø miniplugs)
or (3.5ø miniplugs).

Alpine CDE-W235BT Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Video formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
Impedance	4 Ω
Output power	200 W
RDS features	RT, TA
Product color	Multicolor
Volume control	Digital
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Display type	LCD
Display digits	28 digits
Display number of lines	2 lines
Video in	0
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, HSP, SSP
USB ports quantity	1
Apple docking compatibility	iPhone, iPod
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPod / iPhone / Nokia
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	160 mm
Width	178 mm
Height	100 mm
Weight	1600 g
Dimensions (WxDxH)	178 x 160 x 100 mm
