iPod does not play and no sound is output.
• The iPod has not been recognised.
– Reset this unit and the iPod. Refer to “Initial System Start-Up” on
page 9. To reset the iPod, refer to the Owner’s Manual of the iPod.
•No CD is inserted.
–Insert a CD.
• Although a disc is inserted, “NO DISC” is displayed and the unit does
not start to play or eject the disc.
– Remove the disc by following these steps:
Press the  button again for at least 2 seconds.
If the disc still does not eject, consult your Alpine dealer.
•Mechanism error.
1 Press the  button and eject the CD.
If not ejecting, consult your Alpine dealer.
2 When the error indication remains after ejecting, press the 
button again.
If the error indication still does not turn off after pressing the 
button for a few times, consult your Alpine dealer.
• When “ERROR” is displayed:
If the disc cannot be ejected by pressing , press the RESET button
(Refer to “Initial System Start-Up” on page 9) and press  again.
If the disc still cannot be ejected, consult your Alpine dealer.
• A copy-protected WMA file was played back.
– You can only play back non-copy-protected files.
• A sampling rate/bit rate not supported by the unit is used.
– Use a sampling rate/bit rate that is supported by the unit.
• A USB device that is not supported by the unit is connected.
– Connect a USB device that is supported by the unit.
• A USB Memory is not connected.
– Make sure the USB Memory device is correctly connected and the
cable is not excessively bent.
• No song (file) is stored in the USB Memory.
– Connect the USB Memory device after storing songs (files).
• A copy-protected WMA file was played back.
– You can only play back non-copy-protected files.
• A sampling rate/bit rate not supported by the unit is used.
– Use a sampling rate/bit rate that is supported by the unit.
• Text information that is not recognizable by the unit has been input.
– Use a USB Memory device with input text information that is
supported by the unit.
• Communication error
– Turn the ignition key off, and then set to ON again.
– Check the display by reconnecting between the USB Memory and
this unit.
• Power surge error
Excessive voltage/current is supplied to the USB Memory.
– Try another USB Memory, if available.

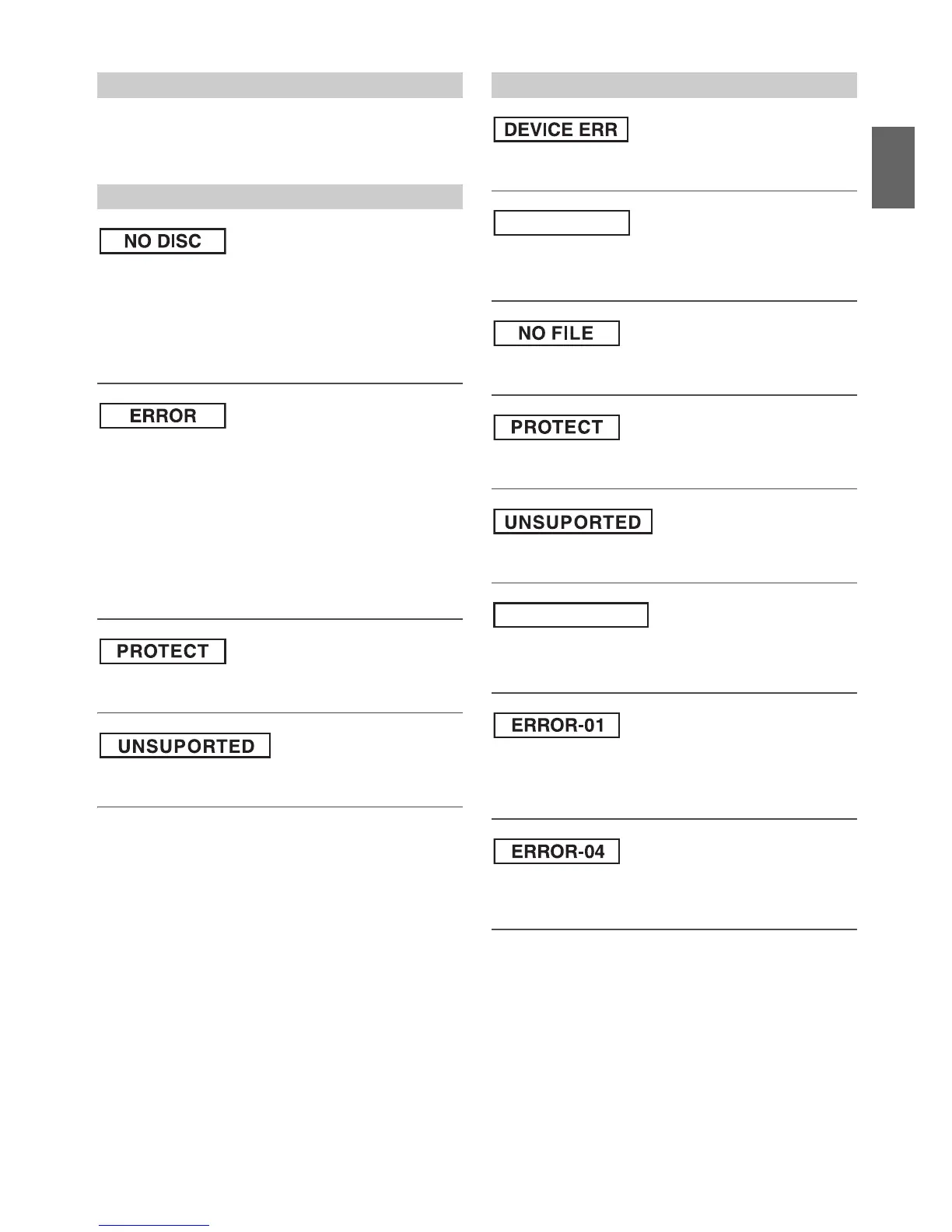

iPod
Indication for CD Player
(CDE-W235BT only)
Indication for USB Memory
NO DEVICE
(CDE-W235BT only)
NO SUPPORT

Alpine CDE-W235BT Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Video formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
Impedance	4 Ω
Output power	200 W
RDS features	RT, TA
Product color	Multicolor
Volume control	Digital
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Display type	LCD
Display digits	28 digits
Display number of lines	2 lines
Video in	0
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, HSP, SSP
USB ports quantity	1
Apple docking compatibility	iPhone, iPod
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPod / iPhone / Nokia
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	160 mm
Width	178 mm
Height	100 mm
Weight	1600 g
Dimensions (WxDxH)	178 x 160 x 100 mm
