COMPONENTS
Ve ct or ™ H Se ries ▪ S ervice Ma nual ▪ MN -4 654 4 ▪ Rev 0 1 ▪ 11/19
19

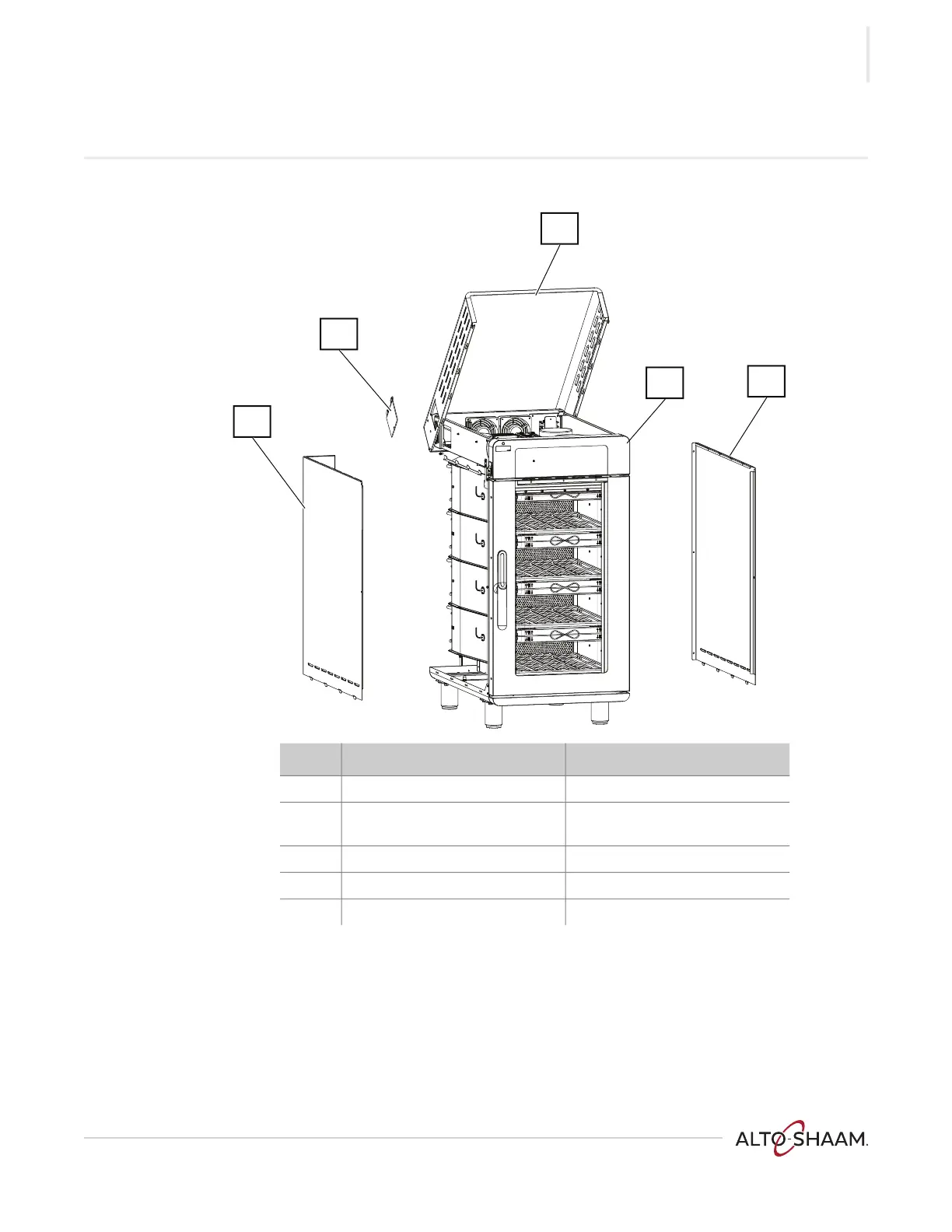

Component Access Panels Identification
VMC-PHD-007539
2
3
1
5
4
Ref. Description Provides access to
1 Top service panel Electrical components
2 Left service panel Heating elements, catalyst, and
thermocouples
3 Circuit breaker access panel Circuit breakers
4 Control panel Interface board
5 Right service panel Blower motors and cooling fans
