Alto-Shaam Vector VMC-H4H Service Manual

COMPONENTS
Ve ct or ™ H Se ries ▪ S ervice Ma nual ▪ MN -4 654 4 ▪ Rev 0 1 ▪ 11/19
35

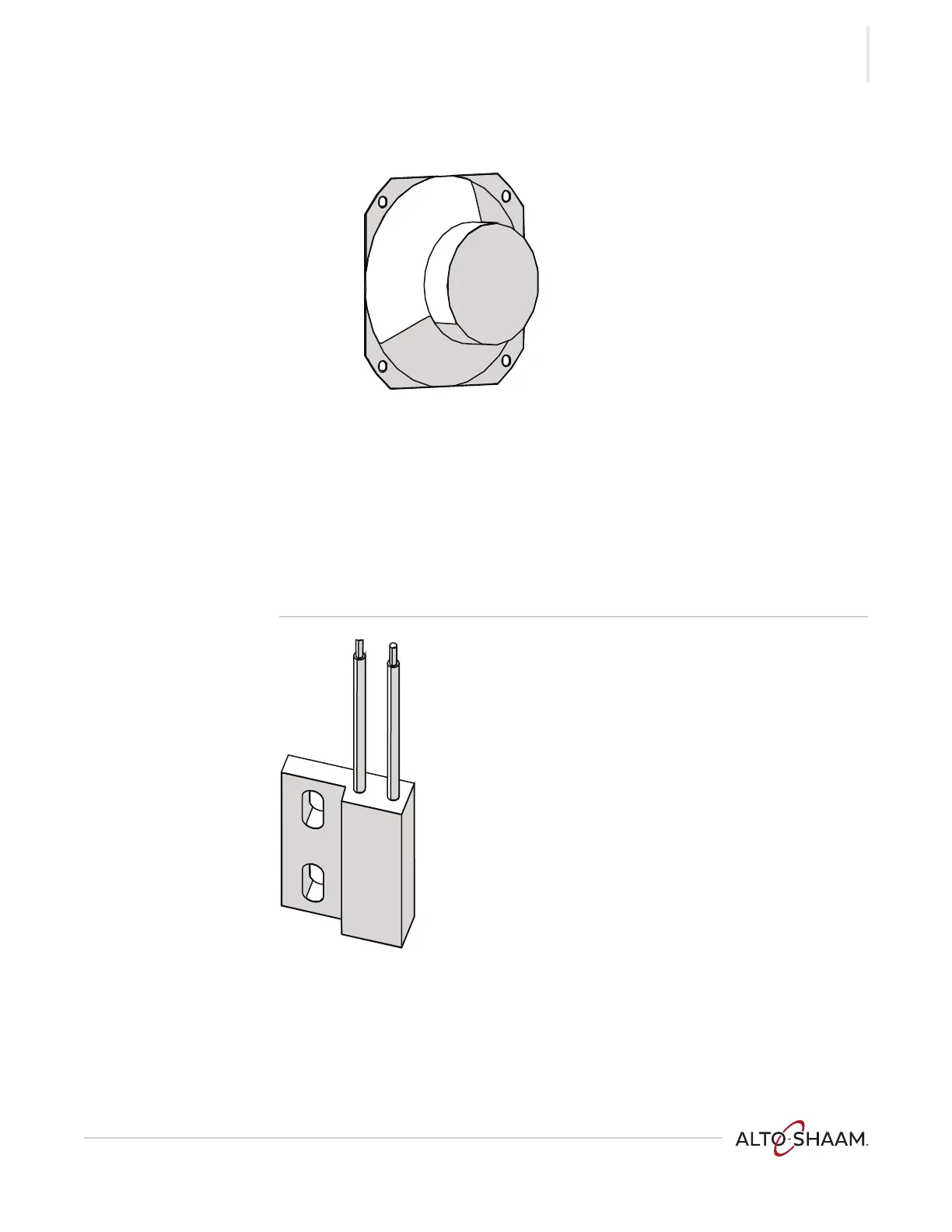

Speaker
Door Switch
▪ Door closed 0 Ohms; 0 VDC across terminals 1 and 2 of connector P3 on the
control board.
▪ Door open Infinite Ohms; 8 VDC across terminals 1 and 2 of connector P3 on the
control board.
VMC-PHD-001995
8 Ohms
VMC-PHD-001999
