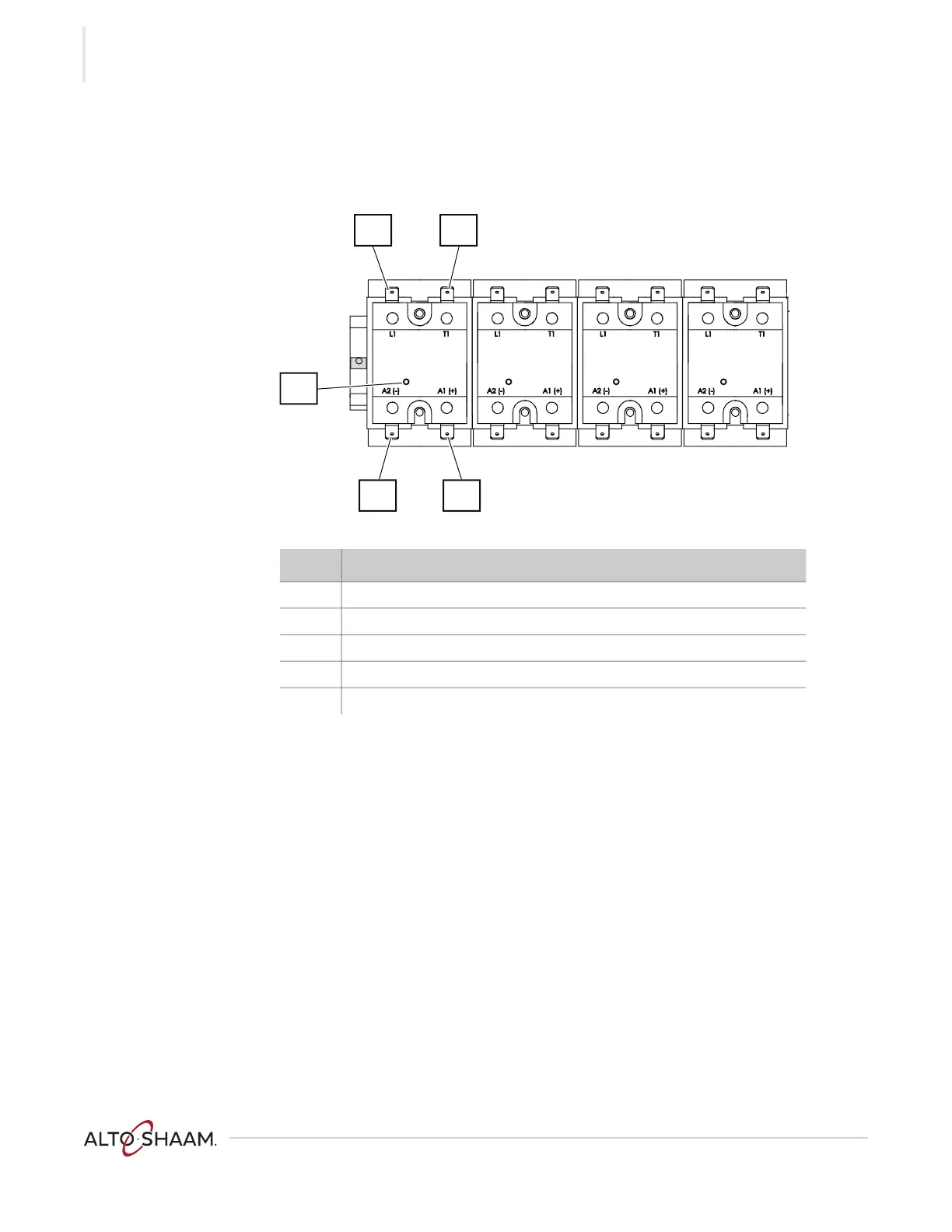

Solid State Relay (SSR)
Heater element control. One SSR for each chamber.
Ref. Description
1 L1 terminal, AC line voltage into the SSR
2 T1 terminal, AC load voltage to the heating element
3 Call for heat indicator light
4 A2 (-) terminal, DC control voltage from the control board to the SSR
5 A2 (+) terminal, DC control voltage from the control board to the SSR
1 234
VMC-PHD-001923
1 2
4
5
3
