Disassembly
33 RS2220001 Rev. 2
WARNING
To avoid the risk of electrical shock, personal injury, or
death, disconnect power to oven and discharge
capacitors before following any disassembly procedure.

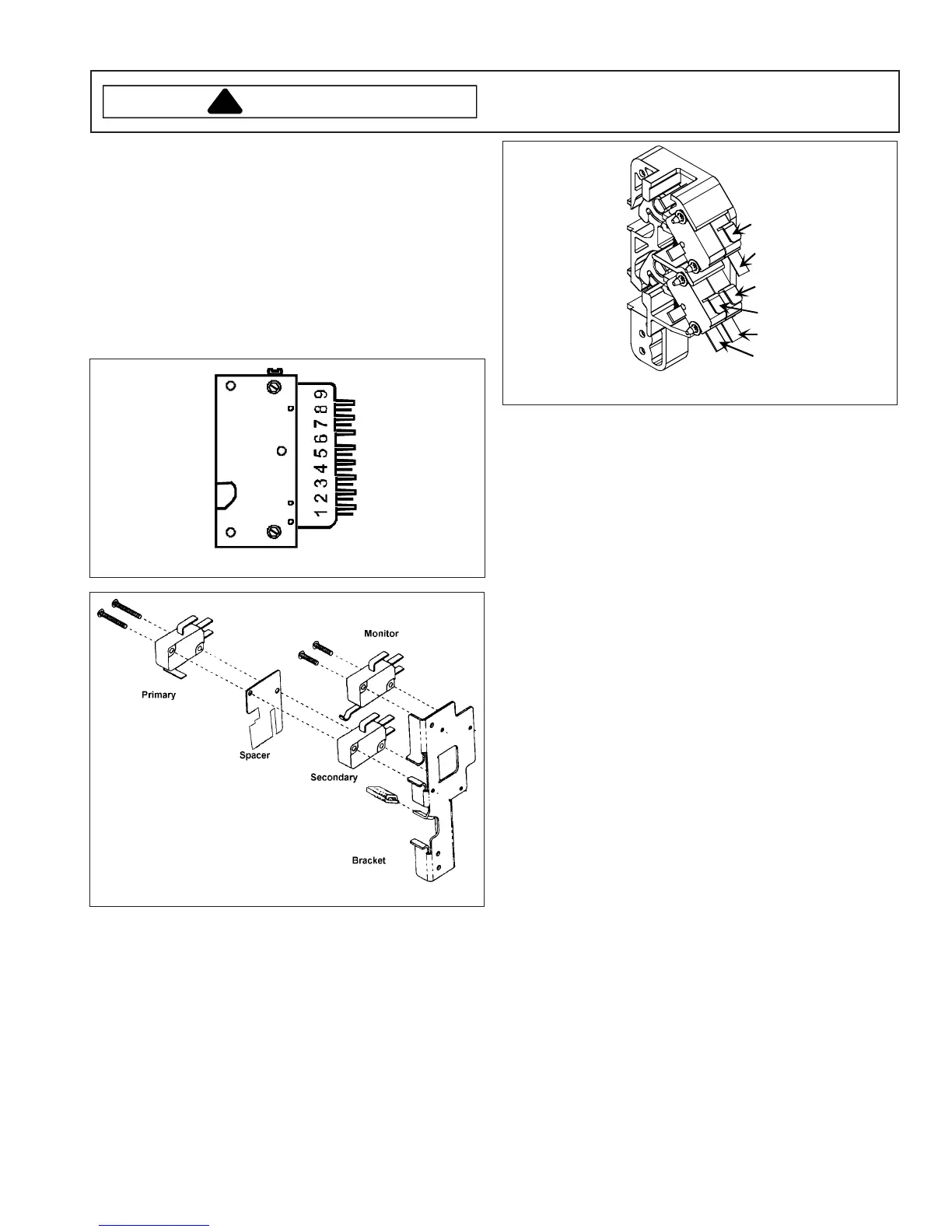

Interlock Switch Assembly
1. Remove outer case.
2. Disconnect wiring.
3. Remove mounting screws securing mounting bracket
to oven cavity and remove switch assembly from
oven.
4. Re-connect wires to switch and check operation of
monitor circuit before operating the oven.
NOTE: When the line fuse is open on models RC27 and
KFC1, the interlock switches and the power
relay must be replaced.
Type 1
Type 2
Adjustment
1. To adjust interlock switch assembly, close door.
2. Loosen bottom screw on the interlock switch
assembly, allowing the switch assembly to move in or
out.
3. With door closed, push forward on interlock assembly
to engage door latch. Then pull back on interlock
assembly until door is "snug" against front oven
cavity and tighten bottom screw.
4. The door will remain latched when proper adjustment
is made.
7
8
2
4
3
5
Type 3
Top Rear Magnetron
1. Removing outer case.
2. Remove top right air baffle by removing mounting
screw.
3. Remove wires from thermal protectors and
magnetron.
4. Remove center air baffle by removing two mounting
screws located in top of the oven, do not attempt to
remove air baffle at this time.
5. Remove four magnetron mounting nuts.
6. Remove magnetron and center air baffle.
7. When replacing the magnetron, verify the wire mesh
gasket is reinstalled.
NOTE: When reinstalling magnetron, slide left air baffle
on magnetron before placing magnetron in
place.
Top Front Magnetron
1. Remove outer case.
2. Disconnect wire to thermal protectors and
magnetron.
3. Remove low voltage circuit board.
4. Remove two left air baffle mounting screws (do not
attempt to remove air baffle at this time).
5. Remove four magnetron mounting screws.
6. Remove left air baffle and magnetron.
7. When replacing the magnetron, verify the wire mesh
gasket is reinstalled.
NOTE: Be sure to slide left air baffle on magnetron
before reinstalling the magnetron.
