Disassembly
RS2220001 Rev. 2 34
WARNING
To avoid the risk of electrical shock, personal injury, or
death, disconnect power to oven and discharge
capacitors before following any disassembly procedure.
Bottom Magnetron
1. Remove outer case.
2. Disconnect wires from the magnetron thermal
protectors and the magnetron.
3. Remove bottom magnetron air duct.
4. Remove middle baffle mounting screw and slide air
baffle out of the way.
5. Place unit on its left side.
6. Remove bottom access panel.
7. Remove four magnetron mounting nuts.
8. Remove magnetron.
Installation
1. Install magnetron - do not tighten nuts.
2. Install magnetron air baffle.
3. Tighten magnetron mounting nuts.
4. Reinstall middle air baffle.
5. Install bottom access cover.
6. Connect wiring to magnetron and magnetron thermal
protectors.
7. When replacing the magnetron, verify the wire mesh
gasket is reinstalled.
8. Install outer case.
Magnetron and Control Thermal Protectors
(TCO)
1. Remove outer case.
2. Remove wiring from selected thermal protector.
3. Remove 1/8" allen screw/phillips screw used to
mount thermal protectors.
Bottom Access Panel
1. Place oven on side or back.
2. Remove single bottom screw.

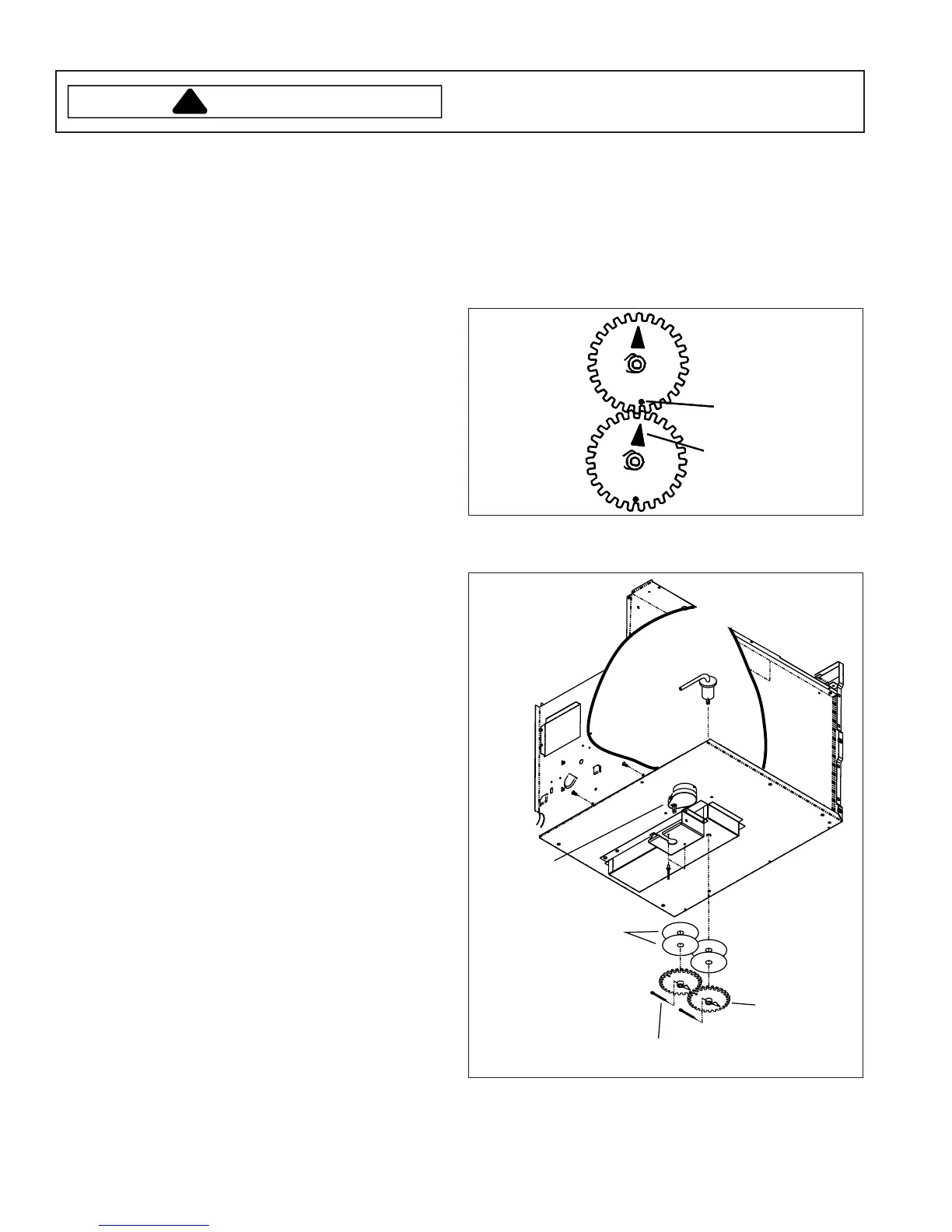

Bottom Stirrer Motor
1. Remove bottom access panel.
2. Remove antenna gear.
3. Disconnect brown motor wires from white and orange
chassis wires.
4. Remove two mounting rivets and remove motor.
NOTE: Do not remove bottom antenna gear when
removing motor.
Arro
Dot
NOTE: Gears are aligned by aligning the arrows to the
dots on gears.
Antenna
Gear
Cotter
Pin
Nylon
Washer
ntenna
Motor
NOTE: Nylon washers must be installed between
antenna gears and cavity.
To Next Page
