Aprilia Consumer Service Spa
Technical Service and Training
Release 4 july 99
This material is didactic and
may be changed following the technical
development of the product
MANIFOLD PRESSURE SENSOR:
This sensor reads the pressure in the air cleaner box and provides a linear voltage in the range of 1 to 4.2 Volts
to the control unit. It must be supplied with a continuous voltage of +5 Volts (provided by the control unit). The
operating pressure ranges from13.3 to 120 Kpa (abs).

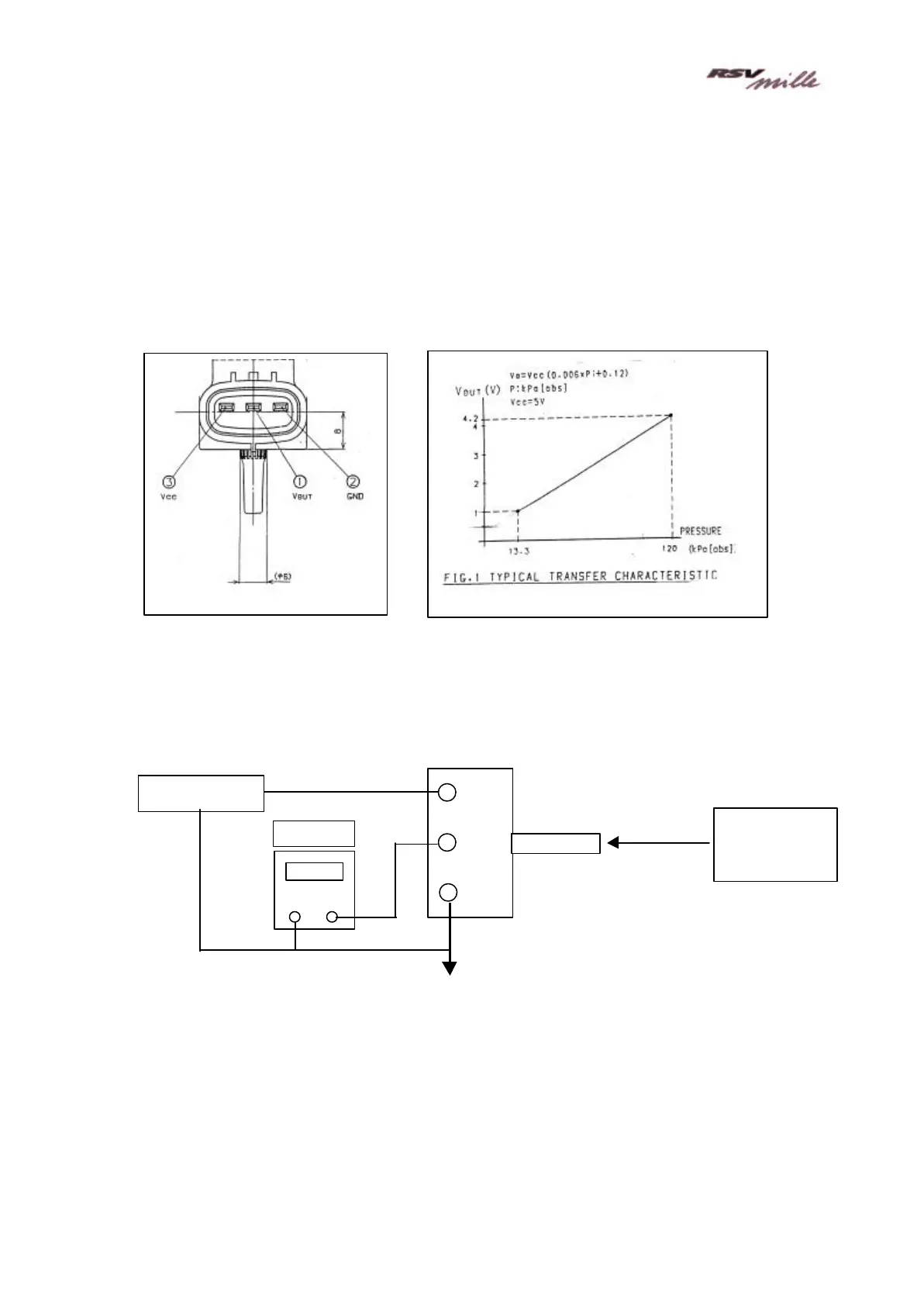

The characteristic of the sensor is:
Vo=Vcc*(0.006*Pi+0.12) [Volts]
The figure shows the instrumental test phase for the sensor in question:
GND
Vc
Vo
+ 5 Volt DC
Pressure Range
14 to 120 KPa
