Aprilia Consumer Service Spa
Technical Service and Training
Release 4 july 99
This material is didactic and
may be changed following the technical
development of the product

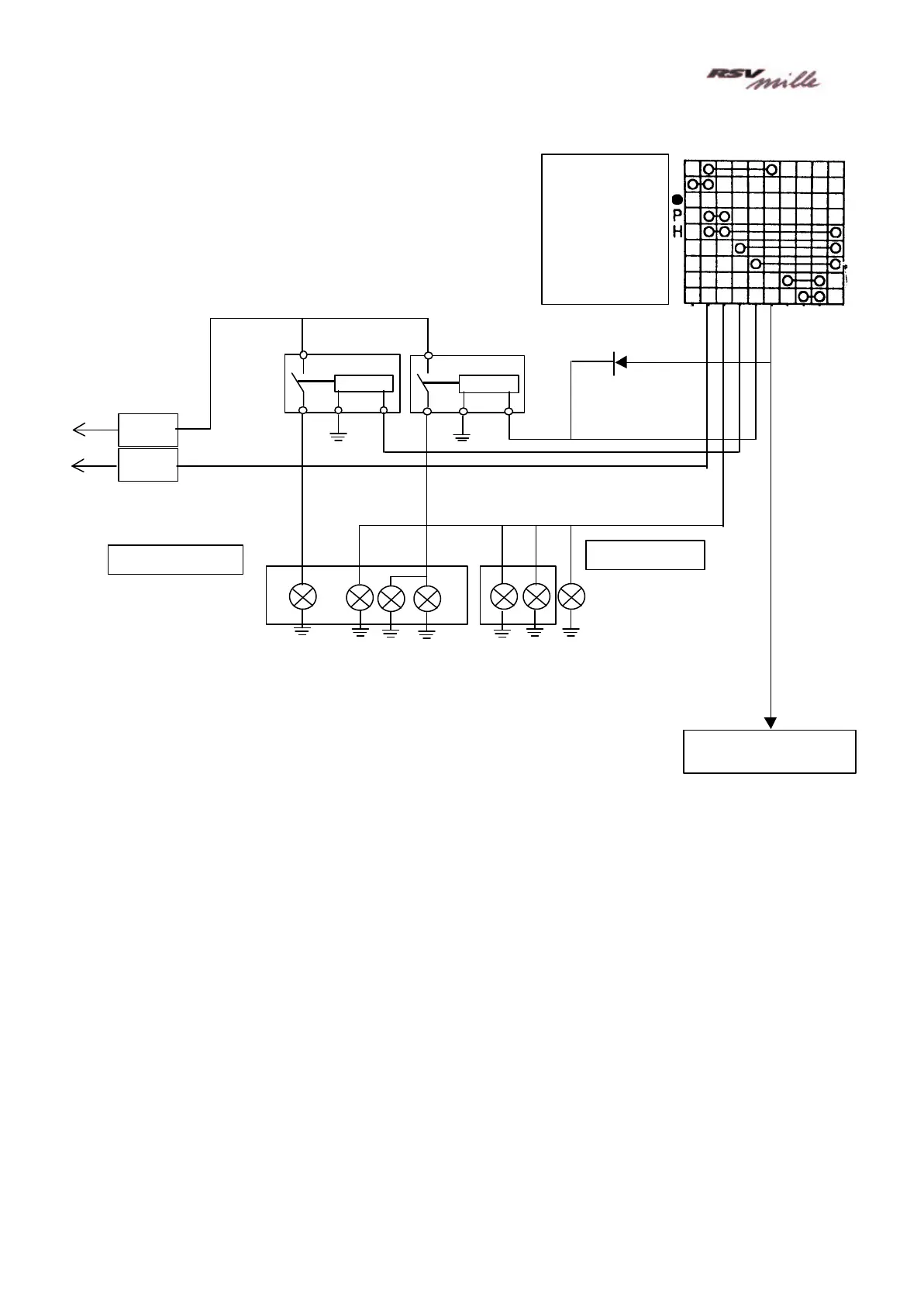

LIGHT WIRING DIAGRAM
PASSING/LAP
CLAXON
LIGHTS
LIGHTS P
LIGHTS H
H - Lo
H – HI
TURN R
DISPLAY CRONOMETRO
A
D
36 34 35 35
72 72 63
31
32
29
67
LEGENDA:
29= SECONDARY FUSES
31= MAIN BEAM LIGHTS RELAY
32= DIPPED BEAM LIGHTS RELAY
34= FRONT SIDE LIGHTS
35= MAIN BEAM LIGHTS
36= DIPPED BEAM LIGHTS
37= TAILLIGHT
63= DASHBOARD LIGHTS
67= PASSING/LAP DIODE
D= 15 AMP FUSE
FANALE ANTERIORE
FANALE POST.
