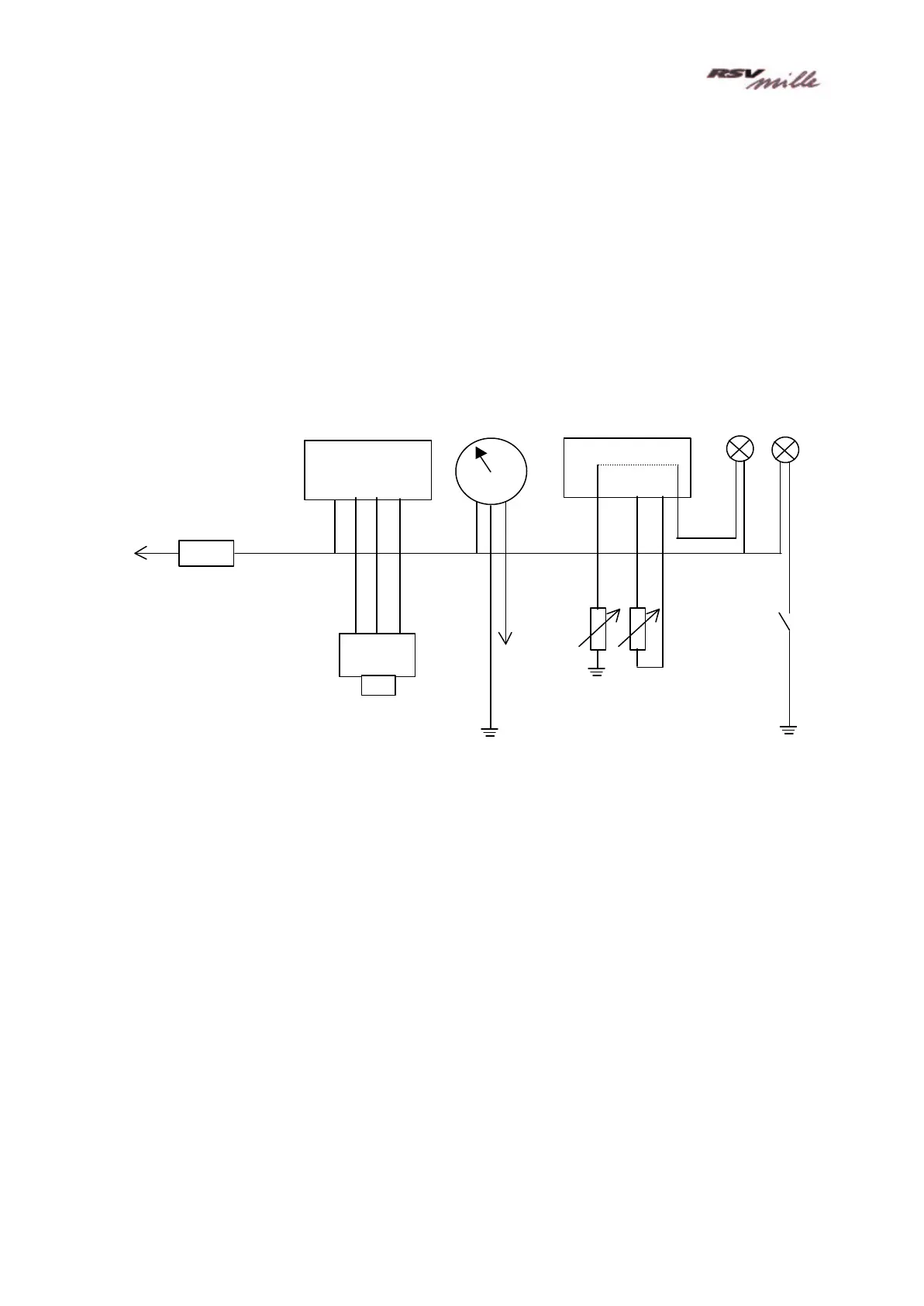

DASHBOARD ELECTRIC WIRING DIAGRAM:
LEGENDA:
D=15 AMP FUSE
53= FUEL WARNING LIGHT SENSOR
54= OIL PRESSURE SWITCH
55= WATER TEMP. THERMISTOR
56= SPEED SENSOR
57= FUEL WARNING LIGHT
61= OIL PRESSURE WARNING LIGHT
64= REV COUNTER
65= MULTIFUNCTION DISPLAY
66= SPEEDOMETER
CHECK H20 TEMPERATURE INDICATOR
DISCONNECT THE THERMISTOR CONNECTOR
Connect the following resistors to the connector and check the display reading:
COLD: R=3000 ohm
60 Degrees (err10%) with R= 580 ohm
90 Degrees (err10%) with R= 245 ohm
If the readings are correct, check the thermistor in the same way as described for the H2O thermistor
57 61
6564
66
53 55
54
