SECTION 09
PBTL SYSTEM
The PBTL system on the RSV 1000 reduces the ‘braking’ torque transmitted by the engine during deceleration.
OPERATING PRINCIPLE:
Line 1 is connected to the intake passage whereas line 2 – downstream of the retaining valve – is connected to
the airbox via the throttle valve. Line 3 links line 2 to the airbox when the throttle valve opens to an angle greater
than 10-12 degrees.

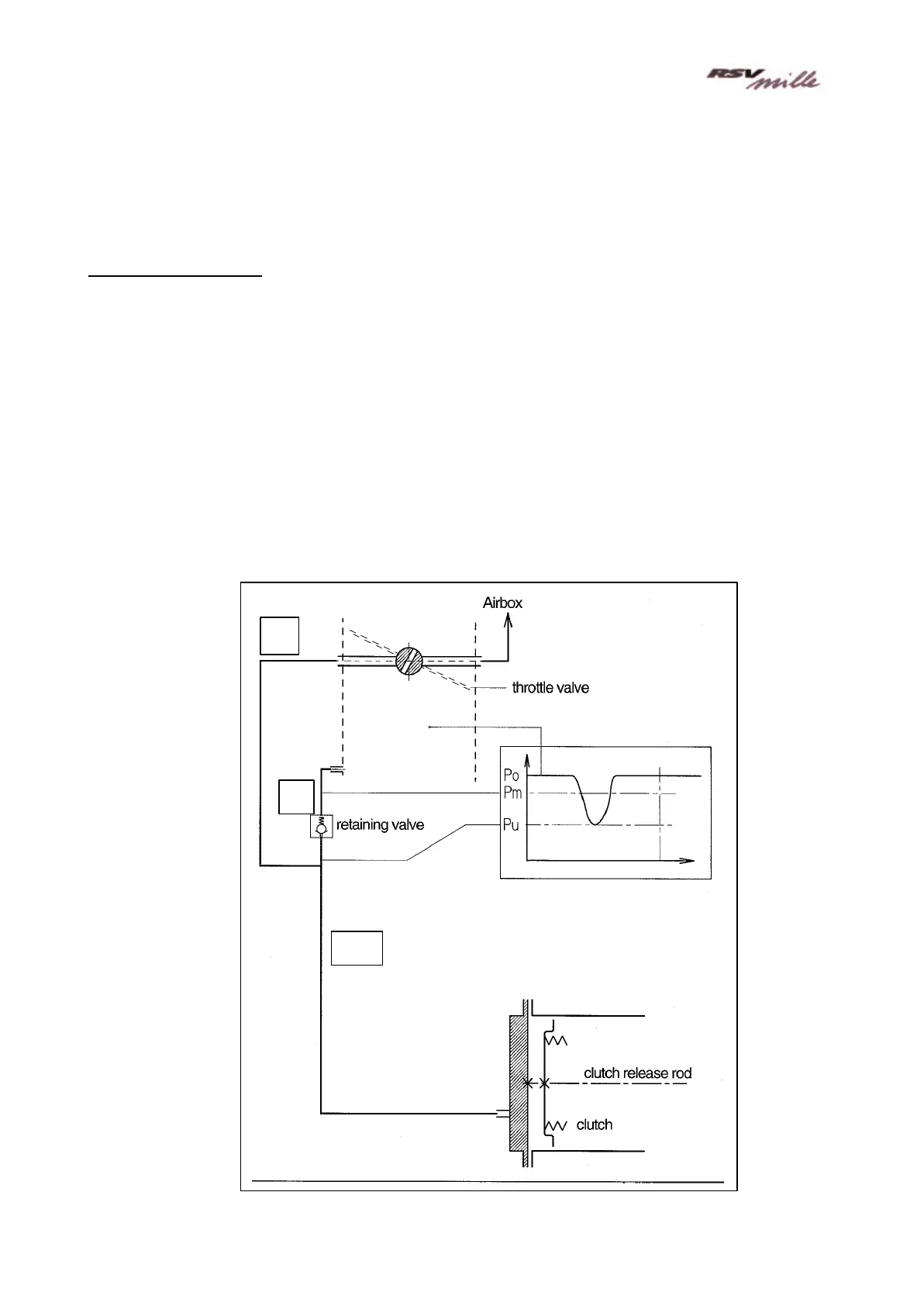

During deceleration, the system configuration is as shown in the figure.
The negative pressure in the intake passages is transmitted to the clutch membrane via line 1+2.
The ‘retaining’ valve (non-return) comes into play and stabilises the pressure in the line.
Consequently, the clutch discs slip and reduce the torque.
During acceleration (throttle valve >12°), the valve, connected on the throttle unit axis, links up line 2 with the
airbox, thus cancelling out the pressing effect on the clutch unit and taking the clutch pack back to its original
position.
2
3
1
