• Remove the freezer handle tabs by pushing them downwards from their slots in
the door plate.
12.1.3. Kuppers handle group / Round profile aluminum handle group
Service numbers used:
1422 Fridge/Freezer handles
876 intermediate elements (ensuring the connection between the handle and the door)
277 intermediate element plugs
Blomberg handle group

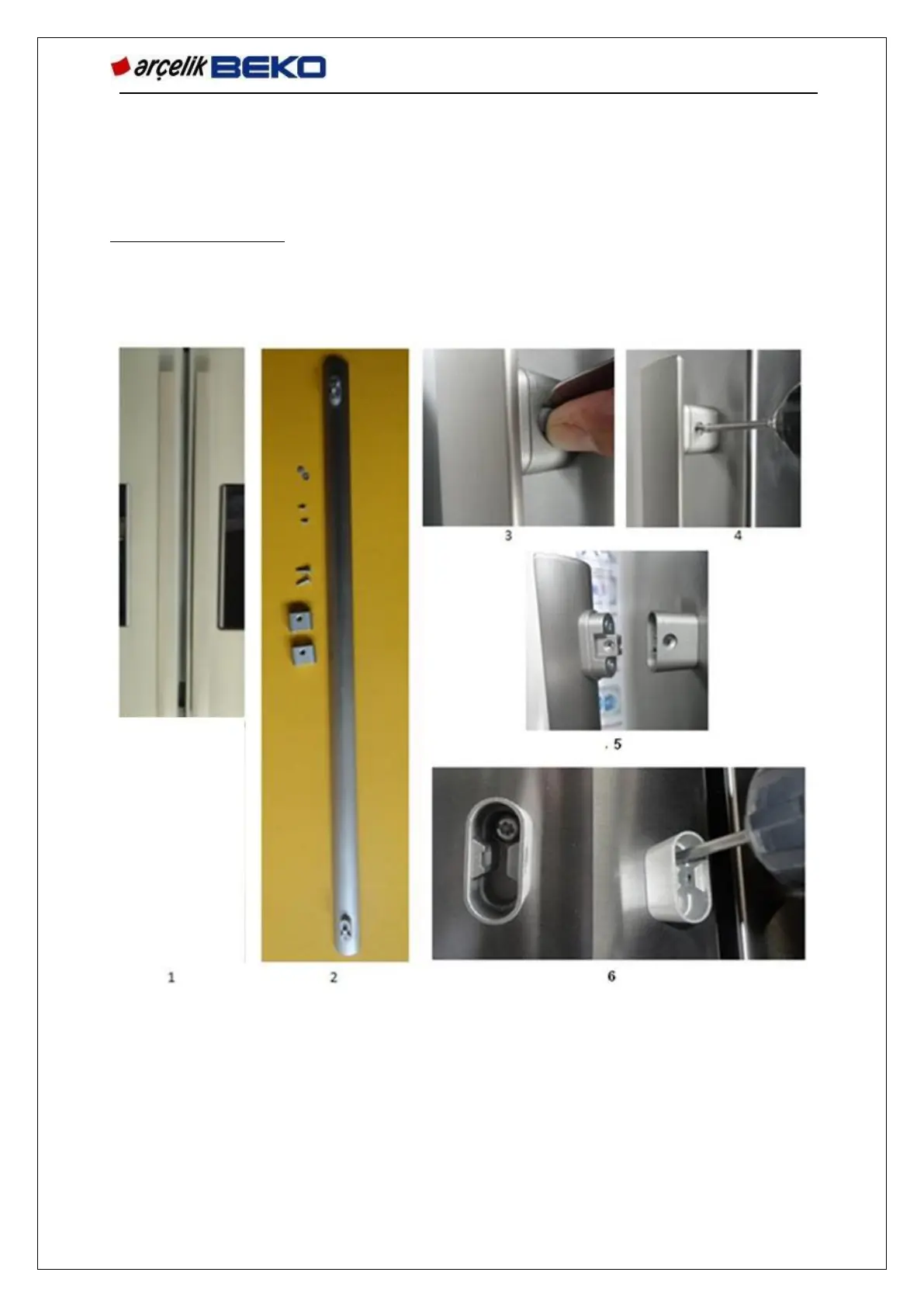

• Blomberg handle group is as illustrated in Picture 1.
• Remove the 4 screw plugs with a knife, etc.
• Remove 4 pcs of 3.9x20 PT countersunk screws used in the fridge and freezer handles
by attaching the star bit to the chargeable gun, as shown in Picture 4.
• Remove 4 pcs M4 spiral form screws used in the intermediate element by attaching the
torque bit to the chargeable gun, as shown in Picture 5.
