SBS COSMOS REFRIGERATOR 07.11.2018 / REV NO: 01
71
Sensitivity: Public
3 4
 Remove socket connections shown in Picture 2.
 Remove M 4x5.5 screw fixing the earth cable by attaching the star bit to the chargeable
gun.

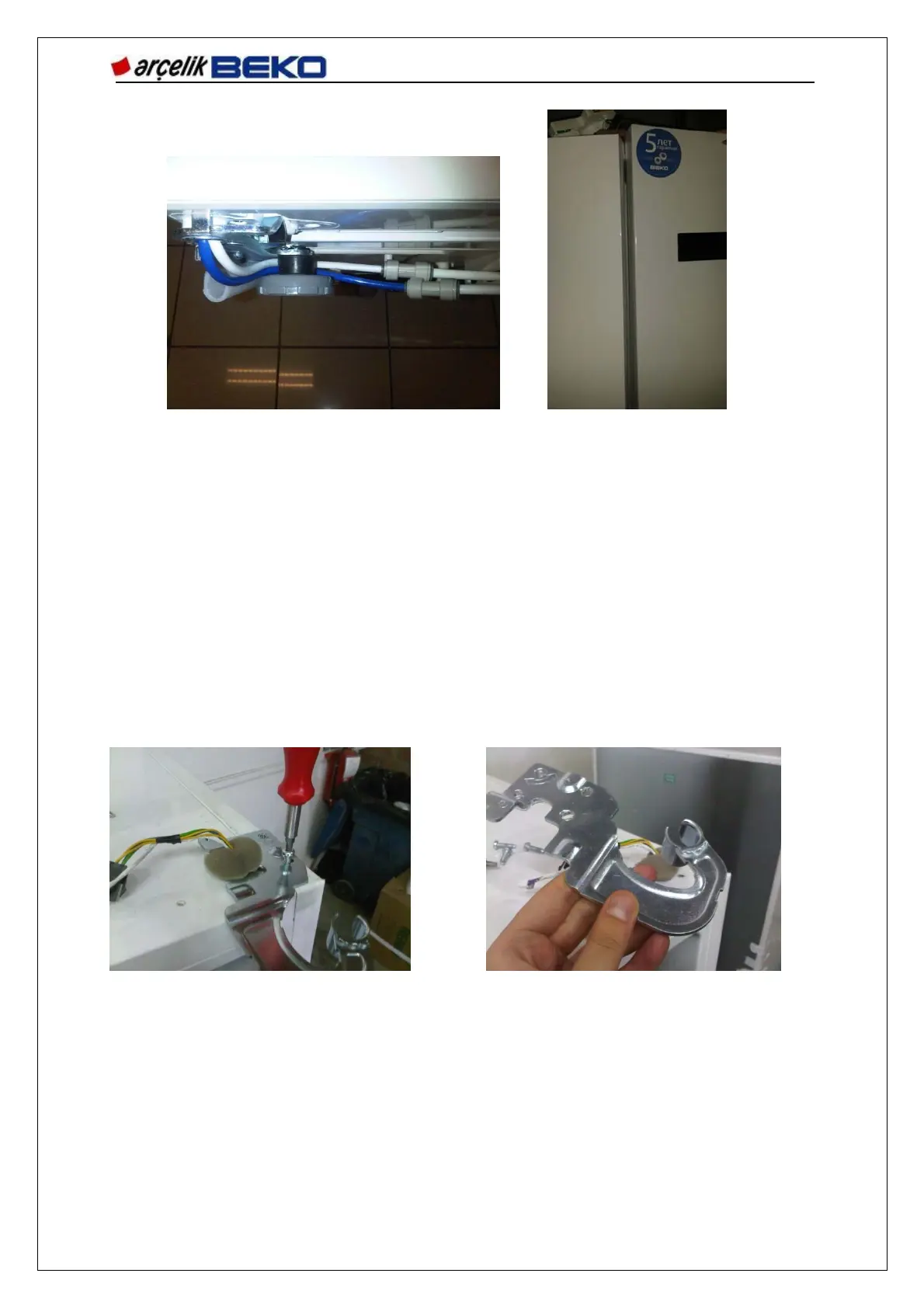

 Remove the water hose connections at the bottom of cabin in Picture 3. (2 water pipes
are used in the products with icematic on freezer left door only).
 Remove 3 pcs of M 5x18 spiral screws of the upper hinge by attaching a torque bit to
the chargeable gun.
 Lift the door upwards as shown in Picture 4 to remove it from the lower hinge pin.
12.18. Fridge right door
Used service number: 967
1 2
 Remove the socket connections shown in Picture 1.
 Remove M 4x5.5 screw fixing the earth cable by attaching the star bit to the chargeable
gun.
 Remove 3 pcs of M 5x18 spiral screws of the upper hinge by attaching a torque bit to
the chargeable gun.
 Lift the door upwards as shown in Picture 3 and remove it from the middle hinge pin.
