CH2
規格
Specificat
ion
Origi
nal
12
2.2

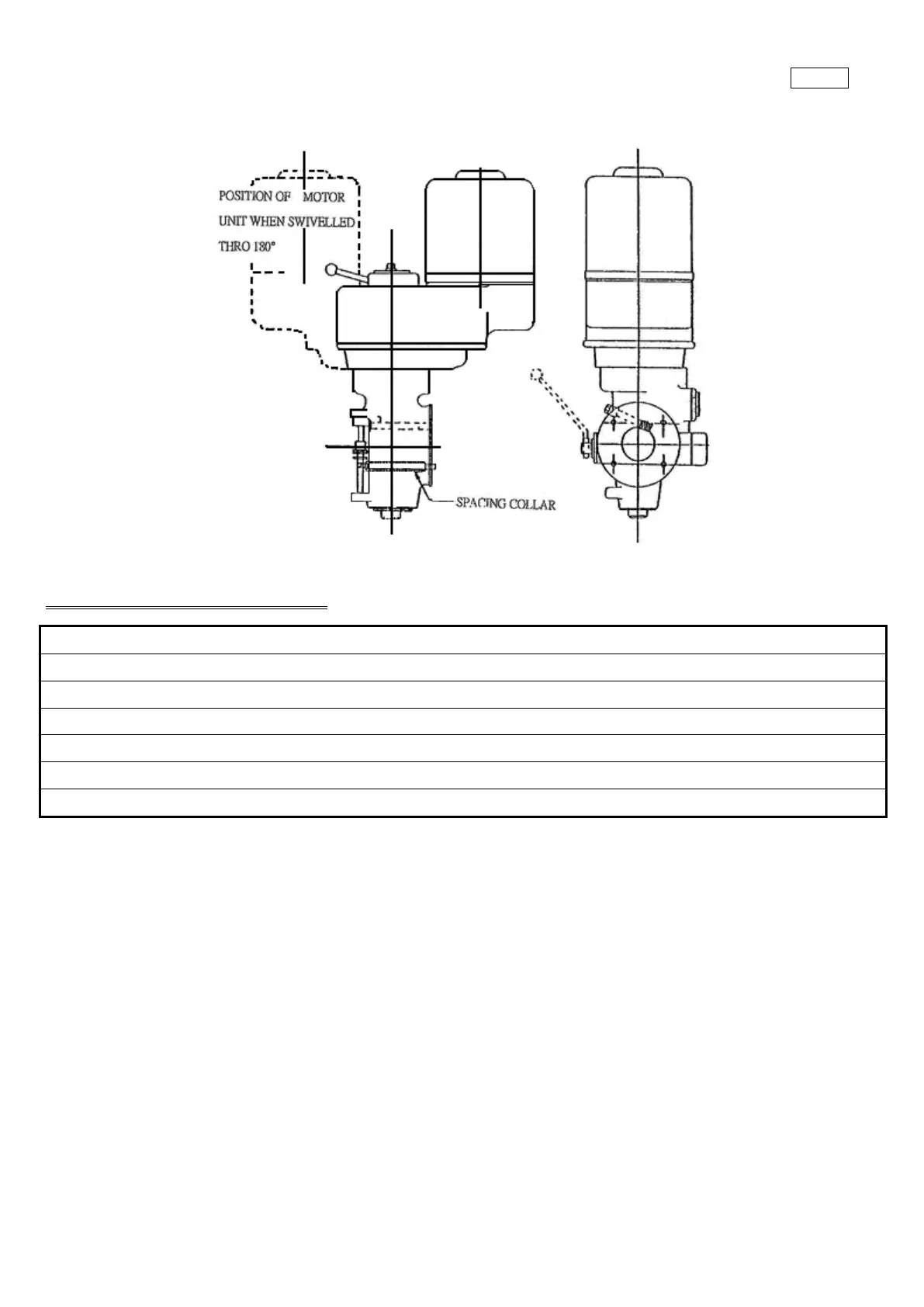

頭部
Head
頭部規格
Specification of h
ead
主軸迴轉數
(
轉
/
每分
) Spindle speeds rpm (60 cycles) 80
135 210 325 660 1115 1750
2720
主軸一迴轉之自動進給量
Power feed per spindle revolution .0017”
.0032” .0053” (.04 .08 .13mm)
主軸端孔斜度
Spindle taper R8 or NST#30
主軸昇降套之進給行程
Quill travel 5”
(127mm)
夾持範圍
Collet capaci
ty 1/8” to 3/4” (3mm 19mm)
馬達馬力數
HP of Motor 2
重量
Weight 183 lbs (
83 kgs)
14
16
Table of Contents
Default Chapter
2
Table of Contents
2
CH1 機型 Model
4
CH2 規格 Specification
6
機體 Basic Machine
7
頭部 Head
15
CH3 安裝 Installation
16
機器之搬動 Handing
17
機器之清潔 Cleaning
19
場地佈置圖 Floor Plan
20
地基、電源供給 Foundation Power Supply
24
水平校正 Leveling
29
機器之歸零校正 Initial Setting
30
CH4 機器各部份名稱 Legend
31
CH5 操作 Operation
34
起動、停車 Starting Stopping
35
機器控制 Machine Controls
36
頭部控制 Head Controls
37
CH6 潤滑 Lubrication
41
頭部 Head
42
機體 Basic Machine
43
CH7 預防保養 Preventive Maintenance
44
CH8 保養 Maintenance
46
簡介 Introduction
47
頭部頂座 Head Top Housing
48
頭部 Head
50
前後螺桿調整 Cross Screw Adjustment
55
工作台螺桿調整 Table Screw Adjustment
56
調整楔調整 Gib Strip Adjustment
57
CH9 故障排除 Trouble-Shooting
59
檢驗規格表 Inspection Chart
65
CH10 零件圖 Spare Parts Drawing
68
頭部頂座 Head Top Housing
69
頭部組件 Head Assembly
79
機身組件 Basic Machine Assembly
85
螺桿組件 Leadscrew Assembly
93
CH11 切削條件 Cutting Conditions
98
銑削資料 Milling Cutting
99
銑齒 Tooth Milling
100
搪孔資料 Boring
101
鑽孔資料 Drill Cutting
102
