CH3
安裝
Installation
Origi
nal
26
3.5
水平校正
Leveling
(1)

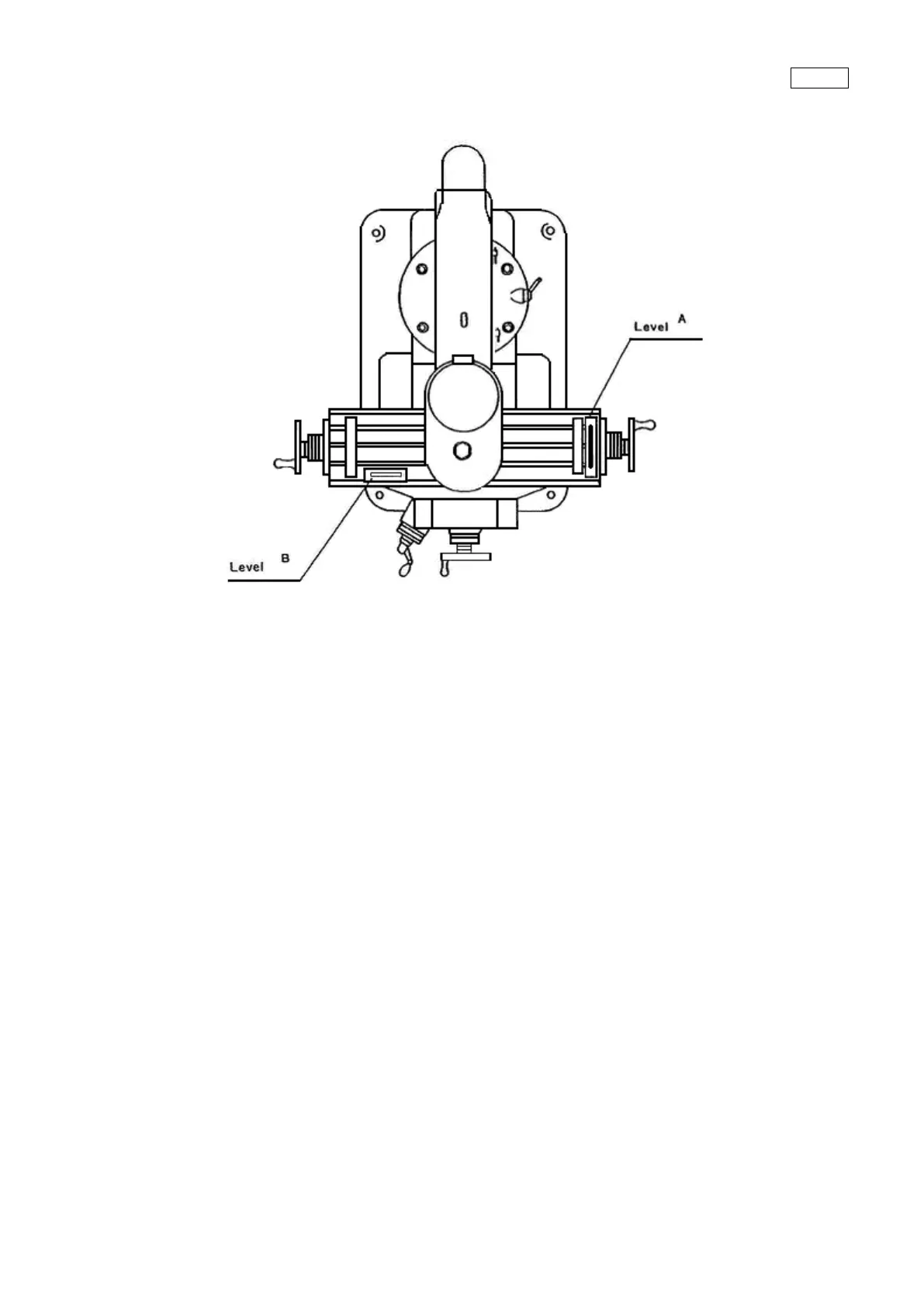

用水平儀放在工作台上，如上圖示。
Putting le
vels on
the table as i
llustrated.
(2)
檢查水平儀
A
、
B
的水平，其允許值
0.06mm/M
。
Check the level
A and B. The al
lowance approxi
mate 0.06mm/M.
(3)
調整時用墊片墊入底床，調整完畢鎖緊固定螺栓。
Putting the shims
under the bad if nec
essary, lock the
anchor bolt.
28
30
Table of Contents
Default Chapter
2
Table of Contents
2
CH1 機型 Model
4
CH2 規格 Specification
6
機體 Basic Machine
7
頭部 Head
15
CH3 安裝 Installation
16
機器之搬動 Handing
17
機器之清潔 Cleaning
19
場地佈置圖 Floor Plan
20
地基、電源供給 Foundation Power Supply
24
水平校正 Leveling
29
機器之歸零校正 Initial Setting
30
CH4 機器各部份名稱 Legend
31
CH5 操作 Operation
34
起動、停車 Starting Stopping
35
機器控制 Machine Controls
36
頭部控制 Head Controls
37
CH6 潤滑 Lubrication
41
頭部 Head
42
機體 Basic Machine
43
CH7 預防保養 Preventive Maintenance
44
CH8 保養 Maintenance
46
簡介 Introduction
47
頭部頂座 Head Top Housing
48
頭部 Head
50
前後螺桿調整 Cross Screw Adjustment
55
工作台螺桿調整 Table Screw Adjustment
56
調整楔調整 Gib Strip Adjustment
57
CH9 故障排除 Trouble-Shooting
59
檢驗規格表 Inspection Chart
65
CH10 零件圖 Spare Parts Drawing
68
頭部頂座 Head Top Housing
69
頭部組件 Head Assembly
79
機身組件 Basic Machine Assembly
85
螺桿組件 Leadscrew Assembly
93
CH11 切削條件 Cutting Conditions
98
銑削資料 Milling Cutting
99
銑齒 Tooth Milling
100
搪孔資料 Boring
101
鑽孔資料 Drill Cutting
102
