Argo 2S User Manual

CH8 保養 Maintenance Original
45
8.2 頭部頂座 Head top housing

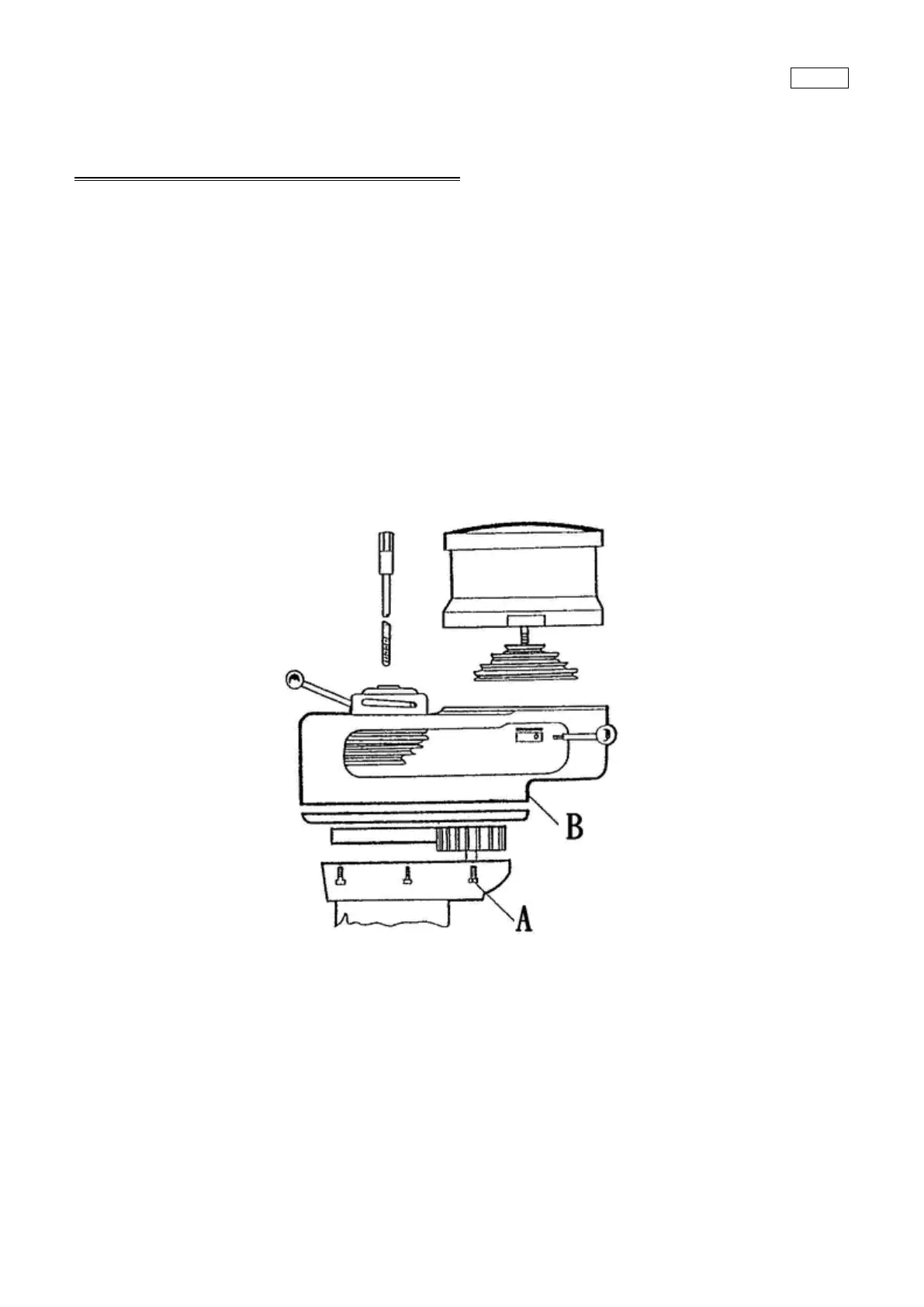

皮帶更換步驟 BELT REPLACEMENT
(1) 關掉電源
(2) 取下拉桿
(3) 拆下馬達
(4) 將昇降套降至最下方
(5) 取下六個螺絲 A
(6) 取下皮帶箱 (輕輕敲動使其脫離
連結銷)
(7) 此時即可更換皮帶
(1) Isolate machine.
(2) Remove drawbar.
(3) Remove motor.
(4) Lower quill to full extension.
(5) Remove 6 screws A.
(6) Remove belt housing B, tap to
withdraw from dowels.
(7) The belts may now be changed.
