Argo 2S User Manual

CH8 保養 Maintenance Original
53
8.5 工作台螺桿調整 Table screw adjustment

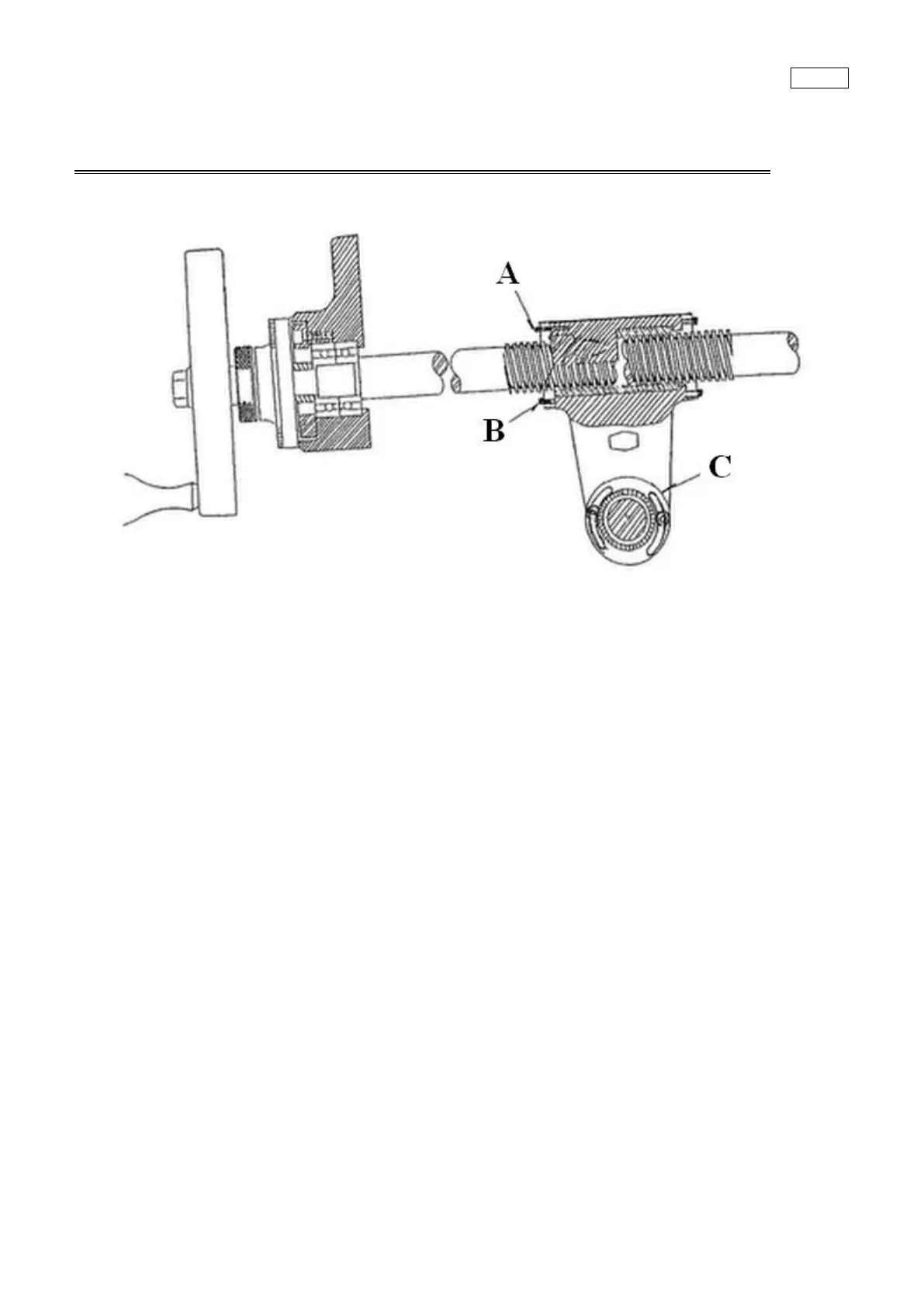

左右進給螺桿間隙調整法 TABLE SCREW BACKLASH ADJUSTMET
(1) 將工作台移至左方
(2) 螺絲 A 、B 旋出 1/2 轉
(3) 順時針旋轉螺帽 C，直 至 產 生 間 隙
0.04”或 0.05”為止
(4) 最後將固定螺絲 A、B
(1) Crank the table to the left.
(2) Withdraw screw A、B 1/2 a turn
(3) Turning nut C clockwise until 0.04”
or 0.05” space is obtained
(4) Finally lock screw A and B
