Argo 2S User Manual

CH9 故障排除 Trouble-Shooting Original
62

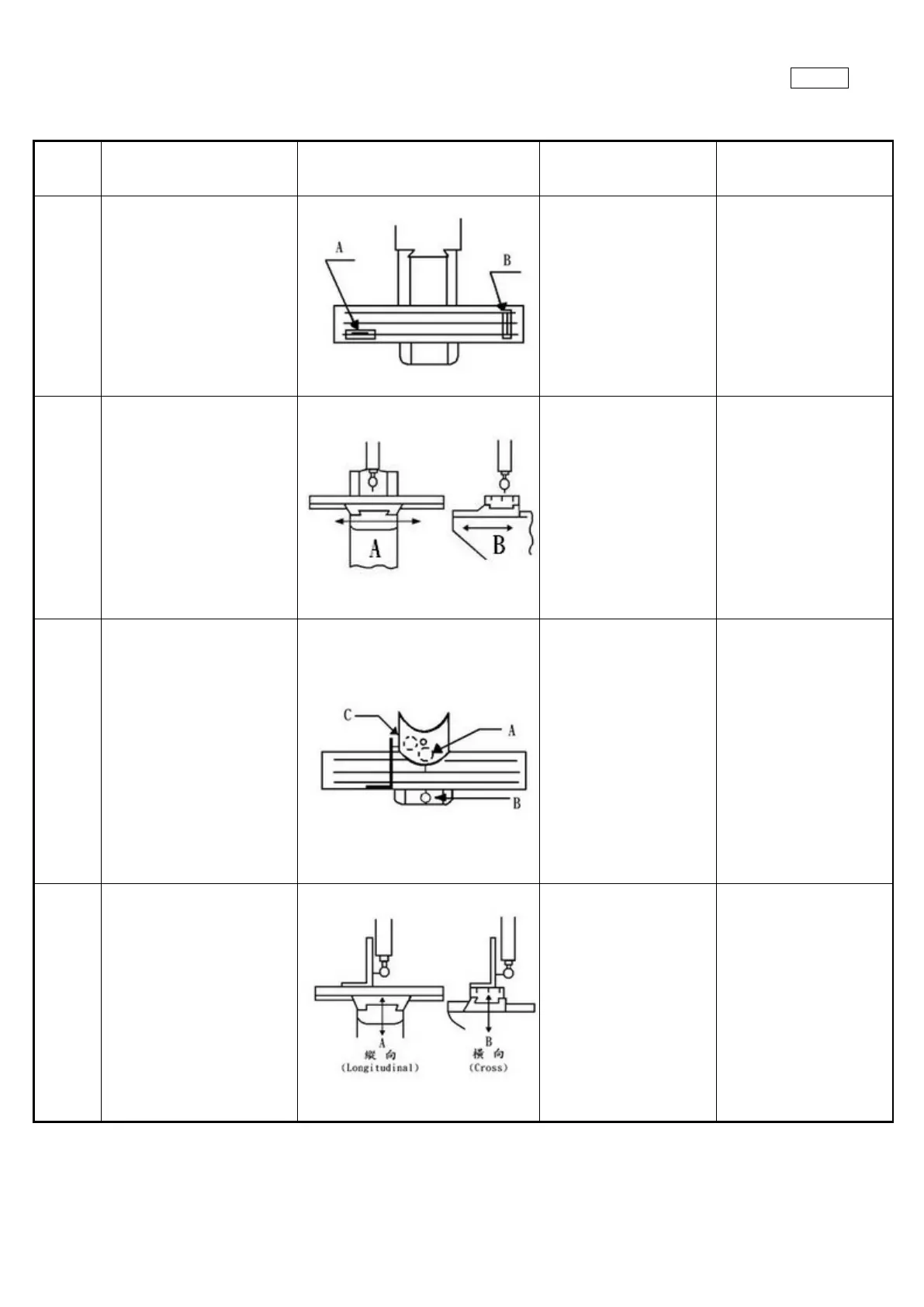

9.1 檢驗規格表 Inspection chart
番號
No.
檢查項目
Inspection Items
圖示
Illustrations
容許差
Tolerances
測定值
Measurements
1
工作台面水平
Plane of surface
even level.
Approx. level
0.06mm/m
0.006mm/m
A. _______
B. _______
2
工作台移動平行度
Surface parallel to
its movements.
A.
0.02mm/500mm
(0.0008”/20”)
B.
0.02mm/300mm
(0.0008”/12”)
A. _______
B. _______
3
T 槽側面與縱向移
動的平行度與橫向
移動的垂直度
T-slots, front edge
parallel to
longitudinal travel,
perpendicular to
cross travel.
0.02mm/300mm
(0.0008”/12”)
A T 槽 T-slots
_________
B 縱向 Front edge
_________
C 橫向 Cross
_________
4
昇降座上、下移動
與工作台的垂直度
Vertical movement
of knee square to
table surface.
0.002mm/300mm
(0.0008”/12”)
A. _______
B. _______
